PDF/Print Version: Epson EB-1460UT Projector

Brief Introduction

Beta 2.5

The Epson model EB-1460UT is an LCD projector with WUXGA 1920 x 1200 resolution and a contrast of 16000:1. The manufacturer specifies a lamp life of 10000 hours, which is over 13.7 years with a daily viewing time of 2 hours. Including an integrated media player with which files can be played directly. The horizontal and vertical keystone correction provides leeway when setting up. The model offers a microphone jack plug and 16W speakers, so no additional audio devices are required for presentations or training courses. An image width of up to 674 cm is possible, if the image width is smaller (we recommend max. 449 cm), rooms with residual light are also no problem. The projector offers an interactive whiteboard function for interactive training courses and presentations. A smartphone with MHL connection can be connected directly to the MHL/HDMI port and transmit a 1080p / 60 Hz image mirroring (screen mirroring) while the smartphone is being charged at the same time. Playing 1080P is also no problem for the projector. The projector was launched in 2017 and is no longer sold by the manufacturer, but is still very popular in our projector database.

Display Type

3 x 0,67" LCD TFT Panel mit MLA
WUXGA 16/9 Liquid Crystal Display with Micro Lense Array

Ansi-Lumen

Projector

4400

Screen

1956 Lux (200 cm Screen width)

Contrast

16000:1 full on/off

Black Level

0,2750 min. Lumen

0,122 min. Lumen

Offset

Resolution

WUXGA 1920 x 1200
2.304.000 Pixel

Video Modes

Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: Image (.jpg) Image (.bmp) Image (.gif ) Image (.png) Document or image (.pdf) Motion JPEG movie (.avi)

Application

Whiteboard | Training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens).

Light Source

300W UHE Lamp
Article Nr.: ELPLP92

Light Life

5000 h. 10000 h. in eco Mode

Operating Costs

56 cm (no Zoom)


	Lux:	1956 Lux
	Room light max.:	391 Lux
	Candela pro m²:	624 cd/m²
	Foot-Lamberts:	182 fL

Focus

Manual

Zoom

No Zoom

Objective

F=1,6 f=4,2mm

Throw Ratio

0,28:1

Audio

16W

Connections

2 x HDMI mit MHL in
DVI-D in
D-Sub 15 pin in und out
Mini Jack Audio in und out
Mikrofon in
RS232C
RJ45 in
USB Typ A,B

Ceiling Mounting

Yes, is possible.

Power

467W

Size WxHxD

367 x 155 x 375 mm (14,4"x6,1"x14,8") 21,33 L/dm³

Operating Noise

38 / 28 dB in Eco Mode

Key: 3 cm
Key: 3 cm	Without offset	Key: 3 cm
	Key: 3 cm

Weight

8,50 kg / 17,64 lbs.

Keystone

Vert.: +/-3°
Hori.: +/-3°

Illumination

Frequenz

H-sync: 15-92 kHz
V-sync: 50-85 Hz

Foot-Lamberts

182 fL / max. 674 cm screen width

624 cd/m²

Features

Full HD 1080P compatible

Direkt Power Off

Integrated Mediaplayer

Eco Mode

Kensington Slot

sRGB

Password protection

Remote control with mouse control

Lan network compatible.

Short-throw projector

Whiteboard function with two interactive pens.

Screen Mirroring

über HDMI MHL

In Comparison

The Epson EB-1460UT compared to others not current "Whiteboard" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

51 (From: 297)

Optional accessories

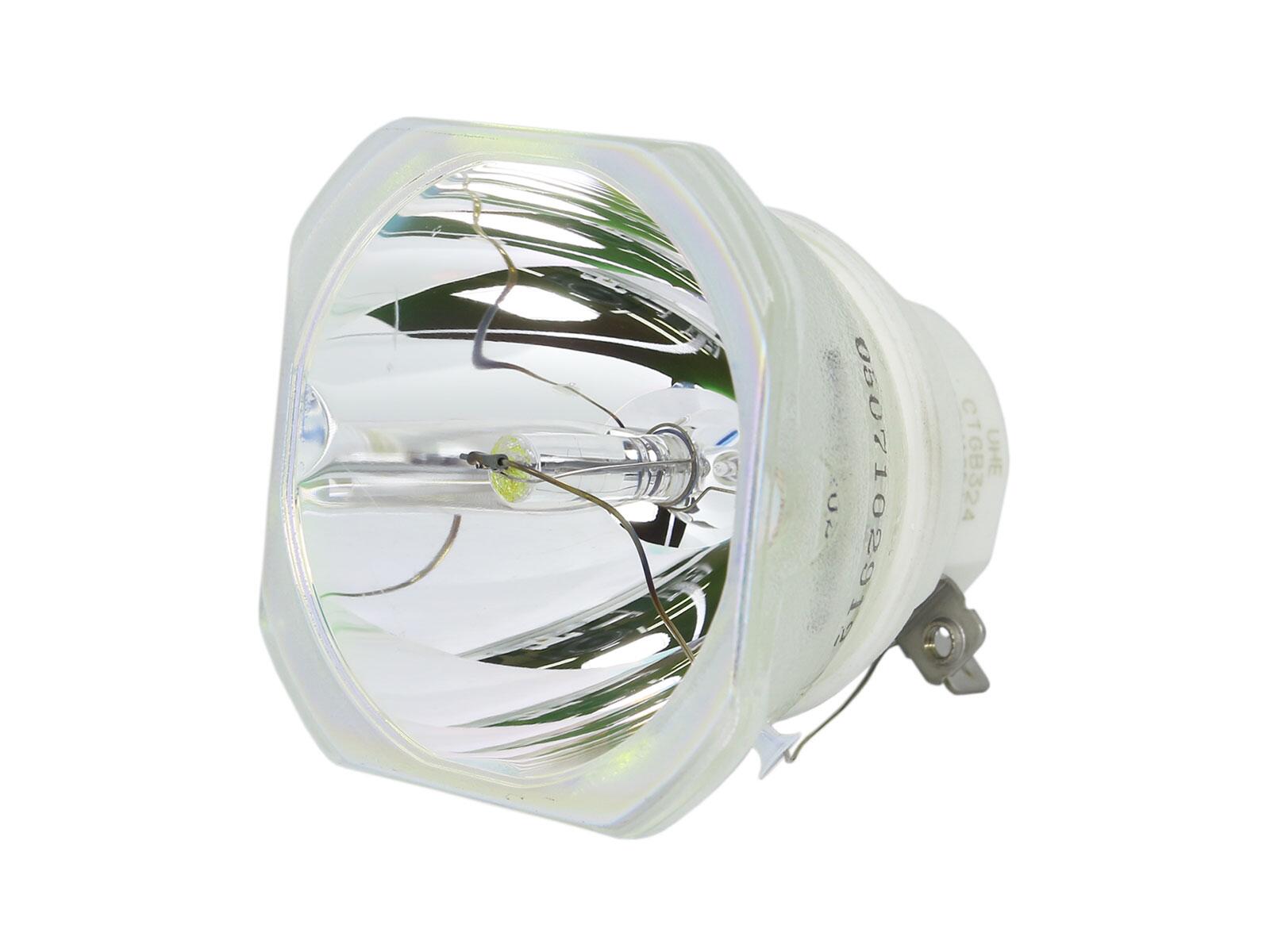

	Nackte Osram Lampe	NLMP24108	86,77 €

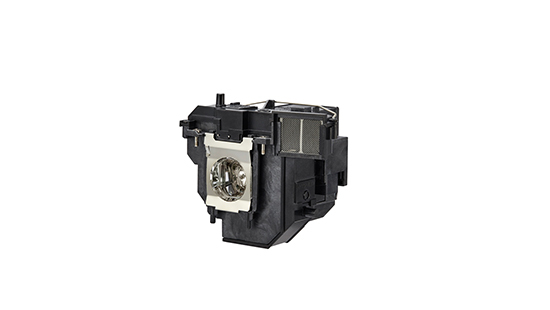

	Lampe Original	ELPLP92 / V13H010L92	103,83 €
	Kompatible Lampe	LMP-K24108	91,18 €
	Luftfilter Kompatibel	Alternative zu:ELPAF45 / V13H134A45	46,71 €
	Universal Fernbedienung	Fernb-uni-V3	22,31 €
	Luftfilter Original	ELPAF45 / V13H134A45	47,61 €
	Deckenhalterung 100-120	Halterung100	47,86 €

Status

2017 Discontinued (EOL) // Last update of the data: 2023-09-20
