Model Overview

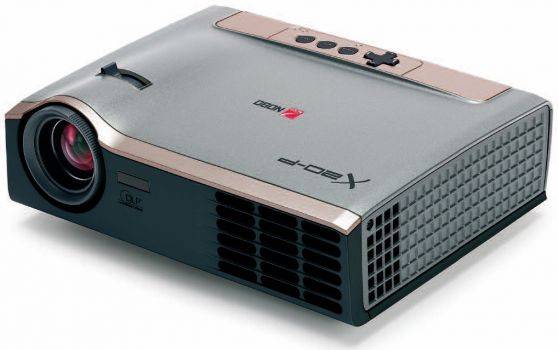

The projector NOBO X20P by ACCO operates as a DLP device with 2000 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 2500:1. According to ACCO, the included lamp lasts up to 3000 hours.
Looking at practical performance, up to 389 cm can be illuminated with 2000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 259 cm.
This model dates back to 2007 and is no longer part of ACCO's current product range.

Display Type

1 x 0,55" DC2 DDR DLP Chip
XGA 4/3 Ti Digital Light Processing Chip

Ansi-Lumen

Projector

2000 / 1600 im Eco Mode

Screen

667 Lux (200 cm Screen width)

Contrast

2500:1 full on/off

Black Level

0,8000 min. Lumen

0,267 min. Lumen

Offset

63,7% 21 cm over screen top edge →

SCREEN

+ Projector

Resolution

XGA 1024 x 768
786.432 Pixel
SXGA+ 1400 x 1050 compressed

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p

Application

Micro-Portabel | Mobile presentations and external training.
Medium screen width or rooms with little light, max. 100 lumens.

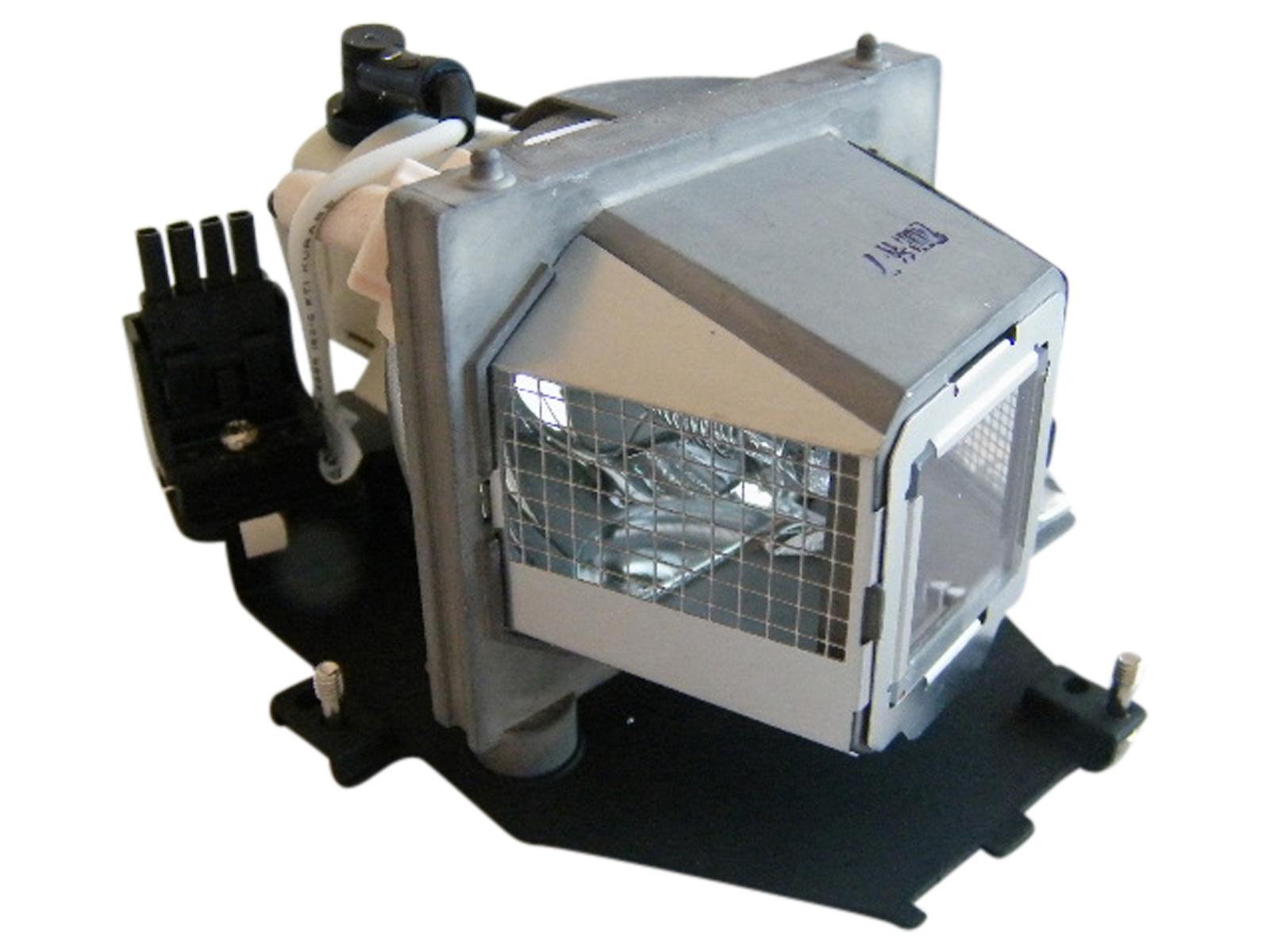

Light Source

200W P-VIP Lamp
Article Nr.: SP.82Y01GC01

Order Lamp
56,38 - 88,79 €

Light Life

3000 h. 4000 h. in Eco Mode

Operating Costs

Calculated brightness quality Perfect

390 - 426 cm


	Lux:	667 Lux
	Contrast:	2500:1
	Candela pro m²:	212 cd/m²
	Foot-Lamberts:	62 fL

96 cm

•

Focus

Manual

Zoom

Manual 1,10

Objective

F=2,35-2,47 f=21,83-23,81 mm

Throw Ratio

1,95-2,13:1 show

Audio

1W Mono

Connections

D-sub 15pinin
S-Video in
Cinch Video in
Mini Jack in
USB in

Ceiling Mounting

Yes, is possible.

Power

195W / 10W standby

Size WxHxD

216 x 62 x 169 mm (8,5"x2,4"x6,7") 2,26 L/dm³

Operating Noise

36 / 33 dB in Eco Mode

Key: 208 cm

	Key: 16 cm

Weight

1,20 kg / 2,65 lbs.

Keystone

Vert.: +/-16°

Illumination

85%

Frequenz

V-sync: 31,5-80 Hz

Foot-Lamberts

62 fL / max. 389 cm screen width

Candela m²

212 cd/m²

Features

Eco Mode

Kensington Slot

Password protection

Remote control with laser pointer und mouse control

Digital Zoom.

De-interlacer with 3:2 2:2 pull down.

Screen Mirroring

In Comparison

The ACCO NOBO X20P compared to others not current "Micro-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

240 (From: 393)

Optional accessories
	Osram bulb only	NLMP16492	70,36 €
	lamp ruby	Ruby-LMP16492	88,79 €
	lamp Original	SP.82Y01GC01	EOL €
	Compatible lamp	LMP-K16492	56,38 €
	Universal Remote	Fernb-uni-V3	22,31 €
	Ceiling Mount 100-120	Halterung100	47,86 €

Status

2007 Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Product Sheet english HC

Popular Alternatives

2000 ANSI-Lumen


Model	S31	Elfin Flip Laser	Elfin Flip 4K	YG381 Gimbal	GC357C Lite
Ansi-Lumen	2000	2000	2000	2000	2000
Specifications	HDTV LED WLAN MP	HDTV Laser WLAN	HDTV LED WLAN	HDTV LED WLAN	HDTV LED WLAN
Compare	Compare	Compare	Compare	Compare	Compare

All: 4.5 from 5 Stars 2 Reviews

Autor: boomcat 06.08.11

4 Stars

Rotate picture?

HELP!
Does the projector have this function to rotate the picture??? Or not????
Unfortunately we can‘t find anything under "Control"
Thanks in advance!

Autor: Hanky 26.08.09

5 Stars

Professional wanted !

Hello, can anyone tell me whether this projector is suitable for gaming "for insensitive people"?

Would be glad of a professional answer :D^^

Gruss Hanky
