aao YG681

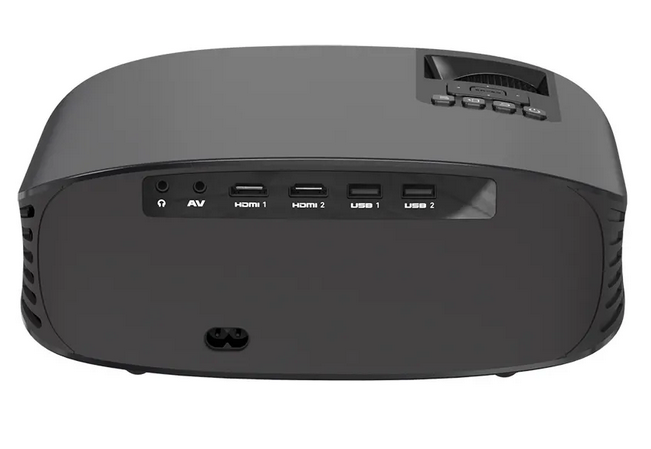

Image aao YG681
Customer review
Offer Ads
Discover the projector on Amazon. Now!
Model Overview Known as the YG681, this LED-LCD projector by aao features basic specs of 350 ANSI lumens and a HDTV 1920 x 1080 resolution. The LED unit of this model is rated for up to 30000 hours of runtime. With four hours of daily operation, this corresponds to a period of 20.5 years.
For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups.
A look at the light output reveals: The 350 ANSI lumens are sufficient to illuminate an image width of up to 190 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 127 cm.
For media input, video signals up to 1080P and 4K are supported. Also on board is a local media player that allows reading and playing content directly from storage media. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type 1 x 4,5" LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
350
Screen
156 Lux (200 cm Screen width)
Contrast - -
Black Level - -
Offset ~0,0% Centre of the screen →
SCREEN
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
UHD (4K2K) 3840 x 2160 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p
Media player formats: Office Dateien
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Very narrow picture width and rooms with very little light.
Light Source LED
Light Life 30000 h.
Operating Costs 0,00 € LED
The projection is okay. A smaller screen width would result in a brighter image.
270 cm (no Zoom)
Lux: 156 Lux
Contrast:
Candela pro m²: 48 cd/m²
Foot-Lamberts: 14 fL
0 cm

Screen width:cm
          Room:
•
Focus Manual
Zoom No Zoom
Objective -
Throw Ratio 1,35:1
Audio 1 x 5W
Connections 2x HDMI in
AV in
2x USB in
Audio Mini Jack out
Bluetooth 5.2
Ceiling Mounting Yes, is possible.
Size WxHxD 245 x 93,8 x 191,9 mm (9,6"x3,7"x7,5") 4,35 L/dm³
Power -
Keystone
Key: 270 cm

Key: 270 cm
+
+
SCREEN

Key: 270 cm
Key: 270 cm

Operating Noise -
Weight 1,56 kg / 2,2 lbs.
Keystone Vert.: +/-45°  ja
Hori.: +/-45°
Illumination -
Frequenz -
Foot-Lamberts 14 fL / max. 190 cm screen width
Candela m² 48 cd/m²
Features Full HD 1080P
Lens Shift Function geschätzt
Integrated Media Player
Automatic and Manual Vertical Keystone Correction
W-Lan Netzwerk kompatibel.
Android 9.0
Auto 4P Keystone
Screen Mirroring Miracast, Airplay
In Comparison
The aao YG681 compared to others current "Standard-Portabel" projectors.
Ansi-Lumen:
2 Weight:
99
Contrast: - dB: -
Black level: - Power cons.: -
Picture Total Points:- Projector Total Points:-
Popularity Top 100
1 popularity points in May 1 popularity points in June 2 popularity points in July 2 popularity points in August 5 popularity points in September 3 popularity points in October
Points:
3
Ranking: 956 (From: 1044)
Live-Trend (Last 3 days)   LiveLIVE
Points: 3 ±0% Trend
Status 2024 Current model // Last update of the data: 2026-06-09
Data
Product Sheet english HC

Projektor aao YG681 Projektor aao YG681 Projektor aao YG681
