ASK C80

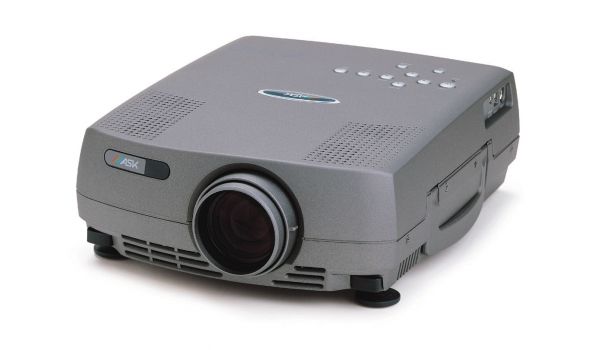

Image ASK C80
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The ASK C80 is a LCD projector offering 1200 ANSI lumens, a contrast of 450:1 and a resolution of SVGA 800 x 600. According to ASK, the included lamp lasts up to 2000 hours.
A look at the light output reveals: The 1200 ANSI lumens are sufficient to illuminate an image width of up to 302 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 201 cm.
The model is currently no longer actively offered on the market by the manufacturer.
Display Type       3 x 0,9" LCD TFT Panel
      SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 1200
Screen
 400 Lux (200 cm Screen width)
Contrast 450:1 full on/off 450:1 full on/off
Black Level 2,6667 min. Lumen 0,895 min. Lumen
Offset -
Resolution SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes PAL, PAL M, PAL N, SECAM, NTSC 3.58/4.43
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 150W UHP Lamp
Article Nr.: LAMP-026
Order Lamp
62,15 - 101,61 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Good (1.8)
394 - 514 cm
Lux: 400 Lux
Contrast: 450:1
Candela pro m²: 127 cd/m²
Foot-Lamberts: 37 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,3
Objective F=1,8-2,1 f=36-47 mm
Throw Ratio 1,97-2,57:1 show
Audio 2 x 1W
Connections DVI-D
2 x D-sub 15pin in 1 x out
Cinch Video in
Cinch Stereo in und out
S-Video in
Mini Jack
Maus Port
Ceiling Mounting Yes, is possible.
Power 220W
Size WxHxD 250 x 98 x 340 mm (9,8"x3,9"x13,4") 8,33 L/dm³
Operating Noise 34dB
Key: 69 cm

Without offset

Key: 69 cm
Weight 3,40 kg / 7,5 lbs.
Keystone Vert.: +/-10°
Illumination -
Frequenz H-sync: 15,0-100,0 kHz
V-sync: 43-130 Hz
Range max.: 160 MHz
Foot-Lamberts 37 fL / max. 302 cm screen width
Candela m² 127 cd/m²
Features -
Screen Mirroring -
In Comparison
The ASK C80 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
13 Weight:
84
Contrast:
1 dB:
38
Black level:
90 Power cons.:
98
Picture Total Points:35 Projector Total Points:73
Popularity Top 100
0 popularity points 9 popularity points 7 popularity points 1 popularity points 1 popularity points 5 popularity points
Points:
5
Ranking: 2386 (From: 7737)
Optional accessories
Philips bulb only NLMP39872,47 €
lamp ruby Ruby-LMP398101,61 €
lamp OriginalLAMP-026EOL €
Compatible lamp LMP-K311362,15 €
Universal Remote Fernb-uni-V322,31 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status - Discontinued (EOL) // Last update of the data: 2026-06-09
