Asus B1MR

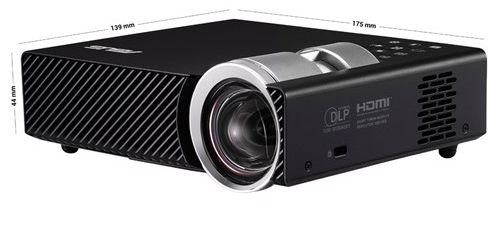

Image Asus B1MR
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview As a projector for the Micro-Portabel sector, the Asus B1MR is equipped with 900 ANSI lumens, a WXGA 1280 x 800 resolution and a contrast of 10000:1. An LED lifespan of 30000 hours is noted in the data sheet for this model, covering an estimated 20.5 years based on a 4-hour daily runtime.
Looking at practical performance, up to 305 cm can be illuminated with 900 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 203 cm.
For media input, video signals up to 1080P are supported. Also on board is a local media player that allows reading and playing content directly from storage media.
This model dates back to 2016 and is no longer part of Asus's current product range.
Display Type 1 x 0,45" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
900
Screen
360 Lux (200 cm Screen width)
Contrast 10000:1 10000:1
Black Level 0,0900 min. Lumen 0,036 min. Lumen
Offset 55% 6 cm over screen top edge →
SCREEN
+ Projector
Resolution WXGA 1280 x 800
1.024.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Media player formats: MP3, WMA, OGG, WAV, JPEG AVI, BMP, GIF
3D Compatibility Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready)
Application Micro-Portabel | Small mobile presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source LED
Light Life 30000 h.
Operating Costs 0,00 € LED
Calculated brightness quality Good (2.1)
180 cm (no Zoom)
Lux: 360 Lux
Contrast: 10000:1
Candela pro m²: 113 cd/m²
Foot-Lamberts: 33 fL
69 cm


Screen width:cm
          Room:
•
Focus Manual
Zoom No Zoom
Objective -
Throw Ratio 0,9:1
Audio 2 x 2W

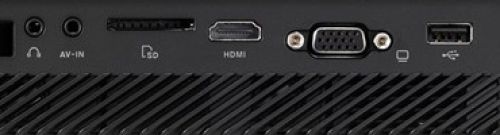

Connections HDMI in
D-sub 15pin in
Mini Jack Audio out
USB
SD Karte
AV in
Ceiling Mounting Yes, is possible.
Size WxHxD 175 x 44,5 x 139 mm (6,9"x1,7"x5,5") 1,07 L/dm³
Power 85W
Keystone

Not
possible
+
+
SCREEN

Not
possible

Operating Noise 32 / 28 dB in Eco Mode
Weight 0,90 kg / 0 lbs.
Keystone Vertical automatic
Illumination -
Frequenz H-sync: 31,5-91,1 kHz
V-sync: 50-85 Hz
Foot-Lamberts 33 fL / max. 305 cm screen width
Candela m² 113 cd/m²
Features Integrated Media Player
Eco Mode
Automatic and Manual Vertical Keystone Correction
Kensington Slot
Optional W-Lan Netzwerk kompatibel.
Short Throw Projector
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Asus B1MR compared to others not current "Micro-Portabel" projectors.
Ansi-Lumen:
22 Weight:
43
Contrast:
42 dB:
50
Black level:
45 Power cons.:
79
Picture Total Points:36 Projector Total Points:57
Popularity Top 100
1 popularity points in May 1 popularity points in June 6 popularity points in July 8 popularity points in August 15 popularity points in September 16 popularity points in October
Points:
16
Ranking: 165 (From: 394)
Live-Trend (Last 3 days)   LiveLIVE
Points: 22 +6% Trend
Status 2016 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Asus Website
Product Sheet english HC
User Manual english (8.79 MB)
