Awol Vision LuxVision


Release October 2026

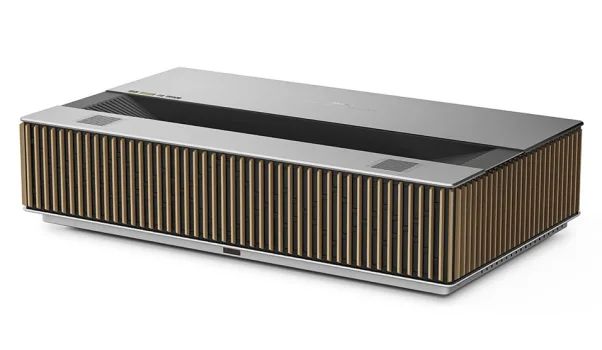

Image Awol Vision LuxVision
Customer review
Offer Ads
Discover the popular projector on Amazon.
Model Overview The LuxVision model from Awol Vision combines DLP technology in the Short Distance sector with 7500 ANSI lumens, a contrast of 10000:1 and a native UHD (4K2K) 3840 x 2160 resolution. The laser technology ensures a specified light source lifespan of up to 25000 hours. Daily use of 4 hours makes an operational lifespan of over 17.1 years possible.
For distortion-free image alignment, the projector offers both a lens shift function and keystone correction. The amount of leeway the lens provides can be checked in the Projector Calculator. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 36 cm.
To ensure objective comparability, an approximate ANSI lumen value was calculated based on the ISO lumen values. Looking at practical performance, up to 754 cm can be illuminated with 7500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 503 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. Additionally, thanks to Google TV, the model is network-capable and can be used without external playback devices. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. Thanks to support for Miracast, Airplay and DLNA, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen.
Display Type 1 x 0,47" SST DMD DLP Chip, Dual DLPC 8545
HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
~7500 / 6000 ISO Lumen
Screen
3333 Lux (200 cm Screen width)
Contrast 10000:1 nativ 10000:1 nativ
Black Level 0,7500 min. Lumen 0,333 min. Lumen
Lens shift Vert.: +76% --71%
 Lens shift
5%  6cm
+ Projector 24 cm over screen top edge.
Resolution UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready)
Application Short Distance | Gaming | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source RGB Triple Laser
Light Life 25000 h.
Operating Costs 0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
36 cm (no Zoom)
Lux: 3333 Lux
Contrast: 10000:1
Candela pro m²: 1062 cd/m²
Foot-Lamberts: 310 fL
86 cm



Screen width:cm
          Room:
•
Focus Automatic
Zoom No Zoom
Objective -
Throw Ratio 0,18:1
Audio -
Connections 3x HDMI 2.1 in
HDMI out
Displayport
USB-A 3.0
USB-A 2.0
USB-C in
Bluetooth 5.4
Ceiling Mounting -
Size WxHxD -
Power -
Lens shift

Shift: 86 cm

+
+
SCREEN


Shift: -80 cm

Operating Noise -
Weight -
Keystone Vertical automatic and horizontal
Illumination -
Frequenz -
Foot-Lamberts 310 fL / max. 754 cm screen width
Candela m² 1062 cd/m²
Features Real Full HD 3D
4K UHD (Ultra High Definition)
Automatic and Manual Vertical Keystone Correction
Dynamic Iris
High Dynamic Range (HDR)
Picture-in-Picture (PiP)
W-Lan Netzwerk kompatibel.
Lan Netzwerk kompatibel.
Short Throw Projector
Google TV OS 16 (Voice Assistant)
Auto 4P Keystone
Auto Screen Fit
Dynamic Iris (7 Levels)
EBL Technology
Anti-RBE Technology
HLG
HDR10+
Dolby Vision
Dolby Vision Gaming
IMAX Enhanced
Dynamic Tone Mapping
Filmmaker Mode
24fps & 48fps
110 Rec. 2020
Dolby Atmos & DTS:X
ALLM
VRR
4-Channel HDMI Multiview
Ambient Light (RGB Music LED)
Game Mode Input Latency: 1 ms @ 4K
Refresh Rate: 120 Hz @ 4K, 240 Hz @ 1080p
Screen Mirroring Miracast, Airplay2, Windows, DLNA
In Comparison
The Awol Vision LuxVision compared to others current "Short Distance" projectors.
Ansi-Lumen:
62 Weight: -
Contrast:
1 dB: -
Black level:
90 Power cons.: -
Picture Total Points:51 Projector Total Points:-
Popularity Top 100
0 popularity points in May 0 popularity points in June 0 popularity points in July 0 popularity points in August 49 popularity points in September 18 popularity points in October
Points:
18
Ranking: 10 (From: 388)
Live-Trend (Last 3 days)   LiveLIVE
Points: 14 -4% Trend
Status 2026 Current model // Last update of the data: 2026-11-04
Created:
Data
Awol Vision Website
Product Sheet english HC
