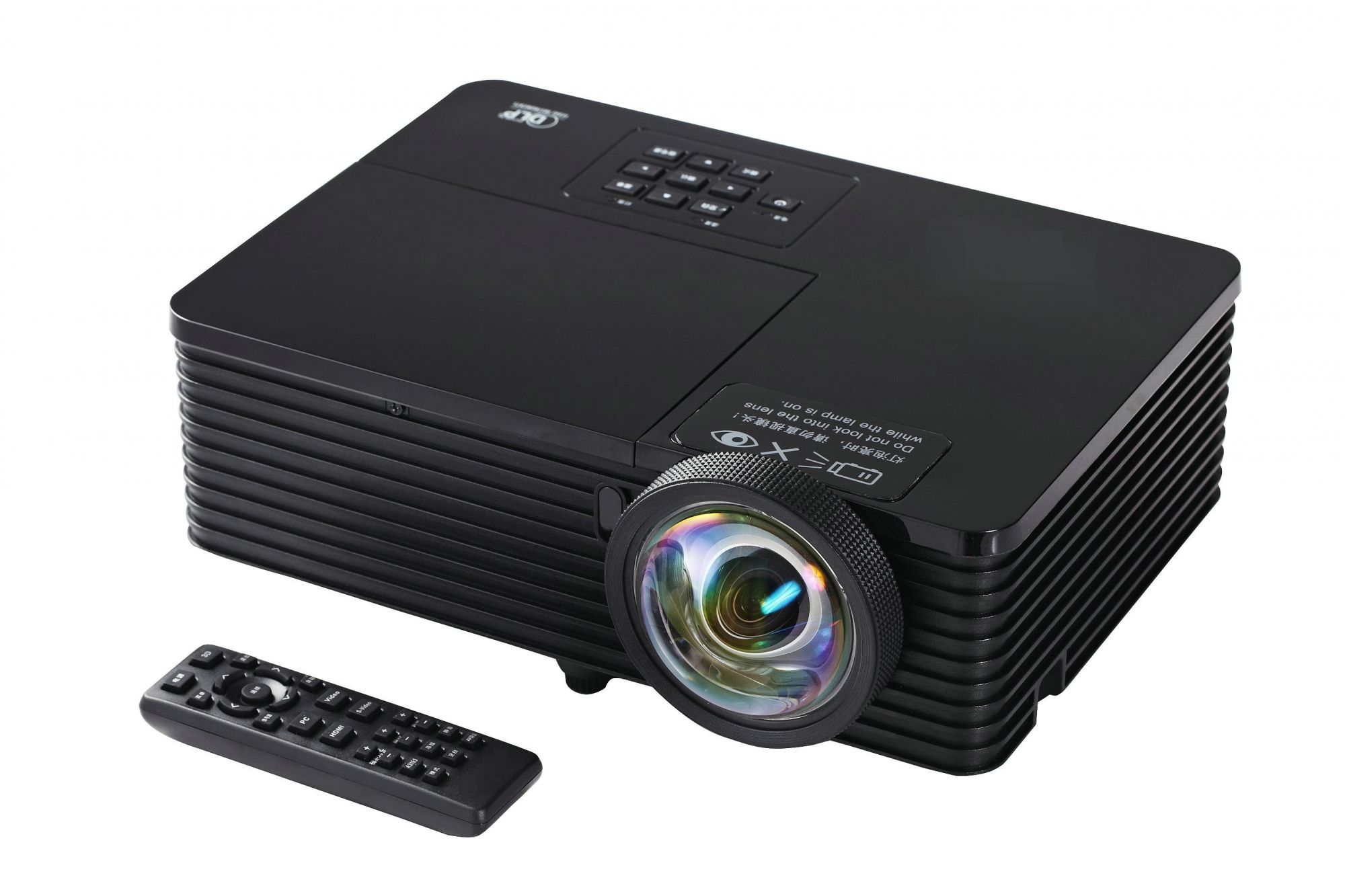

The hardware properties of the MS1024W manufactured by Brilens include 210 ANSI lumens, a XGA 1024 x 768 resolution and a contrast value of 10000:1. The runtime of the lamp in this model is estimated at 5000 hours before a replacement is necessary. A daily usage of 2 hours makes an operational lifespan of 6.8 years possible. To make performance data comparable based on the lumen specifications, we calculated an approximate ANSI lumen value. Regarding projection size, the value of 210 ANSI lumens allows for an image width of up to 126 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 84 cm. Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D.
Display Type
1 x 0,55 " DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Standard-Portabel | External training and company presentations, as well as product presentations. Very narrow picture width and rooms with very little light.
Light Source
-
Light Life
5000 h. / 10000 h. in Eco Mode
Operating Costs
-
The projection is too dark. The screen width should be reduced.
Lux:
70 Lux
Contrast:
10000:1
Candela pro m²:
24 cd/m²
Foot-Lamberts:
7 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
-
Audio
-
Connections
HDMI in
D-sub 15pin 2x in und out
Cinch Video in
S-Video in
Mini Jack Audio 2x in und 1x out
USB in
RS232C Din 9 pin in
Real Full HD 3D
