Byintek U12


BYINTEK Love U12

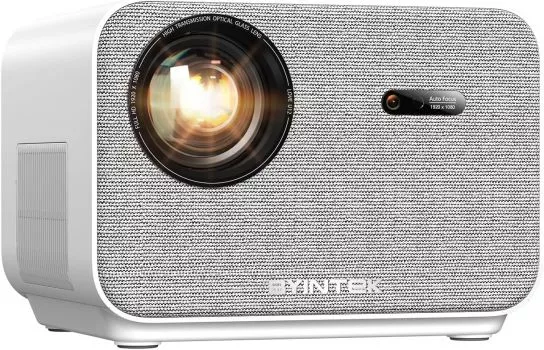

Image Byintek U12
Customer review
5 from 5 Stars 1 Review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The projector U12 by Byintek utilizes LCD technology and, according to the spec sheet, achieves 800 ANSI lumens, a contrast of 1500:1 at a resolution of HDTV 1920 x 1080. The manufacturer specifies a durability of 30000 hours for the LED light source – equivalent to a usable life of 20.5 years at 4 hours a day.
The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement.
A look at the light output reveals: The 800 ANSI lumens are sufficient to illuminate an image width of up to 287 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 191 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Thanks to support for Miracast, Airplay and DLNA, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen.
This model dates back to 2024 and is no longer part of Byintek's current product range.
Display Type 1 x 4,45" LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
800
Screen
356 Lux (200 cm Screen width)
Contrast 1500:1 1500:1
Black Level 0,5333 min. Lumen 0,238 min. Lumen
Offset 0,0% Centre of the screen →
SCREEN
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source LED
Light Life 30000 h.
Operating Costs 0,00 € LED
Calculated brightness quality Good (2.1)
270 cm (no Zoom)
Lux: 356 Lux
Contrast: 1500:1
Candela pro m²: 113 cd/m²
Foot-Lamberts: 33 fL
0 cm

Screen width:cm
          Room:
•
Focus Automatic
Zoom No Zoom
Objective -
Throw Ratio 1,35:1
Audio 2 x 5W
Connections 2x HDMI in
Composite Video
Mini Jack Audio out
2x USB-A in
RJ45 in
Ceiling Mounting Yes, is possible.
Size WxHxD 230 x 160 x 190 mm (9,1"x6,3"x7,5") 6,99 L/dm³
Power 140W
Keystone
Key: 156 cm

Key: 72 cm
+
+
SCREEN

Key: 72 cm
Key: 156 cm

Operating Noise -
Weight 2,80 kg / 4,41 lbs.
Keystone Vert.: +/-30°
Hori.: +/-15°
Illumination -
Frequenz -
Foot-Lamberts 33 fL / max. 287 cm screen width
Candela m² 113 cd/m²
Features Full HD 1080P
Lens Shift Function geschätzt
W-Lan Netzwerk kompatibel.
Lan Netzwerk kompatibel.
Android 9.0
Automatic obstacle avoidance
Automatic image alignment
Screen Mirroring Miracast, Airplay, DLNA, Eshare
In Comparison
The Byintek U12 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
9 Weight:
80
Contrast:
1 dB: -
Black level:
94 Power cons.:
89
Picture Total Points:35 Projector Total Points:-
Popularity Top 100
2 popularity points in May 3 popularity points in June 4 popularity points in July 4 popularity points in August 13 popularity points in September 24 popularity points in October
Points:
24
Ranking: 136 (From: 7741)
Live-Trend (Last 3 days)   LiveLIVE
Points: 7 -17% Trend
Status 2024 Discontinued (EOL) // Last update of the data: 2026-10-17
Created:
Data
Byintek Website
Product Sheet english HC

Projektor Byintek U12 Projektor Byintek U12 Projektor Byintek U12 Projektor Byintek U12 Projektor Byintek U12 Projektor Byintek U12



Popular Alternatives
800   ANSI-Lumen
MiróUNO3K3-1LB-9600E21
Model MiróUNO3K3-1LB-9600E21
Ansi-Lumen 800800800800800
Specifications HDTV LED WLAN MPHDTV LED Bluetooth Android WLAN HDTV LED WLAN HDTV LED WLAN MPHDTV LED Android WLAN
Compare CompareCompareCompareCompareCompare


All: 5 from 5 Stars 1 Reviews

Autor: 28.09.26
5 Stars My U12
Great resolution on a 270cm or 120 screen. Sound is comparable to a good TV set. Android menu has corner or sides option keynote option - easy to square the screen. Bluetooth connects immediately with my sound system.
