Claxan CL ACC 16025SP

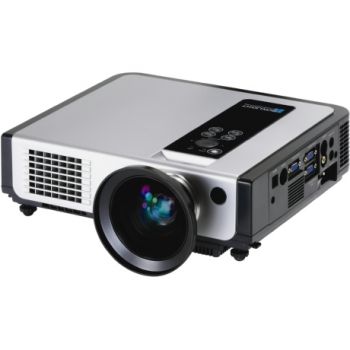

Image Claxan CL ACC 16025SP
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The technical data of the Claxan CL ACC 16025SP includes 2600 ANSI lumens, a contrast of 500:1 as well as a XGA 1024 x 768 display. According to Claxan, the included lamp lasts up to 2000 hours.
Regarding projection size, the value of 2600 ANSI lumens allows for an image width of up to 444 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 296 cm.
Specifically for the educational or business sector, an interactive whiteboard function is also integrated.
Since entering the market in 2008, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type       3 x 0,6" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 2600
Screen
 867 Lux (200 cm Screen width)
Contrast 500:1 full on/off 500:1 full on/off
Black Level 5,2000 min. Lumen 1,744 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Whiteboard | Training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 160W NSH Lamp
Article Nr.: 407277
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Perfect
306 - 366 cm
Lux: 867 Lux
Contrast: 500:1
Candela pro m²: 278 cd/m²
Foot-Lamberts: 81 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,2
Objective F=1,6-1,88 f=18,6-22,30 mm
Throw Ratio 1,53-1,83:1 show
Audio 2W
Connections D-sub 15 in und out
S-Video in
Cinch Video in
RS232C
USB
Mini Jack in und out
Ceiling Mounting Yes, is possible.
Power 250W
Size WxHxD 310 x 96 x 270 mm (12,2"x3,8"x10,6") 8,04 L/dm³
Operating Noise 30 dB in Eco Mode
Key: 177 cm

Without offset

Key: 177 cm
Weight 2,90 kg / 6,39 lbs.
Keystone Vert.: +/-30°
Illumination -
Frequenz H-sync: 15-69 kHz
V-sync: 43-85 Hz
Range max.: 110 MHz
Foot-Lamberts 81 fL / max. 444 cm screen width
Candela m² 278 cd/m²
Features Freeze
Eco Mode
Remote control with laser pointer
Digital zoom
Built-in whiteboard functionality.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Claxan CL ACC 16025SP compared to others not current "Whiteboard" projectors.
Ansi-Lumen:
35 Weight:
86
Contrast:
1 dB: 0
Black level:
81 Power cons.:
98
Picture Total Points:39 Projector Total Points:0
Popularity Top 100
18 popularity points 11 popularity points 7 popularity points 7 popularity points 9 popularity points 9 popularity points
Points:
9
Ranking: 294 (From: 297)
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
