DreamVision Yunzi 1

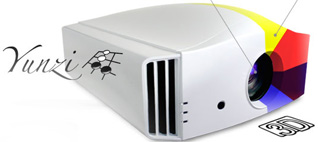

Image DreamVision Yunzi 1
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Categorized in the High-End Homecinema segment, the Yunzi 1 projector from DreamVision projects with a HDTV 1920 x 1080 resolution, alongside 1300 ANSI lumens and a contrast of 50000:1. The manufacturer rates the durability of the included lamp at 4000 hours, achieving a lifespan of 5.5 years when used for 2 hours a day.
The specifications indicate lens shift optics, allowing the image to be physically shifted without digital image artifacts. The Distance Calculator is available for room planning.
Looking at practical performance, up to 366 cm can be illuminated with 1300 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 244 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
A look at the data sheet confirms a very subtle fan noise for the projector at just 20 decibels. This model dates back to 2013 and is no longer part of DreamVision's current product range.
Display Type 3 x 0,7" D-ILA Chip
HDTV 16/9 Direct-Drive Image Light Amplification (D-ILA)
Ansi-Lumen
Projector
1300
Screen
578 Lux (200 cm Screen width)
Contrast 50000:1 full on/off 50000:1 full on/off
Black Level 0,0260 min. Lumen 0,012 min. Lumen
Lens shift Vert.: +/-80% Hori.: +/-34%
 Lens shift
80%  90cm
80%  90cm
34%  68cm
34%  68cm
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
WUXGA 1920 x 1200 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray
3D Compatibility
Frame-Packing (Full HD 3D) |Side-by-Side |Top-and-Bottom | Frame Sequential (3D Ready) | 2D-zu-3D Videokonverter Frame Packing 720p 60/50,1080p 24,1080i 60/50 Side-by-Side /half)720p 60/50, 1080p 60/50, 1080i 60/50 Top & Bottom 720p 60/50, 1080p/24
Application High-End Homecinema | Small screen width, rooms with very little ambient light below 50 lumens.
Light Source NSH 230W Lamp
Article Nr.: R8760004
Order Lamp
50,94 - 113,41 €
Light Life 4000 h.
Operating Costs -
Calculated brightness quality Perfect
280 - 560 cm
Lux: 578 Lux
Contrast: 50000:1
Candela pro m²: 185 cd/m²
Foot-Lamberts: 54 fL
90 cm



Screen width:cm
          Room:
•
Focus Powered
Zoom Powered 2
Objective F=3,2-4,0 f=21,4-42,80 mm
Throw Ratio 1,4-2,8:1 show
Audio Nein
Connections 2 x HDMI 1.4a
YUV in
RS232C
12V Trigger out
RJ45 in
Ceiling Mounting Yes, is possible.
Size WxHxD 455 x 179 x 472 mm (17,9"x7"x18,6") 38,44 L/dm³
Power 330W
Lens shift

Shift: 90 cm


Shift: 68 cm
+
+
SCREEN


Shift: 68 cm

Shift: 90 cm

Operating Noise 20dB
Weight 14,80 kg / 32,63 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 54 fL / max. 366 cm screen width
Candela m² 185 cd/m²
Features Real Full HD 3D
Full HD 1080P
sRGB
Gamma Correction
Backlit Remote Control
Lan Netzwerk kompatibel.
Built-in auto lens protection
Model ‘B’ is black.
Model ‘W’ is white.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The DreamVision Yunzi 1 compared to others not current "High-End Homecinema" projectors.
Ansi-Lumen:
9 Weight:
73
Contrast:
48 dB:
97
Black level:
47 Power cons.:
90
Picture Total Points:35 Projector Total Points:87
Popularity Top 100
2 popularity points in May 5 popularity points in June 7 popularity points in July 8 popularity points in August 10 popularity points in September 8 popularity points in October
Points:
8
Ranking: 333 (From: 508)
Live-Trend (Last 3 days)   LiveLIVE
Points: 7 -1% Trend
Optional accessories
Osram bulb only NLMP23060103,66 €
lamp ruby Ruby-LMP23060113,41 €
lamp OriginalR8760004EOL €
Compatible lamp LMP-K2306050,94 €
ceiling bracket white Halterung45W83,60 €
Status 2013 Discontinued (EOL) // Last update of the data: 2026-06-09
