Elmo EDP X70

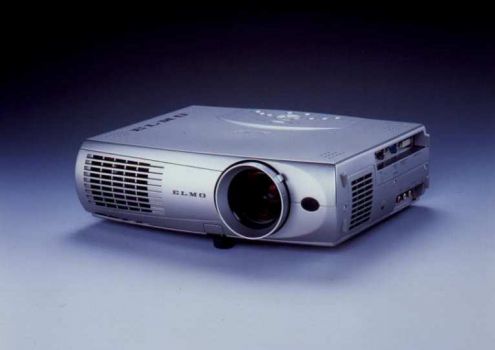

Image Elmo EDP X70
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Behind the name EDP X70 is a LCD projector by Elmo, whose main features include 2000 ANSI lumens, a contrast of 400:1 and a XGA 1024 x 768 resolution. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
A look at the light output reveals: The 2000 ANSI lumens are sufficient to illuminate an image width of up to 389 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 259 cm.
This device is no longer manufactured and has been removed from Elmo's current lineup.
Display Type 3 x 0,9" TFT Panel
XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
2000
Screen
667 Lux (200 cm Screen width)
Contrast 400:1 full on/off 400:1 full on/off
Black Level 5,0000 min. Lumen 1,68 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N, PAL-60, Component video (Y/PB/PR), HDTV (1080i/720p)
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source Hochdruck-Quecksilberdampflampe 200W UHP
Article Nr.: 9470
Order Accessories
53,30 - 94,40 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Perfect
368 - 460 cm
Lux: 667 Lux
Contrast: 400:1
Candela pro m²: 212 cd/m²
Foot-Lamberts: 62 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,25
Objective F=1,7-2,1 f=33,6-42 mm
Throw Ratio 1,84-2,3:1 show
Audio 1W Mono
Connections D-sub 15P
DVI
Composite video : 1x Cinch
S-Video
2x Cinch L/R
1x 3,5 mm Klinke 3,5 mm Stereo
1x D-sub 15P Ausgang
1x USB type B
1x 8-pol Mini Din
Ceiling Mounting -
Size WxHxD 334 x 94 x 258 mm (13,1"x3,7"x10,2") 8,1 L/dm³
Power -
Keystone
Key: 99 cm

Not
possible
+
+
SCREEN

Without Offset


Not
possible
Key: 99 cm

Operating Noise 37dB
Weight 4,10 kg / 9,04 lbs.
Keystone Vert.: +/-15°  automatisch
Illumination -
Frequenz -
Foot-Lamberts 62 fL / max. 389 cm screen width
Candela m² 212 cd/m²
Features Automatic and Manual Vertical Keystone Correction
Screen Mirroring -
In Comparison
The Elmo EDP X70 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
28 Weight:
59
Contrast:
18 dB:
31
Black level:
14 Power cons.: -
Picture Total Points:20 Projector Total Points:-
Popularity Top 100
0 popularity points in May 0 popularity points in June 3 popularity points in July 3 popularity points in August 2 popularity points in September 3 popularity points in October
Points:
3
Ranking: 6704 (From: 7741)
Live-Trend (Last 3 days)   LiveLIVE
Points: 3 ±0% Trend

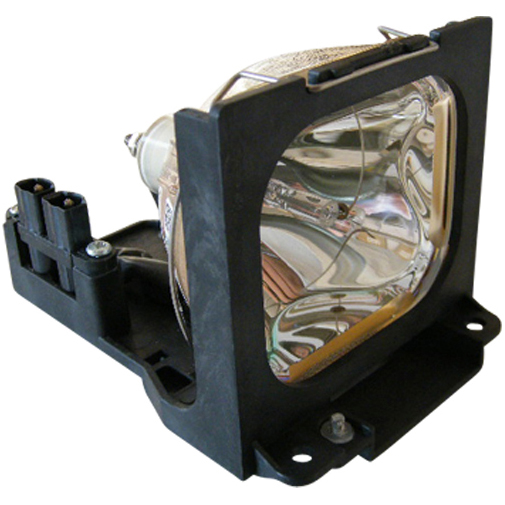

Optional accessories
bulb only Philips NLMP146184,79 €
lamp ruby Ruby-LMP146194,40 €
lamp Original9470EOL €
Compatible lamp LMP-K146153,30 €
Airfilter universaluni3mm18,15 €
Status - Discontinued (EOL) // Last update of the data: 2026-06-09
