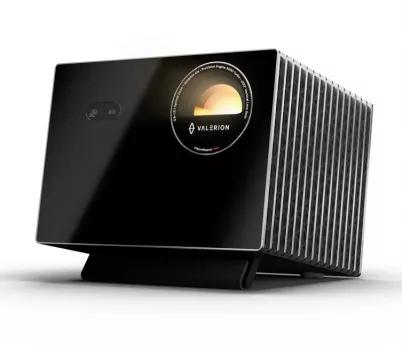

Valerion VisionMaster Max


by AWOL Vision
Image Valerion VisionMaster Max
Customer review
Offer Ads
Discover the popular projector on Amazon.
Model Overview This projector from Valerion utilizes 3D-Laser-DLP technology, achieving 4375 ANSI lumens and a contrast of 50000:1 at a resolution of UHD (4K2K) 3840 x 2160. The manufacturer lists the lifespan for this model at 25000 hours. With four hours of daily operation, this corresponds to a period of 17.1 years.
Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The Projector Calculator helps find the optimal installation dimensions.
To ensure objective comparability, an approximate ANSI lumen value was calculated based on the ISO lumen values. Regarding projection size, the value of 4375 ANSI lumens allows for an image width of up to 672 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 448 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. Equipped with Google TV, the device provides direct access to a broad spectrum of streaming services. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since the projector supports Miracast, Airplay and Chromecast screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type 1 x 0,47" DMD DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
~4375 / 3500 Iso Lumen
Screen
1944 Lux (200 cm Screen width)
Contrast 50000:1 50000:1
Black Level 0,0875 min. Lumen 0,039 min. Lumen
Lens shift Vert.: +/-50%
 Lens shift
50%  56cm
50%  56cm
+ Projector
Resolution UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p
Media player formats: AV1, AVS, AVS2, HEVC, VP9, H.264, H.265, H.266, SHVC
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p)
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom |
Application Homecinema | Gaming | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source Triple RGB Laser
Light Life 25000 h.
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
180 - 300 cm
Lux: 1944 Lux
Contrast: 50000:1
Candela pro m²: 620 cd/m²
Foot-Lamberts: 181 fL
56 cm

Screen width:cm
          Room:
•
Focus Automatic
Zoom Powered 1,67
Objective -
Throw Ratio 0,9-1,5:1 show
Audio 2 x 12W

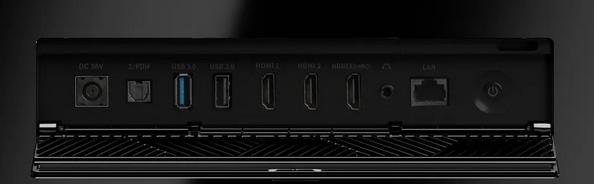

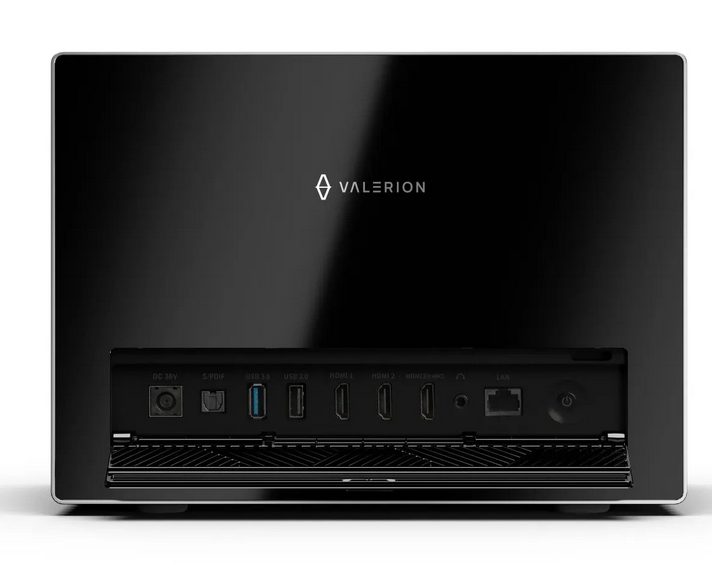

Connections 2x HDMI 2.1 in
HDMI 2.0 (eARC) in
USB-A 2.0 in
USB-A 3.0 in
Audio Mini Jack out
S/PDIF
RJ45
Bluetooth 5.2
Ceiling Mounting Yes, is possible.
Size WxHxD -
Power -
Lens shift

Shift: 56 cm

Not
possible
+
+
SCREEN

Not
possible

Shift: 56 cm

Operating Noise -
Weight -
Keystone Vertical automatic
Illumination -
Frequenz -
Foot-Lamberts 181 fL / max. 672 cm screen width
Candela m² 620 cd/m²
Features Real Full HD 3D
4K UHD (Ultra High Definition)
Integrated Media Player
Automatic and Manual Vertical Keystone Correction
Dynamic Iris
High Dynamic Range (HDR)
W-Lan Netzwerk kompatibel.
Lan Netzwerk kompatibel.
Short Throw Projector
Google TV
Filmmaker Mode (24 FPS & 48 FPS)
Dolby Vision
Dynamic Iris
Dynamic Tone Mapping
Auto Screen Fit
Works with Google Home, Works with Apple Homekit, Device control with Alexa, Control 4
MEMC
4ms at 1080P@240Hz, 8ms at 1080P@120Hz, 15ms at 4K @60Hz
Screen Mirroring Airplay2, Miracast, Chromecast
In Comparison
The Valerion VisionMaster Max compared to others current "Homecinema" projectors.
Ansi-Lumen:
40 Weight: -
Contrast:
1 dB: -
Black level:
97 Power cons.: -
Picture Total Points:46 Projector Total Points:-
Popularity Top 100
31 popularity points in May 23 popularity points in June 39 popularity points in July 46 popularity points in August 25 popularity points in September 26 popularity points in October
Points:
26
Ranking: 31 (From: 153)
Live-Trend (Last 3 days)   LiveLIVE
Points: 16 -10% Trend
Please note 4ms at 1080P@240Hz, 8ms at 1080P@120Hz, 15ms at 4K @60Hz
Status 2025 Current model // Last update of the data: 2026-11-04
