VOPLLS R1

Image VOPLLS R1
Customer review
Offer Ads
Discover the popular projector on Amazon.

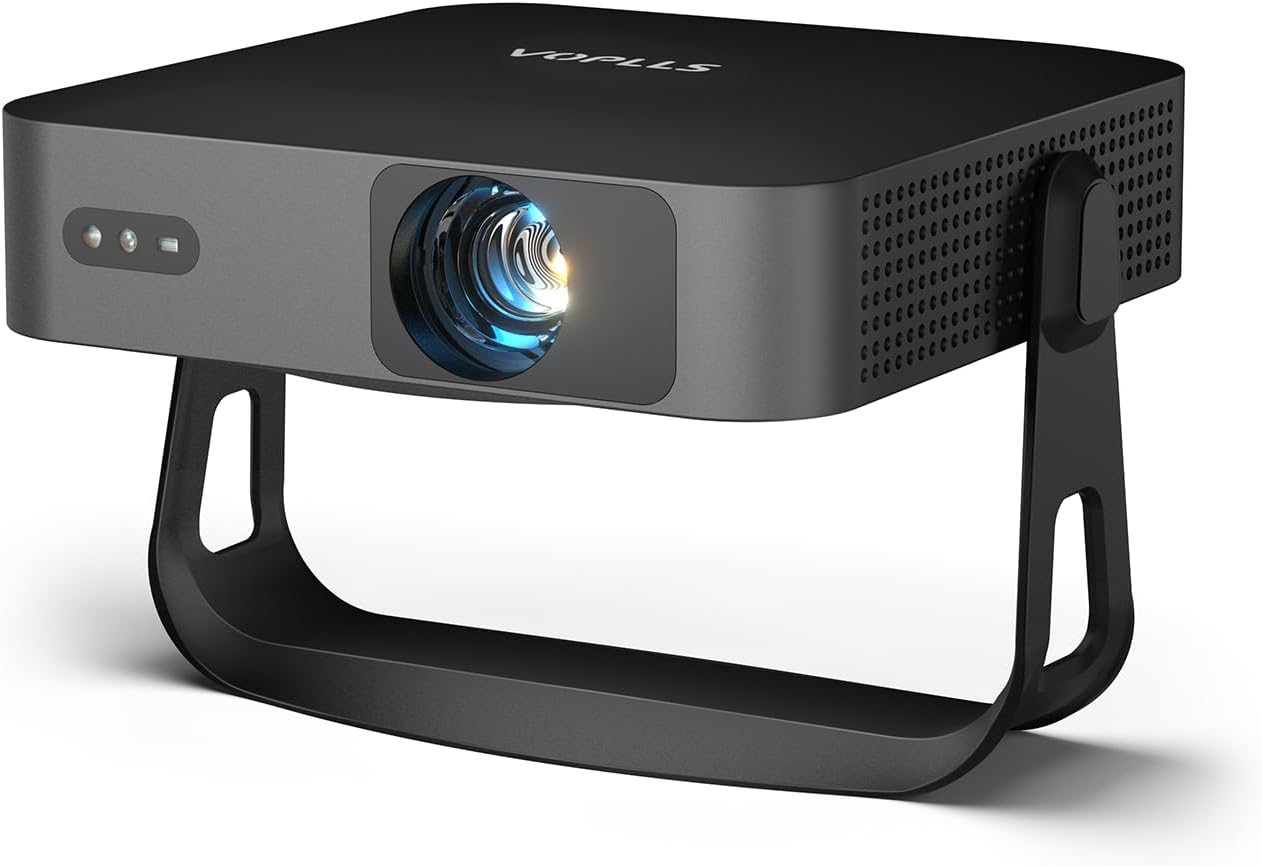

Model Overview As a projector, the VOPLLS R1 combines LCD technology with 320 ANSI lumens and a resolution of HDTV 1920 x 1080. An LED lifespan of 30000 hours is noted in the data sheet for this model – equivalent to a usable life of 20.5 years at 4 hours a day.
The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement.
To ensure objective comparability, an approximate ANSI lumen value was calculated based on the lumen specifications. Regarding projection size, the value of 320 ANSI lumens allows for an image width of up to 182 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 121 cm.
Regarding signal processing, the model is compatible with incoming 1080P content and 4K. Also on board is a local media player that allows reading and playing content directly from storage media. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type 1 x LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
~320
Screen
142 Lux (200 cm Screen width)
Contrast - -
Black Level - -
Offset 0,0% Centre of the screen →
SCREEN
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
UHD (4K2K) 3840 x 2160 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p
Media player formats: Video formats 128G AVI MOV VOB 128G FLV MP4 Music Format Mp3, M4A ,AAC,FLAC,APE,WAV ect 128G MKV MPG Photo Format JPEG, BMP, PNG,HPEG Maximum memory of each video Video encoder 2T H.264 MJPE MOV VOB 4G FLV H.264 MPEG-4DIVX XIVD / 2G COPX H.264 MJPEG1 /
Application Game-Portabel | Very portable, small-screen projections.
Very narrow picture width and rooms with very little light.
Light Source LED
Light Life 30000 h.
Operating Costs 0,00 € LED
The projection is okay. A smaller screen width would result in a brighter image.
Lux: 142 Lux
Contrast:
Candela pro m²: 45 cd/m²
Foot-Lamberts: 13 fL
0 cm

Screen width:cm
          Room:
•
Focus Automatic
Zoom No Zoom 50% Digital
Objective -
Throw Ratio -
Audio 1 x 3W
Connections HDMI in
Mini Jack Audio out
USB in
Bluetooth 5.2
Ceiling Mounting Yes, is possible.
Size WxHxD 200,9 x 58,4 x 199,9 mm (7,9"x2,3"x7,8") 2,31 L/dm³
Power 70W
Keystone

+
+
SCREEN

Operating Noise -
Weight 1,08 kg / 2,2 lbs.
Keystone Vert.: +/-30°
Hori.: +/-30°
Illumination 60%
Frequenz -
Foot-Lamberts 13 fL / max. 182 cm screen width
Candela m² 45 cd/m²
Features Full HD 1080P
Lens Shift Function geschätzt
Integrated Media Player
W-Lan Netzwerk kompatibel.
Auto 6P Keystone
Automatic Obstacle Avoidance
Auto Screen Fit

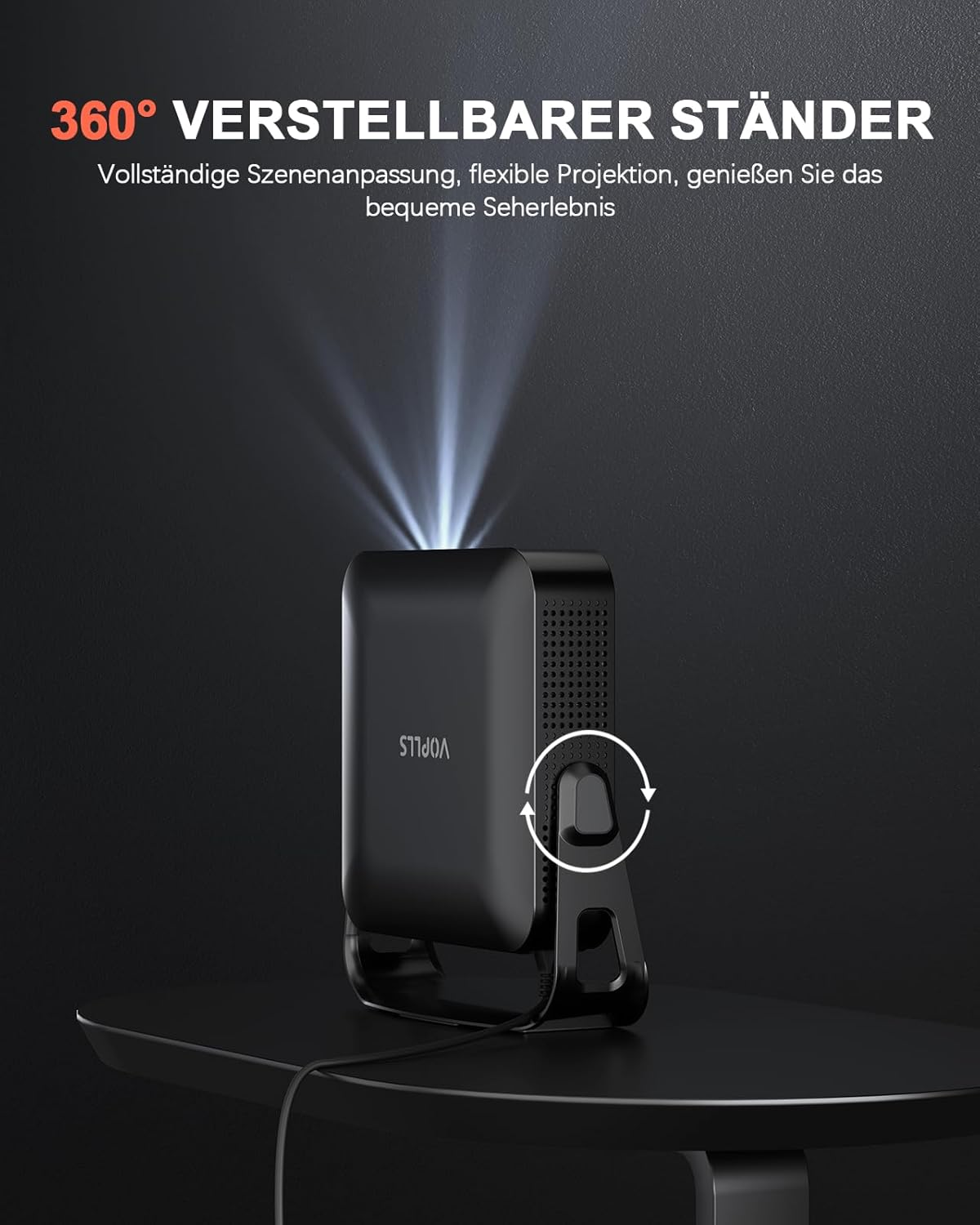

360° Adjustable Stand
Screen Mirroring Miracast, Airplay, Windows
In Comparison
The VOPLLS R1 compared to others current "Game-Portabel" projectors.
Ansi-Lumen:
32 Weight:
29
Contrast: - dB: -
Black level: - Power cons.:
100
Picture Total Points:- Projector Total Points:-
Popularity Top 100
16 popularity points in May 13 popularity points in June 20 popularity points in July 20 popularity points in August 20 popularity points in September 24 popularity points in October
Points:
24
Ranking: 77 (From: 614)
Live-Trend (Last 3 days)   LiveLIVE
Points: 20 -4% Trend
Status 2024 Current model // Last update of the data: 2026-11-03
Created:
Data
Product Sheet english HC
User Manual english (8.48 MB)
