Butterfly Y1

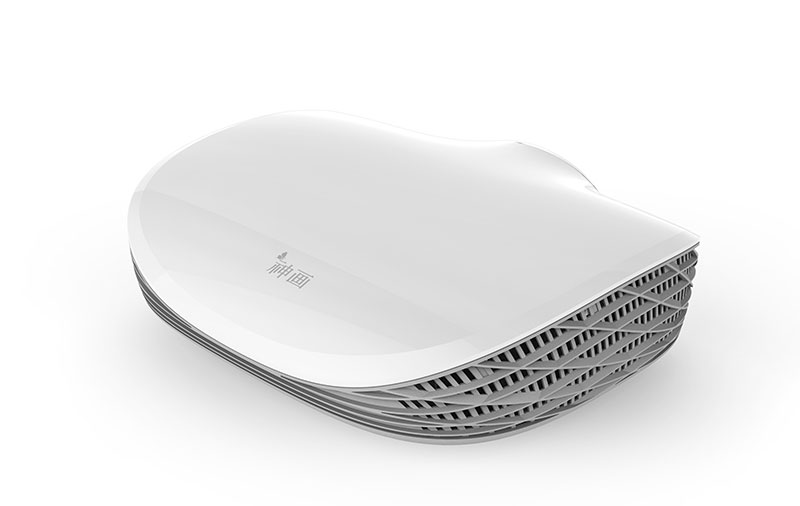

Image Butterfly Y1
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Equipped with DLP technology, the Butterfly Y1 offers a display in WXGA 1280 x 800 and is equipped with 600 ANSI lumens and designed for versatile applications.
A look at the light output reveals: The 600 ANSI lumens are sufficient to illuminate an image width of up to 249 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 166 cm.
For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
This model dates back to 2015 and is no longer part of Butterfly's current product range.
Display Type       1 x DLP Chip
      WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 600
Screen
 240 Lux (200 cm Screen width)
Contrast - -
Black Level - -
Offset -
Resolution WXGA 1280 x 800
1.024.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
3D Compatibility Frame Sequential (3D Ready) |
Application Game-Portabel | Very portable, small-screen projections.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source RGB LED
Light Life -
Operating Costs 0,00 € LED
Calculated brightness quality Okay (2.5)
200 cm (no Zoom)
Lux: 240 Lux
Contrast:
Candela pro m²: 75 cd/m²
Foot-Lamberts: 22 fL

Screen width:cm
          Room:
•
Focus Automatic
Zoom No Zoom
Objective -
Throw Ratio 1,0:1
Audio -
Connections HDMI in
D-sub 15pin in
USB in
RJ45 in
Ceiling Mounting -
Power -
Size WxHxD -
Operating Noise -

Weight -
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 22 fL / max. 249 cm screen width
Candela m² 75 cd/m²
Features Lan network compatible.
Android 4.4 built-in
Quad-Core CPU
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Butterfly Y1 compared to others not current "Game-Portabel" projectors.
Ansi-Lumen:
49 Weight: 0
Contrast: 0 dB: 0
Black level: 0 Power cons.: 0
Picture Total Points:0 Projector Total Points:0
Popularity Top 100
5 popularity points 5 popularity points 3 popularity points 3 popularity points 4 popularity points 4 popularity points
Points:
4
Ranking: 848 (From: 1100)
Status 2015 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Product Sheet english HC

Projektor Butterfly Y1 Projektor Butterfly Y1 Projektor Butterfly Y1
