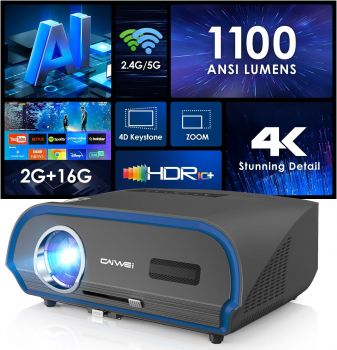

A projector from Caiwei is the A10R, whose LED-LCD model delivers 1100 ANSI lumens, a resolution of HDTV 1920 x 1080 and a contrast of 16000:1. The LED unit of this model is rated for up to 50000 hours of runtime, covering an estimated 34.2 years based on a 4-hour daily runtime. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. Regarding projection size, the value of 1100 ANSI lumens allows for an image width of up to 337 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 225 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device. Since entering the market in 2023, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
1100
Screen
489 Lux (200 cm Screen width)
Contrast
16000:1 full on/off
16000:1 full on/off
Black Level
0,0688 min. Lumen
0,031 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Video
MPG, MPEG-1, MPEG-2, MPEG-4, AVI, MP4, DIVX, TS, TRP, MKV, WMV, RM, RMVB
Audio
MP3, AAC, WMA, RM, FLAC, Ogg, etc
JPEG, JPEG, BMP, GIF, PNG
Text
TXT, Word, Excel, PPT, PDF
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Light Source
170W LED
Light Life
50000 h.
Operating Costs
0,00 € LED
Calculated brightness quality Perfect
270 cm (no Zoom)
Lux:
489 Lux
Contrast:
16000:1
Candela pro m²:
154 cd/m²
Foot-Lamberts:
45 fL
•
Focus
Automatic
Zoom
No Zoom
Objective
-
Throw Ratio
1,35:1
Audio
2 x 15W + SubWoofer
Connections
2x HDMI in
D-sub 15pin in
Mini Jack Audio in und out
2x USB in
RJ45 in
Bluetooth 5.1
Full HD 1080P compatible Integrated Mediaplayer Automatic and manual vertical keystone correction High Dynamic Range (HDR) Wi-Fi network compatible. Lan network compatible. Android 9.0 TV Automatic 6D keystone correction Intelligent screen alignment MEMC
Full HD 1080P compatible
