Caiwei A9TL


EAN/UPC:B0H8BRNM8H

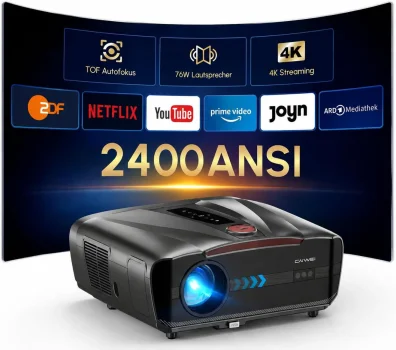

Image Caiwei A9TL
Customer review
Offer Ads
Discover the projector on Amazon. Now!
Model Overview The equipment of the Caiwei A9TL projector includes 2400 ANSI lumens, a contrast of 16000:1 with a HDTV 1920 x 1080 display. An LED lifespan of 30000 hours is noted in the data sheet for this model. With four hours of daily operation, this corresponds to a period of 20.5 years.
Should a perpendicular setup to the screen not be possible, the integrated keystone correction (horizontal and vertical) helps to realign the image into a perfect rectangle.
Regarding projection size, the value of 2400 ANSI lumens allows for an image width of up to 352 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 235 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. As an additional feature, an integrated media player enables the direct playback of files without an external source device. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Thanks to support for Miracast and Airplay, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen.
Display Type 1 x LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
2400
Screen
1067 Lux (200 cm Screen width)
Contrast 16000:1 full on/off 16000:1 full on/off
Black Level 0,1500 min. Lumen 0,067 min. Lumen
Offset 0,0% Centre of the screen →
SCREEN
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
UHD (4K2K) 3840 x 2160 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p
Media player formats: Video MPG, MPEG-1, MPEG-2, MPEG-4, AVI, MP4, DIVX, TS, TRP, MKV, WMV, RM, RMVB Audio MP3, AAC, WMA, RM, FLAC, Ogg, etc Picture JPEG, JPEG, BMP, GIF, PNG Text TXT, Word, Excel, PPT, PDF
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 6 Color LED
Light Life 30000 h.
Operating Costs 0,00 € LED
Calculated brightness quality
The screen width may also be larger. Perfect
252 cm (no Zoom)
Lux: 1067 Lux
Contrast: 16000:1
Candela pro m²: 339 cd/m²
Foot-Lamberts: 99 fL
0 cm

Screen width:cm
          Room:
•
Focus Automatic
Zoom No Zoom 50%-100% Digital
Objective -
Throw Ratio 1,26:1
Audio 2 x 38W 1200CC
Connections 2x HDMI 2.0 (eARC, CEC) in
AV in
Mini Jack Audio in und out
2x USB-A in
RJ45 in
Bluetooth 5.4
Ceiling Mounting Yes, is possible.
Size WxHxD 278 x 125 x 301 mm (10,9"x4,9"x11,9") 10,46 L/dm³
Power 170W
Keystone
Key: 300 cm

Key: 300 cm
+
+
SCREEN

Key: 300 cm
Key: 300 cm

Operating Noise 35dB
Weight 2,69 kg / 4,41 lbs.
Keystone Vert.: +/-50°  automatisch
Hori.: +/-50°
Illumination 92%
Frequenz -
Foot-Lamberts 99 fL / max. 352 cm screen width
Candela m² 339 cd/m²
Features Full HD 1080P
Lens Shift Function geschätzt
Integrated Media Player
Eco Mode
Automatic and Manual Vertical Keystone Correction
High Dynamic Range (HDR)
W-Lan Netzwerk kompatibel.
Lan Netzwerk kompatibel.
Movin 2.0 OS
App control
Auto 4P Keystone
Auto Screen Fit
Auto Obstacle Avoidance
AI Audio Balance
AI Colour Correction
AI Image Enhancement
Dolby Atmos
DTS:X
MEMC
HDR10+
Screen Mirroring Miracast, Airplay, Windows
In Comparison
The Caiwei A9TL compared to others current "Standard-Portabel" projectors.
Ansi-Lumen:
32 Weight:
81
Contrast:
1 dB:
63
Black level:
98 Power cons.:
80
Picture Total Points:44 Projector Total Points:75
Popularity Top 100
0 popularity points in May 0 popularity points in June 0 popularity points in July 0 popularity points in August 9 popularity points in September 15 popularity points in October
Points:
15
Ranking: 138 (From: 1044)
Live-Trend (Last 3 days)   LiveLIVE
Points: 10 -5% Trend
Status 2026 Current model // Last update of the data: 2026-11-19
