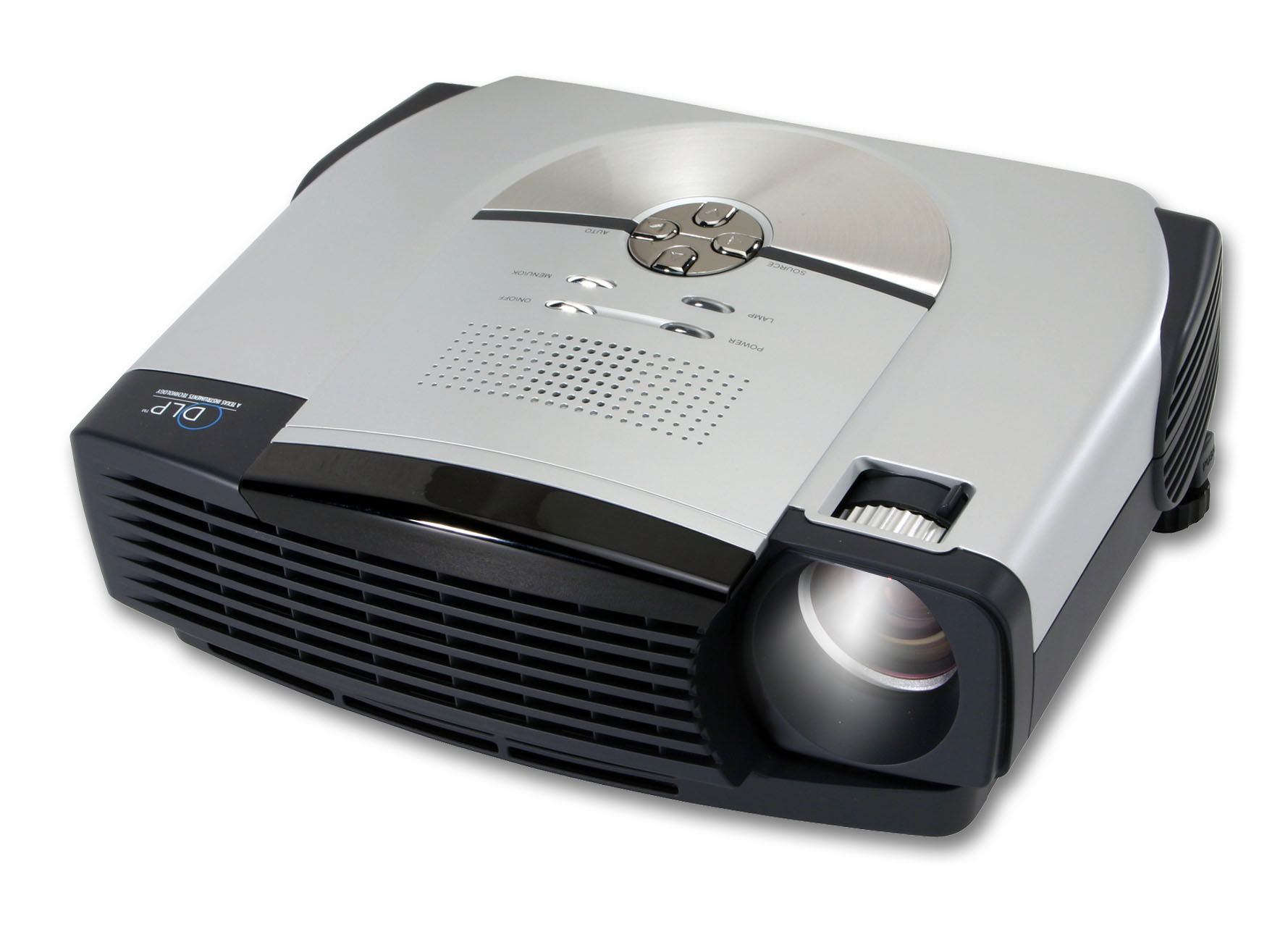

Kindermann KSD 130

Image Kindermann KSD 130
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Categorized in the Standard-Portabel segment, the KSD 130 projector from Kindermann projects with a SVGA 800 x 600 resolution, alongside 1200 ANSI lumens and a contrast of 1200:1. According to Kindermann, the included lamp lasts up to 2000 hours.
A look at the light output reveals: The 1200 ANSI lumens are sufficient to illuminate an image width of up to 302 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 201 cm.
The projector was released in 2004 and is officially no longer distributed by Kindermann.
Display Type 1 x 0,55" DDR DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1200
Screen
400 Lux (200 cm Screen width)
Contrast 1200:1 full on/off 1200:1 full on/off
Black Level 1,0000 min. Lumen 0,334 min. Lumen
Offset -
Resolution SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC,
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 200W VIP Lamp
Article Nr.: 7763
Order Lamp
57,85 - 80,66 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Good (1.8)
370 - 450 cm
Lux: 400 Lux
Contrast: 1200:1
Candela pro m²: 127 cd/m²
Foot-Lamberts: 37 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,2
Objective f=20,2-24,2 mm
Throw Ratio 1,85-2,25:1 show
Audio 2 x 1W
Connections D-sub 15pin in
Cinch Video in
S-Video in
USB
Mini Jack in
Ceiling Mounting Yes, is possible.
Size WxHxD 254 x 98 x 202 mm (10"x3,9"x8") 5,03 L/dm³
Power 150W
Keystone
Key: 99 cm

Not
possible
+
+
SCREEN

Without Offset


Not
possible
Key: 99 cm

Operating Noise 34 / 32 dB in Eco Mode
Weight 2,10 kg / 4,63 lbs.
Keystone Vert.: +/-15°  automatisch
Illumination 80%
Frequenz H-sync: 15-100 kHz
V-sync: 43-120 Hz
Foot-Lamberts 37 fL / max. 302 cm screen width
Candela m² 127 cd/m²
Features Eco Mode
Automatic and Manual Vertical Keystone Correction
RGBW colour wheel
Screen Mirroring -
In Comparison
The Kindermann KSD 130 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
17 Weight:
91
Contrast:
28 dB:
38
Black level:
28 Power cons.:
85
Picture Total Points:24 Projector Total Points:71
Popularity Top 100
1 popularity points in May 0 popularity points in June 3 popularity points in July 3 popularity points in August 1 popularity points in September 5 popularity points in October
Points:
5
Ranking: 5616 (From: 7741)
In Test -
Optional accessories

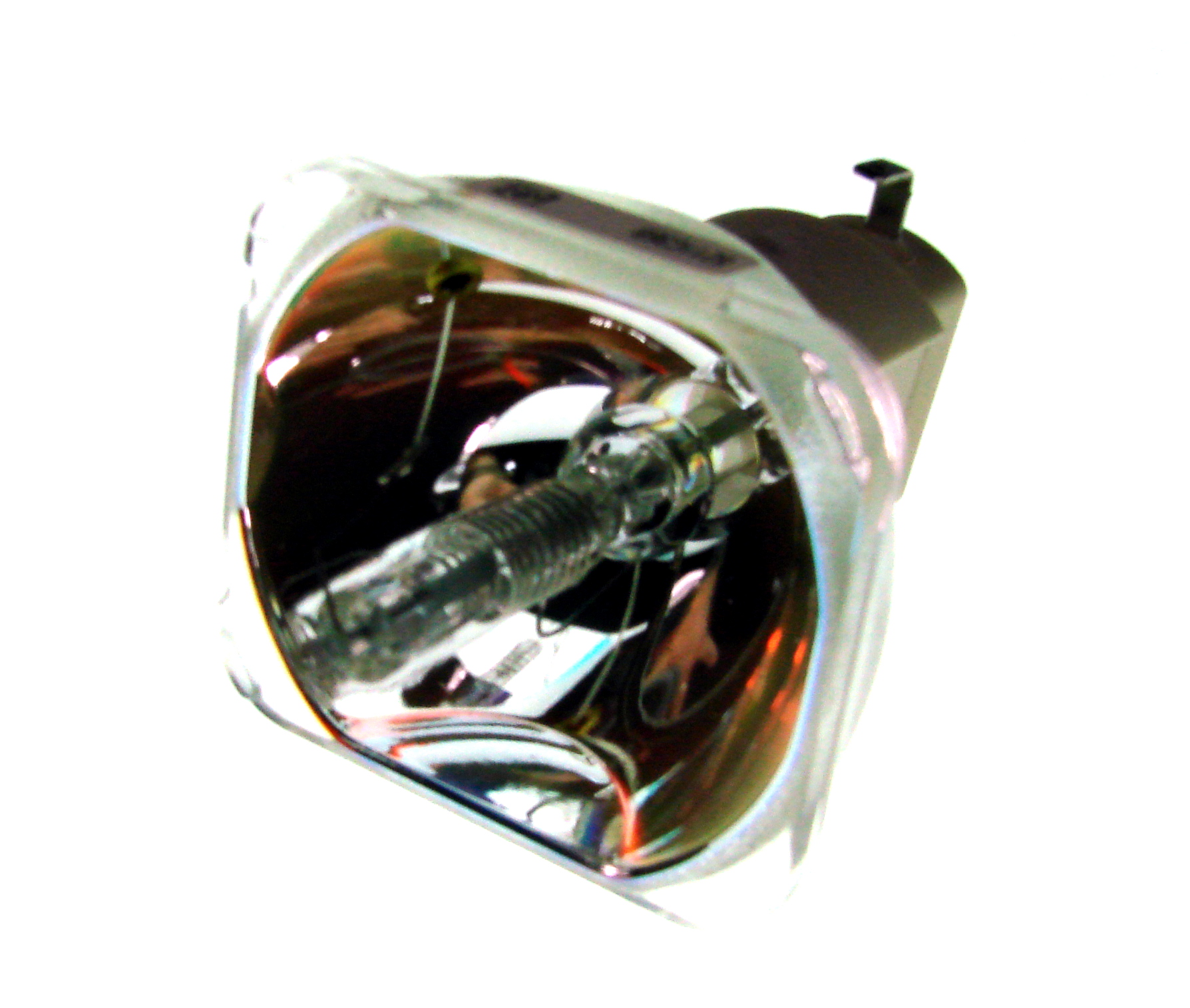

bulb only NLMP204575,10 €
lamp ruby Ruby-LMP204580,66 €

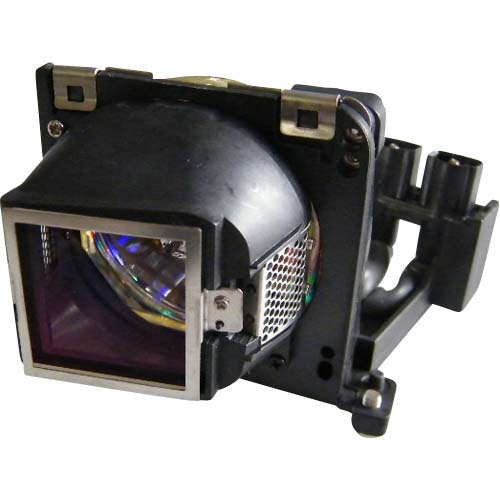

lamp Original7763EOL €

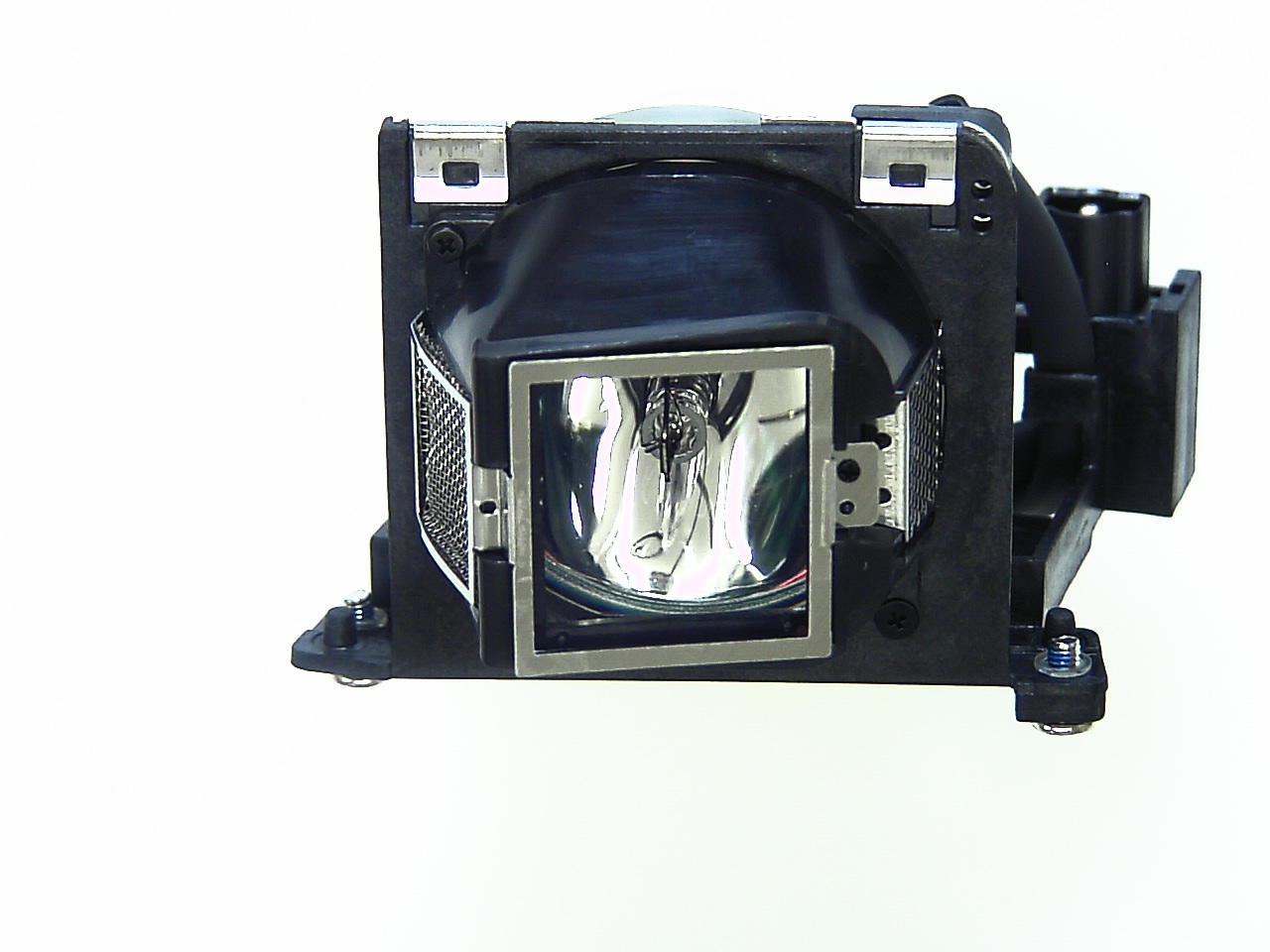

Compatible lamp LMP-K1733957,85 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2004 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Kindermann Website
Product Sheet english HC
Product Sheet französisch

Projektor Kindermann KSD 130
