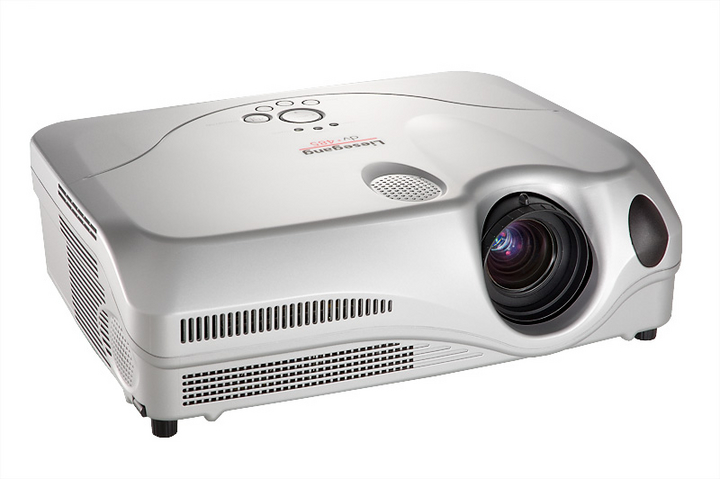

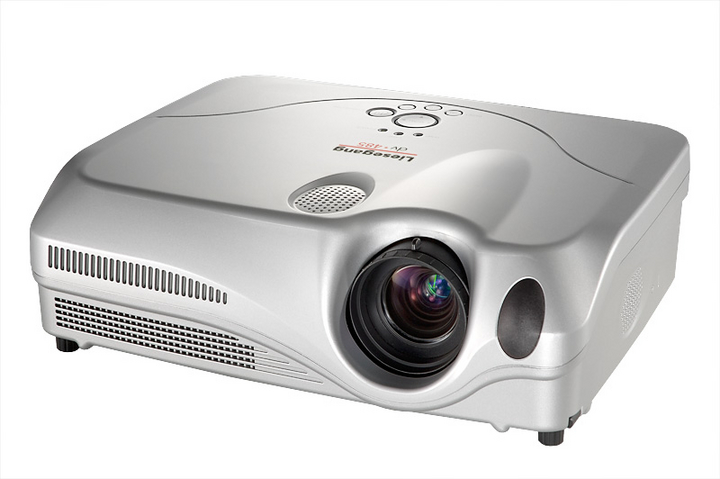

According to Liesegang, the dv • 485 model provides 2500 ANSI lumens, a contrast ratio of 500:1 alongside a XGA 1024 x 768 resolution. The manufacturer lists the lamp life at 2000 hours. Regarding projection size, the value of 2500 ANSI lumens allows for an image width of up to 435 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 290 cm. The projector was released in 2005 and is officially no longer distributed by Liesegang.
Display Type
3 x 0,7" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2500 / 2000 im Eco Mode
Screen
833 Lux (200 cm Screen width)
Contrast
500:1 full on/off
500:1 full on/off
Black Level
5,0000 min. Lumen
1,676 min. Lumen
Offset
40% 15 cm under screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
