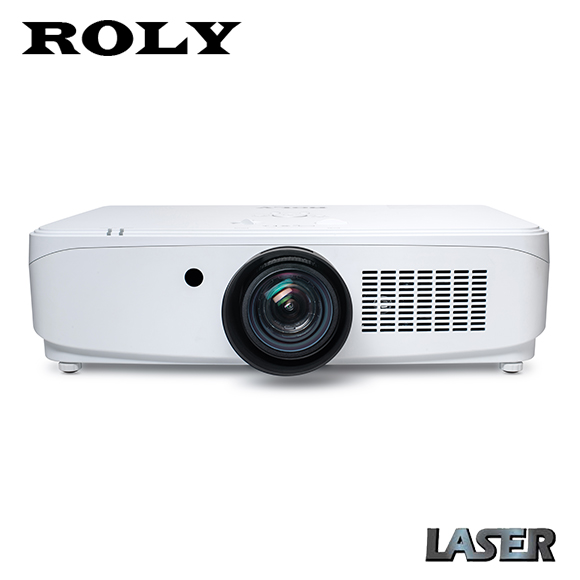

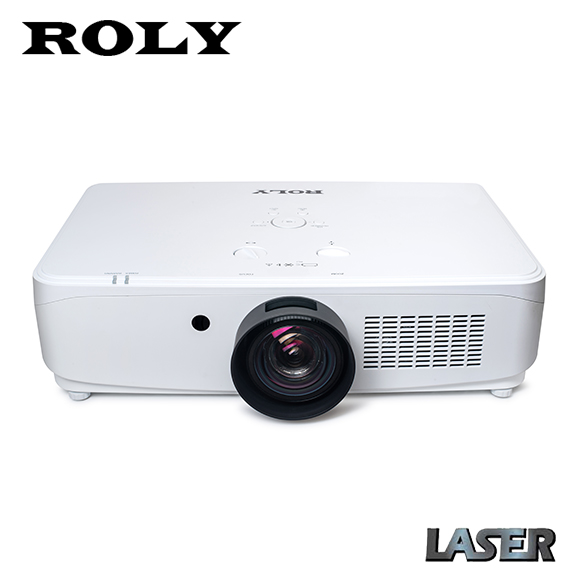

Based on LCD technology, the Roly RL-6200WT projects images in a Short Distance environment, with technical specs listing 6000 ANSI lumens, a contrast of 3500000:1 and a WXGA 1280 x 800 resolution. Using this laser phosphor technology, the light source runtime is rated at 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction. The amount of leeway the lens provides can be checked in the Distance Calculator. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 136 cm. Looking at practical performance, up to 787 cm can be illuminated with 6000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 525 cm. For media input, video signals up to 1080P are supported. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs.
Display Type
3 x 0,64" LCD Panel WXGA 16/10 Liquid Crystal Display

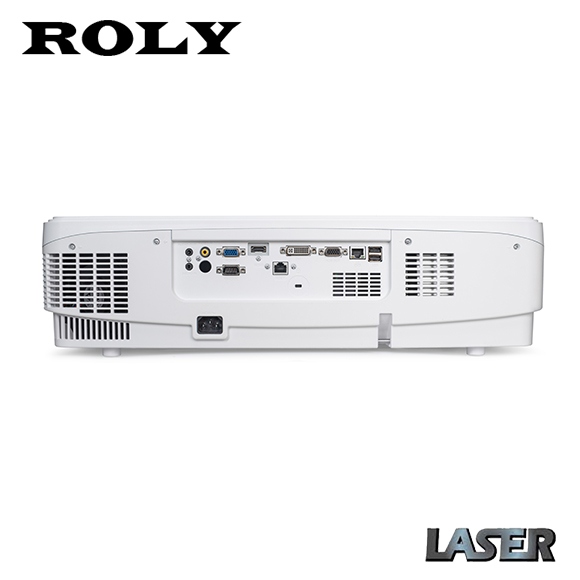

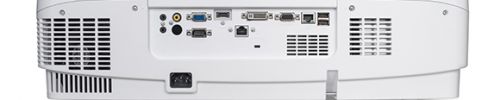

HDMI in
D-sub 15pin in und out
DVI-I (Dual Link) in
Cinch Video in
Mini Jack Audio in und out
2x USB-A in
RS232C Din 9 pin in
RJ45 in
HDBaseT (Optional)
Full HD 1080P compatible
Product Sheet english
