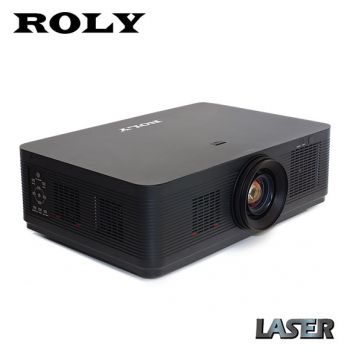

Based on LCD technology, the Roly RL-85U projects images in a Stationary environment, with technical specs listing 8500 ANSI lumens, a contrast of 3500000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer lists the lifespan for this model at 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Projector Calculator is available to calculate the exact dimensions. Regarding projection size, the value of 8500 ANSI lumens allows for an image width of up to 937 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 625 cm. For media input, video signals up to 1080P and 4K are supported. An additional 360° projection capability allows the device to be oriented at almost any angle. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs.
Display Type
3 x 0,76" LCD Panel WUXGA 16/9 Liquid Crystal Display
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser Diode
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
284 - 528 cm
Lux:
3778 Lux
Contrast:
3500000:1
Candela pro m²:
1203 cd/m²
Foot-Lamberts:
351 fL
68 cm
•
Focus
Powered
Zoom
Powered x1,8
Objective
Throw Ratio
optional
Audio
1 x 10W
Connections
HDMI in
DVI-D in
D-sub 15pin in und out
5x BNC
Cinch Video in
Mini Jack Audio in und out
2x USB-A in
RS232C Din 9 pin in
RJ45 in
HDBaseT in
Remote Control Mini Jack in und out
Full HD 1080P compatible Lens shift Funktion Automatic and manual vertical keystone correction Kensington Slot High Dynamic Range (HDR) 360° installable 24/7 continuous operation capable PJLink™ Lan network compatible.
Full HD 1080P compatible
Product Sheet english HC
