Digital Projection HIGHlite Cine 1080p 260 HC

Image Digital Projection HIGHlite Cine 1080p 260 HC
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Categorized in the Stationary segment, the HIGHlite Cine 1080p 260 HC projector from Digital Projection projects with a HDTV 1920 x 1080 resolution, alongside 2000 ANSI lumens and a contrast of 20000:1. In operating mode, the installed projector lamp offers a lifespan of 2000 hours.
An integrated lens shift provides significant leeway for placement. The lens can be adjusted to precisely align the image even with off-center installations. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projection Calculator.
Looking at practical performance, up to 454 cm can be illuminated with 2000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 303 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
This model dates back to 2012 and is no longer part of Digital Projection's current product range.
Display Type       3 x 0,65" DLP Chip
      HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2000
Screen
889 Lux (200 cm Screen width)
Contrast 20000:1 full on/off 20000:1 full on/off
Black Level 0,1000 min. Lumen 0,044 min. Lumen
Lens shift Vert.: +/-60% Hori.: +/-15%
 Lens shift
60%  68cm
60%  68cm
15%  30cm
15%  30cm
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
WUXGA 1920 x 1200 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with little light, max. 100 lumens.

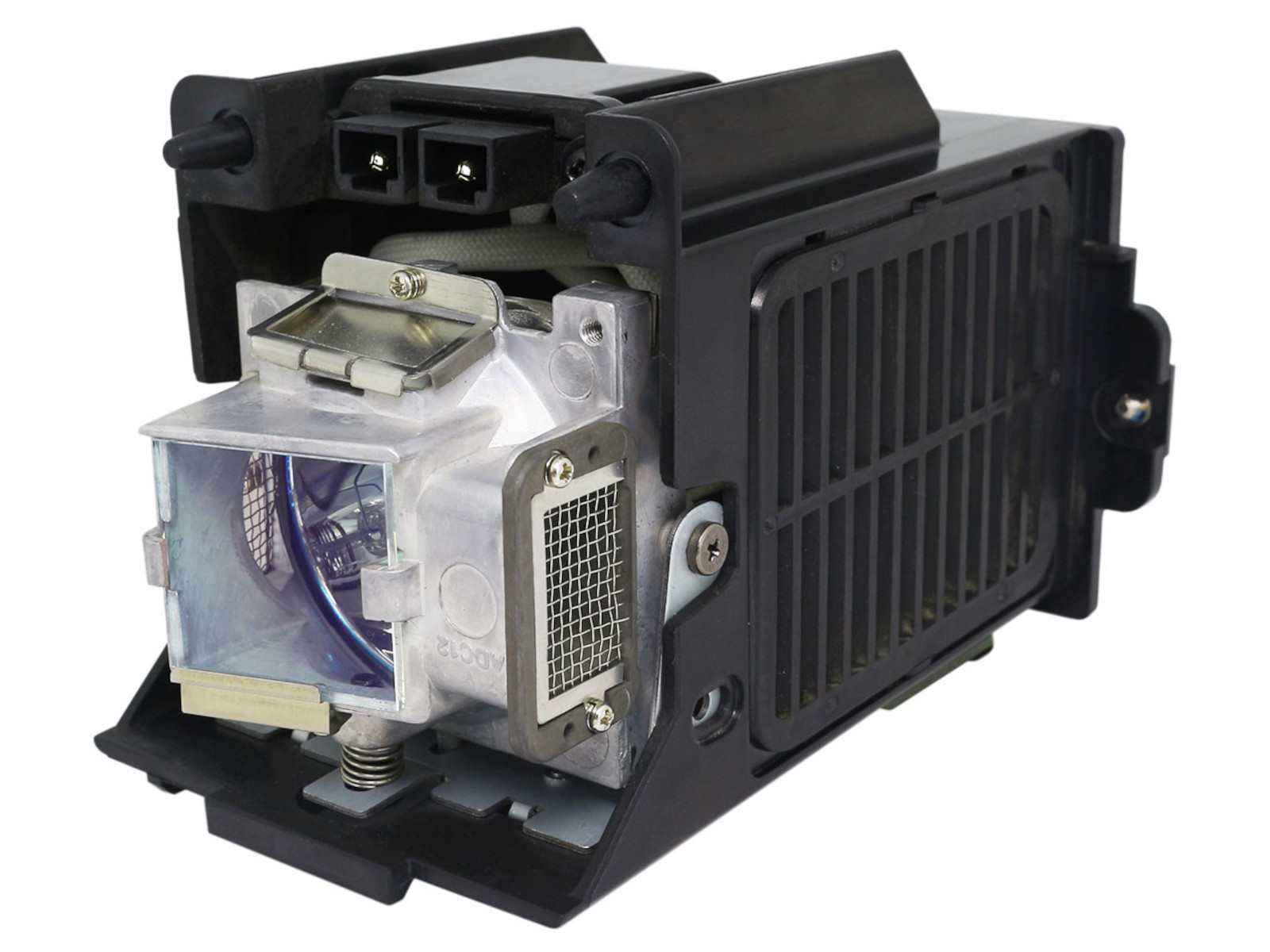

Light Source 260W Lamp
Article Nr.: 10-025
Order Lamp
73,68 - 528,54 €
Light Life 2000 h.
Operating Costs
| cheap costly |
1
 7,88% / 0,26 €
Calculated brightness quality Perfect
Lux: 889 Lux
Contrast: 20000:1
Candela pro m²: 284 cd/m²
Foot-Lamberts: 83 fL
68 cm


Screen width:cm
          Room:
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio Nein
Connections 2 x HDMI in
D-sub 15 pin in
5 x BNC RGBHV in
S-Video in
Cinch Video in
2 x 12V Trigger out
ES232C
RJ45 in
Ceiling Mounting Yes, is possible.
Power 450W
Size WxHxD 499,20 x 218,60 x 500,60 mm (19,7"x8,6"x19,7") 54,39 L/dm³
Operating Noise 36dB

Shift: 68 cm

Shift: 30 cm

Shift: 30 cm

Shift: 68 cm

Weight 21,32 kg / 47 lbs.
Keystone -
Illumination -
Frequenz V-sync: 43-85 Hz
Foot-Lamberts 83 fL / max. 454 cm screen width
Candela m² 284 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Lan network compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Digital Projection HIGHlite Cine 1080p 260 HC compared to others not current "Stationary" projectors.
Ansi-Lumen:
18 Weight:
92
Contrast:
1 dB:
94
Black level:
100 Power cons.:
95
Picture Total Points:40 Projector Total Points:94
Popularity Top 100
11 popularity points 13 popularity points 1 popularity points 15 popularity points 5 popularity points 7 popularity points
Points:
7
Ranking: 392 (From: 2536)
Optional accessories
Osram bulb only NLMP2045073,68 €
lamp ruby Ruby-LMP20450122,58 €
lamp Original110-025528,54 €
ceiling bracket white Halterung45W83,60 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
4.34 - 6.76: 1 zoom lens 110-807 4.34-6.76:1 868-1352 m +/-60% +/-15% Powered
2.9 - 4.34: 1 zoom lens 110-806 2.9-4.34:1 580-868 m +/-60% +/-15% Powered
2.17 - 2.9: 1 zoom lens 110-805 2.17-2.9:1 434-580 m +/-60% +/-15% Powered
1.74 - 2.17: 1 zoom lens 110-804 1.74-2.17:1 348-434 m +/-60% +/-15% Powered
1.45 - 1.74 : 1 zoom lens 110-803 1.45-1.74:1 290-348 m +/-60% +/-15% Powered
0.77 : 1 fixed lens 110-808 0.77:1 154 m +/-20% +/-5% No Zoom
1.16 : 1 fixed lens 110-809 1.16:1 232 m +/-20% +/-5% No Zoom
Status 2012 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Digital Projection Website
Product Sheet english
Product Sheet english HC
User Manual english (7.13 MB)
