Eiki EK-308UA

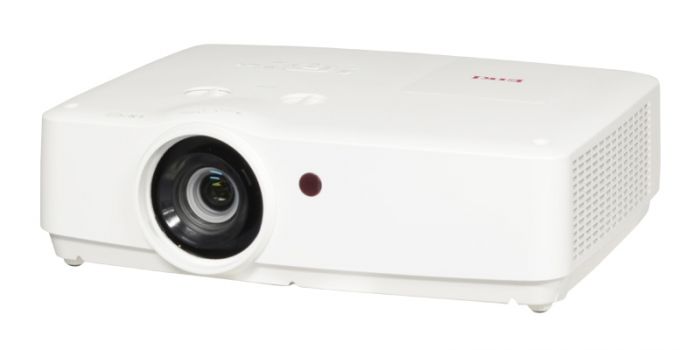

Image Eiki EK-308UA
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Equipped with LCD technology, the Eiki EK-308UA offers 6000 ANSI lumens, a contrast of 10000:1 and is designed as a versatile projector. The manufacturer specifies a runtime of 3000 hours for this projector's lamp.
Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The Projection Calculator helps find the optimal installation dimensions.
Looking at practical performance, up to 787 cm can be illuminated with 6000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 525 cm.
Regarding signal processing, the model is compatible with incoming 1080P content as well as 3D. The built-in HDMI-MHL (Mobile High-Definition Link) port enables screen mirroring from a smartphone while simultaneously charging it. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance.
The projector was released in 2022 and is officially no longer distributed by Eiki.
Display Type       3 x 0,64" LCD TFT Panel
      WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
6000
Screen
2667 Lux (200 cm Screen width)
Contrast 10000:1 full on/off 10000:1 full on/off
Black Level 0,6000 min. Lumen 0,267 min. Lumen
Lens shift Vert.: +/-45% Hori.: +/-9%
 Lens shift
45%  51cm
45%  51cm
9%  18cm
9%  18cm
+ Projector
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) |
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source 300W Lamp
Article Nr.: 22040013
Light Life 3000 h. 4000 h. in Eco Mode
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
384 - 422 cm
Lux: 2667 Lux
Contrast: 10000:1
Candela pro m²: 850 cd/m²
Foot-Lamberts: 248 fL
51 cm

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,64
Objective F=1,6-1,9 f=17,8-29,10 mm
Throw Ratio 1,92-2,11:1 show
Audio 1 x 10W
Connections 2 x HDMI in (1 x MHL)
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting Yes, is possible.
Power 420W
Size WxHxD 395 x 128 x 318 mm (15,6"x5"x12,5") 16,08 L/dm³
Operating Noise 40,9 / 35,9 dB in Eco Mode
Key: 222 cm
Shift: 51 cm
Key: 103 cm
Shift: 18 cm
Key: 103 cm
Shift: 18 cm
Key: 222 cm
Shift: 51 cm

Weight 4,45 kg / 9,81 lbs.
Keystone Vert.: +/-30°
Hori.: +/-15°
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 24 - 85 Hz
Foot-Lamberts 248 fL / max. 787 cm screen width
Candela m² 850 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Lan network compatible.
Crestron®-Software compatible.
AMX
Screen Mirroring über HDMI MHL
In Comparison
The Eiki EK-308UA compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
66 Weight:
54
Contrast:
1 dB:
49
Black level:
93 Power cons.:
13
Picture Total Points:53 Projector Total Points:39
Popularity Top 100
4 popularity points 5 popularity points 1 popularity points 1 popularity points 4 popularity points 4 popularity points
Points:
4
Ranking: 4354 (From: 7736)
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2022 Discontinued (EOL) // Last update of the data: 2026-06-09
Created:
Data
Eiki Contact
Product Sheet english
Product Sheet english HC
User Manual english (26.43 MB)
