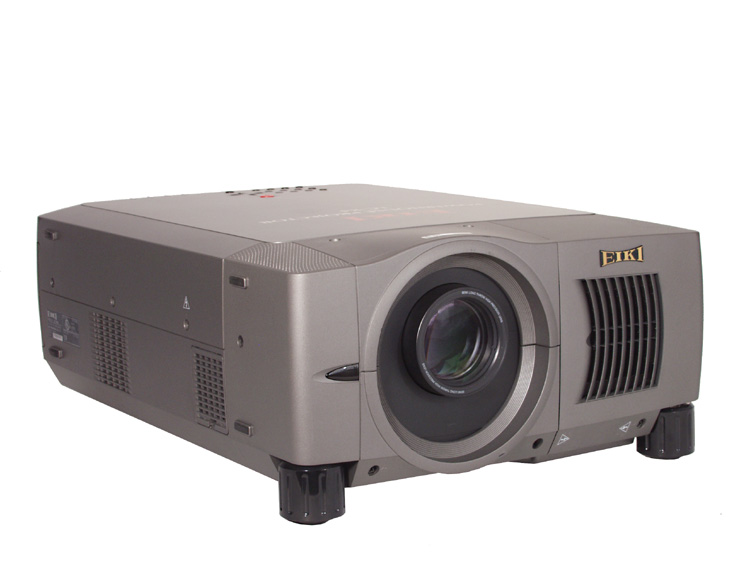

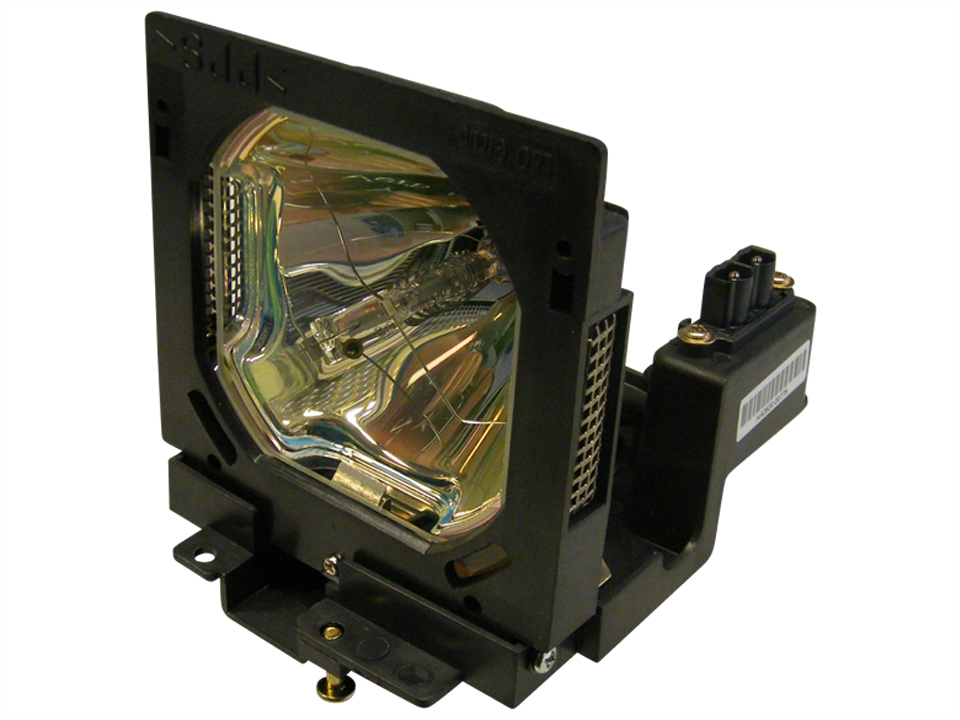

The projector LC X5 by Eiki operates as a LCD device with 6500 ANSI lumens, a XGA 1024 x 768 resolution and a contrast of 1100:1. According to Eiki, the included lamp lasts up to 2000 hours. In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Projection Calculator. A look at the light output reveals: The 6500 ANSI lumens are sufficient to illuminate an image width of up to 702 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 468 cm. The projector was released in 2002 and is officially no longer distributed by Eiki.
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Video Modes
NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Input Module 1: Data: DVII x 1 data, RCA x 2 audio, 8 pin DIN x 1 control (provides DVI digital, und HD 15 analog via adapter) Input Module 2: 2. RGB/DVD/HDTV: BNCx5 video, RCAx 2 audio, 8-pin DINx1 control (RGB G-sync, RGB H+V, RGBHV, Component und Y, Pb/Cb, Pr/Cr) Input Module 3: 3. Y/c: BNC 2 x & S-Video x 1 video, RCA x 2 audio Audio Out (Stereo) RCA x 2 (L&R) RS232C und out
Ceiling Mounting
Yes, is possible.
Power
-
Size WxHxD
439 x 230 x 605 mm (17,3"x9,1"x23,8") 61,09 L/dm³
Operating Noise
45dB
Shift: 75 cm
Shift: 75 cm
Weight
22,90 kg / 50,49 lbs.
Keystone
-
Illumination
90%
Frequenz
H-sync: 15-128 kHz V-sync: 50-120 Hz Range max.: 230 MHz
Lens shift Funktion motorisch max.
