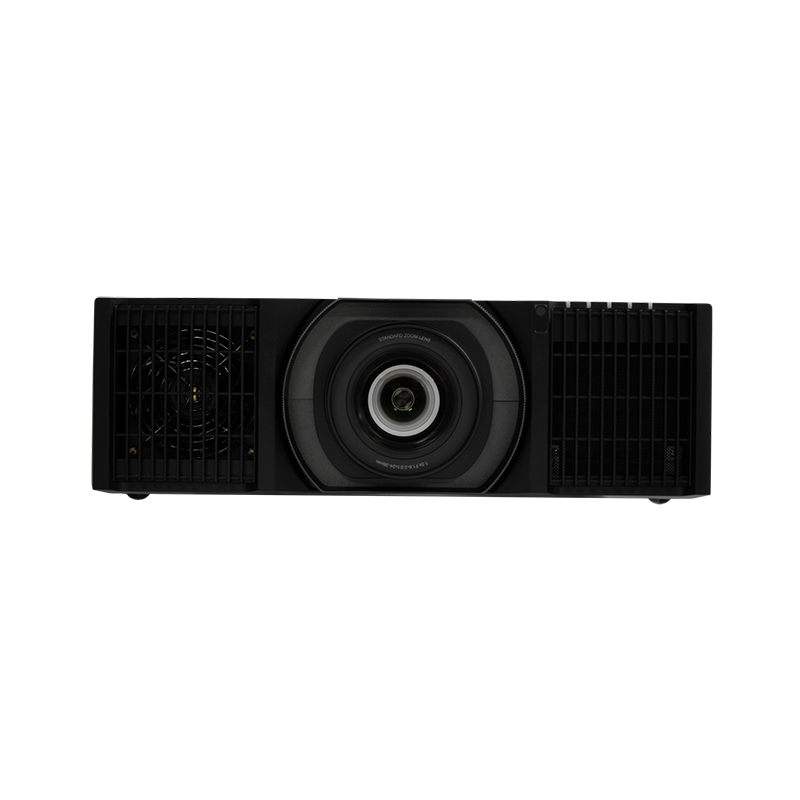

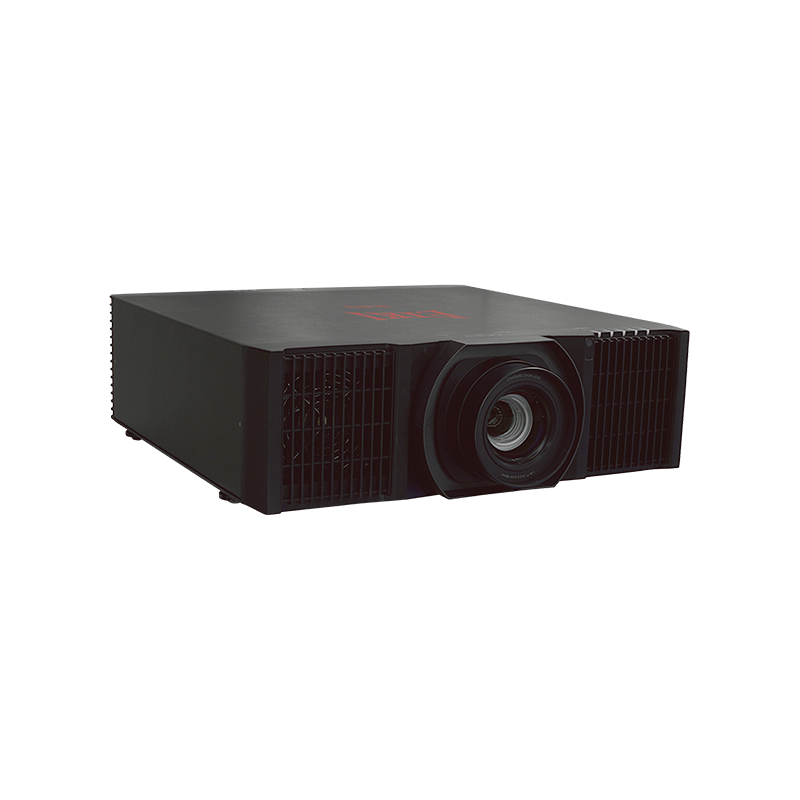

With the EK-831U, Eiki offers a 3D-Laser-DLP projector that features 12000 ANSI lumens, a contrast of 20000:1 and a resolution of WUXGA 1920 x 1200. With its laser unit, the projector offers a specified light lifespan of 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. A major advantage for professional installations is the ability to use interchangeable lenses, allowing the projector to adapt to highly varied projection distances. Which optic is required for a specific case can easily be calculated via the Projection Calculator. Regarding projection size, the value of 12000 ANSI lumens allows for an image width of up to 1113 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 742 cm. For media input, video signals up to 1080P as well as 3D are supported. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. The projector was released in 2020 and is officially no longer distributed by Eiki.
Display Type
1 x 0,67" DMD DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
Laser Phosphor
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
5333 Lux
Contrast:
20000:1
Candela pro m²:
1696 cd/m²
Foot-Lamberts:
495 fL
68 cm
•
Focus
Powered
Zoom
Powered 1,6
Objective
Throw Ratio
optional
Audio
Nein
Connections
BNC x 2 (IN/OUT)
1 x RJ45
HDMI x 1 (Version 1,4)
1 x DVI-D
D-Sub 15 x 2 (IN / OUT)
5 BNC x 1
1 x Mini DIN 4 pin
2 x Mini DIN 3 pin
1 x RCA Yellow
1 x USB A
1 x USB B
2 x 3,5 mm Mini Jack
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode 360° installable Picture-in-Picture Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible.
Real Full HD 3D
