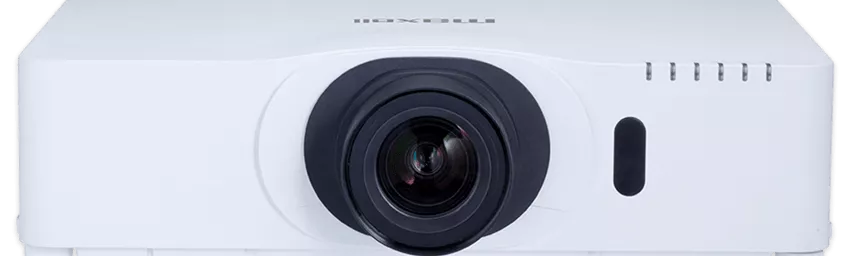

Categorized in the Stationary segment, the MC-X8170 projector from Maxell projects with a XGA 1024 x 768 786.432 Pixel resolution, alongside 7000 ANSI lumens and a contrast of 3000:1. In operating mode, the installed projector lamp offers a lifespan of 2000 hours. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Lens Calculator is available to calculate the exact dimensions. Looking at practical performance, up to 729 cm can be illuminated with 7000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 486 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. An additional 360° projection capability allows the device to be oriented at almost any angle. Also on board is a local media player that allows reading and playing content directly from storage media. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2013 and is no longer part of Maxell's current product range.
XGA 1024 x 768 786.432 Pixel UXGA 1600 x 1200 compressed
Video Modes
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: • JPEG (.jpeg, .JPEG)
• Bitmap (.bmp)
• PNG (.png)
• GIF (.gif)
• Movie (.avi, .mov)
Application
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.

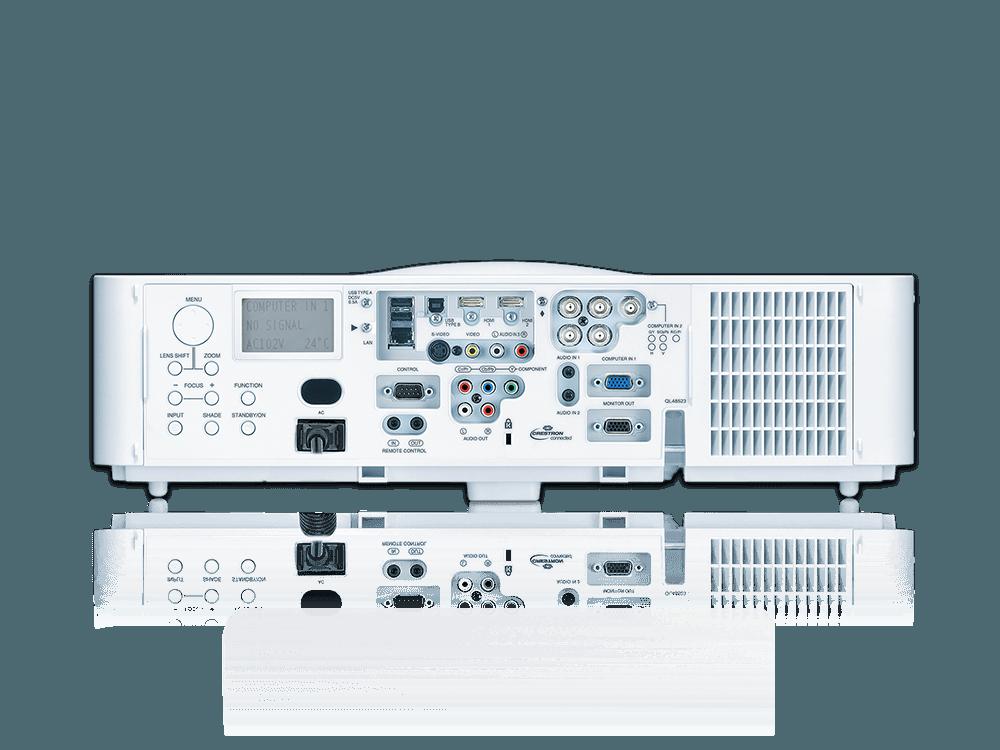

2 x HDMI in
5 x BNC RGBHV in
2 x D-sub 15 pin in
S-Video in
Cinch Video in
Cinch Stereo in
USB Typ A,B in
Mini Jack Audio in und out
RS232C Din 9 pin
RJ45 in
Full HD 1080P compatible Lens shift Funktion Integrated Mediaplayer Freeze Blackboard Modus User logo Eco Mode Automatic and manual vertical keystone correction Kensington Slot Digital image shift 360° installable Picture-in-Picture Password protection PJLink™ Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. Picture next to picture DICOM support Status monitor
Full HD 1080P compatible
Product Sheet english
