XGIMI V10


Chinese Version

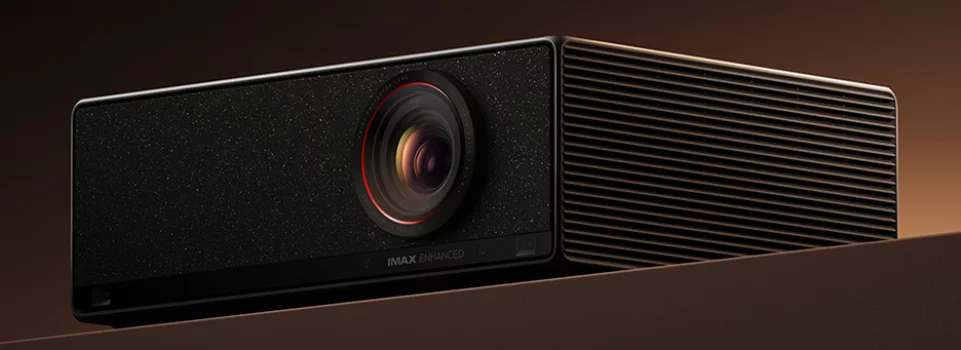

Image XGIMI V10
Customer review
Offer Ads
Discover the popular projector on Amazon.
Model Overview The XGIMI V10 is a DLP projector offering 5400 ANSI lumens, a contrast of 5000000:1 and a resolution of UHD (4K2K) 3840 x 2160. With its built-in laser light source, the projector achieves a manufacturer-stated lifespan of 20000 hours – calculating to 13.7 years at four hours of use per day.
An integrated lens shift provides significant leeway for placement. The lens can be adjusted to perfectly align the image even with off-center installations – exact dimensions are provided by the Projector Calculator.
Because the manufacturer specifies brightness in CVIA lumen values, we have determined an ANSI lumen value for better comparability. Regarding projection size, the value of 5400 ANSI lumens allows for an image width of up to 640 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 427 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. An additional 360° projection capability allows the device to be oriented at almost any angle. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type 1 x 0,78" DMD DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
~5400 / 6000 CVIA Lumen
Screen
2400 Lux (200 cm Screen width)
Contrast 5000000:1 5000000:1
Black Level 0,0011 min. Lumen 0 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-20%
 Lens shift
50%  56cm
50%  56cm
20%  40cm
20%  40cm
+ Projector
Resolution UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, EDTV 480p, 576p
Application High-End Homecinema | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source Laser
Light Life 20000 h.
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
240 - 360 cm
Lux: 2400 Lux
Contrast: 5000000:1
Candela pro m²: 764 cd/m²
Foot-Lamberts: 223 fL
56 cm

Screen width:cm
          Room:
•
Focus Automatic
Zoom Powered 1,5
Objective -
Throw Ratio 1,2-1,8:1 show
Audio -
Connections HDMI 2.1 (eARC) in
HDMI 2.1 in
Mini Jack Audio out
S/PDIF
USB-A 2.0 in
USB-A 3.0 in
Micro USB (Service)
Wired Remote in
RS232 in
RJ45 in
Bluetooth 5.2
Ceiling Mounting Yes, is possible.
Size WxHxD 440 x 170 x 355 mm (17,3"x6,7"x14") 26,55 L/dm³
Power 410W
Lens shift

Shift: 56 cm


Shift: 40 cm
+
+
SCREEN


Shift: 40 cm

Shift: 56 cm

Operating Noise 32dB
Weight 11,00 kg / 24,25 lbs.
Keystone Vertical automatic and horizontal
Illumination -
Frequenz -
Foot-Lamberts 223 fL / max. 640 cm screen width
Candela m² 764 cd/m²
Features 4K UHD (Ultra High Definition)
Automatic and Manual Vertical Keystone Correction
High Dynamic Range (HDR)
360° Installation Capable
W-Lan Netzwerk kompatibel.
Lan Netzwerk kompatibel.
Auto Screen Fit
Auto 4P Keystone
IMAX Enhanced
Dolby Vision
Dolby Audio
DTS:X Virtual
&
916;E<1 color accuracy
HDR10+
Screen Mirroring Miracast, Airplay, Windows
In Comparison
The XGIMI V10 compared to others current "High-End Homecinema" projectors.
Ansi-Lumen:
35 Weight:
82
Contrast:
100 dB:
31
Black level:
100 Power cons.:
81
Picture Total Points:78 Projector Total Points:65
Popularity Top 100
0 popularity points in May 8 popularity points in June 6 popularity points in July 6 popularity points in August 12 popularity points in September 15 popularity points in October
Points:
15
Ranking: 15 (From: 59)
Live-Trend (Last 3 days)   LiveLIVE
Points: 20 +5% Trend
Optional accessories
ceiling bracket blackHalterung4583,60 €
ceiling bracket whiteHalterung45W83,60 €
Status 2026 Current model // Last update of the data: 2026-07-09
