Yamaha LPX 510

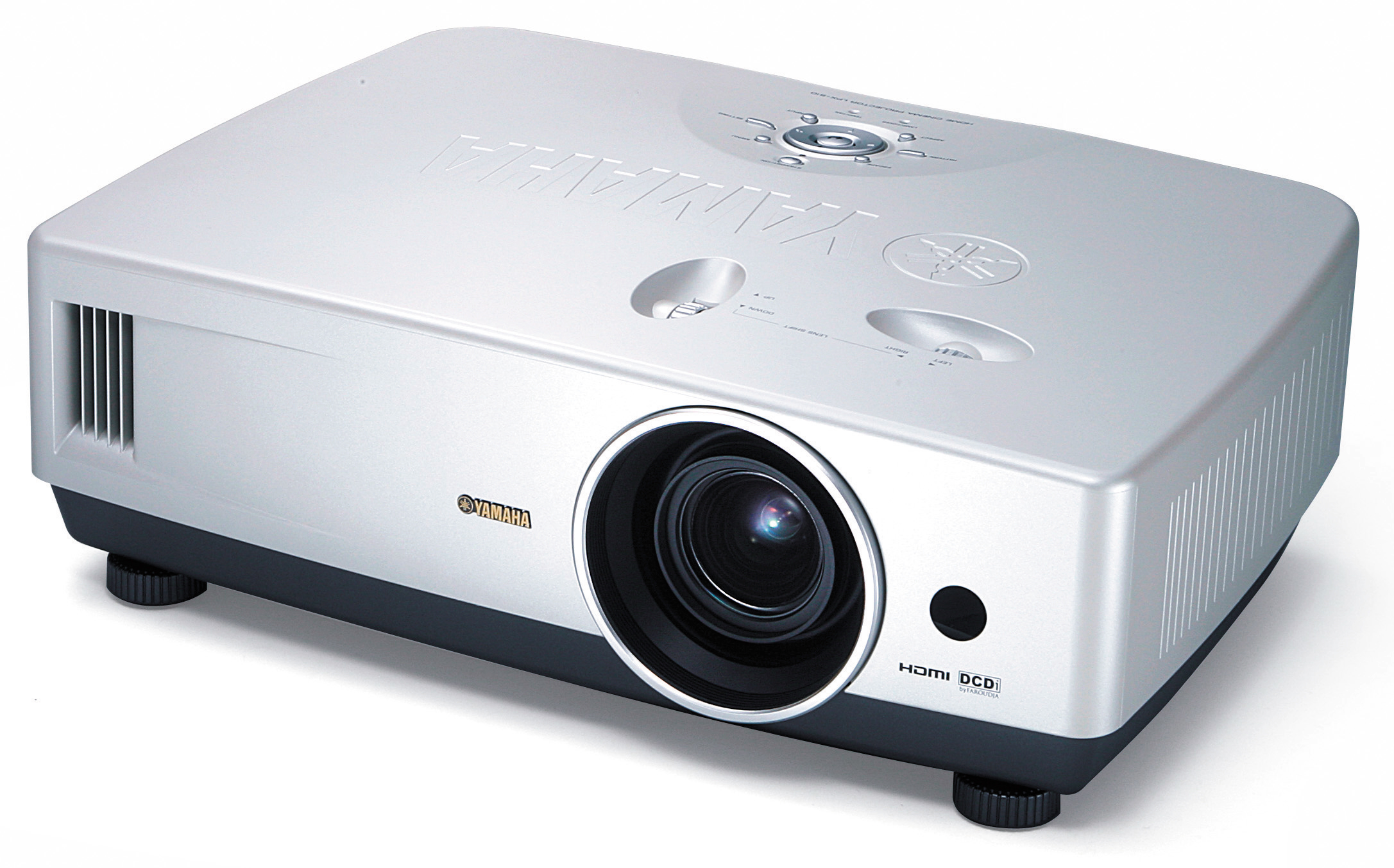

Image Yamaha LPX 510
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The equipment of the Yamaha LPX 510 projector includes 1000 ANSI lumens, a contrast of 1200:1 with a HDTV 1280 x 720 display. The manufacturer lists the lamp life at 2000 hours.
Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment; exact values can be calculated using the Projector Calculator.
Looking at practical performance, up to 321 cm can be illuminated with 1000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 214 cm.
The projector was released in 2004 and is officially no longer distributed by Yamaha.
Display Type       3 x 0,7" LCD TFT Panel
      HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
 1000 (Iris offen, Filter aus)
Screen
 444 Lux (200 cm Screen width)
Contrast 1200:1 (iris 750%, filter an) 1200:1 (iris 750%, filter an)
Black Level 0,8333 min. Lumen 0,371 min. Lumen
Lens shift Vert.: +100% -50% Hori.: +/-50% motorisch
 Lens shift
 		100%  113cm
50%  56cm
50%  100cm
50%  100cm
+ Projector
Resolution HDTV 1280 x 720
921.600 Pixel
1920 x 1080 compressed
Video Modes NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N and PAL60 480i, 576i, 480p, 576p,720p,1035i 1080i,
Disc Recognition DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray
Application Homecinema | Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 200W UHP Lamp
Article Nr.: PJL5020
Order Lamp
56,83 - 140,40 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Good (1.8)
276 - 414 cm
Lux: 444 Lux
Contrast: 1200:1
Candela pro m²: 140 cd/m²
Foot-Lamberts: 41 fL
113 cm



Screen width:cm
          Room:
•
Focus Powered
Zoom Powered 1,48
Objective F=2,1-4,3 f=21,4-31,7 mm
Throw Ratio 1,38-2,07:1 show
Audio nein
Connections 2 x 5 RGBHV über Cinch in
HDMI in
Cinch Video in
S-Video in
RS232C D sub 9pin
12V Trigger out
Ceiling Mounting Yes, is possible.
Power 290W standby 3W
Size WxHxD 440 x 156,50 x 321 mm (17,3"x6,2"x12,6") 22,03 L/dm³
Operating Noise 34 / 27 dB in Eco Mode
Key: 74 cm
Shift: 113 cm

Shift: 100 cm

Shift: 100 cm
Key: 74 cm
Shift: 56 cm
Weight 6,30 kg / 13,89 lbs.
Keystone Vert.: +/-15°
Illumination -
Frequenz -
Foot-Lamberts 41 fL / max. 321 cm screen width
Candela m² 140 cd/m²
Features Lens shift Funktion motorisch
Eco Mode
sRGB
Gamma correction
Dynamic iris
Overscan adjustable
Größenangabe Höhe 137 mm im Prospekt ist nicht die Gesamthöhe.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Yamaha LPX 510 compared to others not current "Homecinema" projectors.
Ansi-Lumen:
8 Weight:
100
Contrast:
1 dB:
53
Black level:
91 Power cons.:
94
Picture Total Points:33 Projector Total Points:82
Popularity Top 100
6 popularity points 6 popularity points 1 popularity points 4 popularity points 4 popularity points 5 popularity points
Points:
5
Ranking: 692 (From: 990)
Please note The height of 137 mm given in the brochure is not the total height.
Optional accessories
Philips bulb only NLMP4300110,42 €
lamp ruby Ruby-LMP4300140,40 €
lamp OriginalPJL-520EOL €
Compatible lamp LMP-K430056,83 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2004 Discontinued (EOL) // Last update of the data: 2026-06-09
