Dell S500wi

Image Dell S500wi
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The S500wi is a 3D-BrilliantColor-DLP projector by Dell, whose specifications list 3200 ANSI lumens, a contrast of 2300:1 and a WXGA 1280 x 800 resolution. In operating mode, the installed projector lamp offers a lifespan of 2500 hours.
A look at the light output reveals: The 3200 ANSI lumens are sufficient to illuminate an image width of up to 575 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 383 cm.
For media input, video signals up to 1080P are supported. Also on board is a local media player that allows reading and playing content directly from storage media. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Specifically for the educational or business sector, an interactive whiteboard function is also integrated.
Since entering the market in 2011, production has been discontinued; the manufacturer no longer actively offers the model. In our projector directory, the device still generates high interest.
Display Type 1 x 0,65" DC3 DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3200
Screen
1280 Lux (200 cm Screen width)
Contrast 2300:1 full on/off 2300:1 full on/off
Black Level 1,3913 min. Lumen 0,557 min. Lumen
Offset -
Resolution WXGA 1280 x 800
1.024.000 Pixel
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: JPEG PtG
3D Compatibility Frame Sequential (3D Ready)
Application Whiteboard | Training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source -
Article Nr.: 725-10263
Order Lamp
81,52 - 329,20 €
Light Life 2500 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
60 cm (no Zoom)
Lux: 1280 Lux
Contrast: 2300:1
Candela pro m²: 408 cd/m²
Foot-Lamberts: 119 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom No Zoom
Objective F=2,71 f=4,415mm
Throw Ratio 0,3:1
Audio 2 x 5W
Connections HDMI 1.3 in
D-sub 15 pin in
S-Video in
Cinch Video in
RJ45 in
RS232C
12V Trigger out
USB Typ A,B
Ceiling Mounting Yes, is possible.
Size WxHxD 326,8 x 191 x 420,5 mm (12,9"x7,5"x16,6") 26,15 L/dm³
Power 345W
Keystone
Key: 42 cm

Not
possible
+
+
SCREEN

Without Offset


Not
possible
Key: 50 cm

Operating Noise 31 dB in Eco Mode
Weight 7,08 kg / 15,61 lbs.
Keystone Vert. +40°-35°
Illumination 80%
Frequenz -
Foot-Lamberts 119 fL / max. 575 cm screen width
Candela m² 408 cd/m²
Features Integrated Media Player
Freeze
Eco Mode
sRGB
Password Protection
BrilliantColor™
Remote Control with Laser Pointer
Web Browser Control
W-Lan Netzwerk kompatibel.
Lan Netzwerk kompatibel.
Short Throw Projector
Crestron® Software compatible.
Interactive whiteboard.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Dell S500wi compared to others not current "Whiteboard" projectors.
Ansi-Lumen:
30 Weight:
96
Contrast:
1 dB: -
Black level:
96 Power cons.:
97
Picture Total Points:42 Projector Total Points:-
Popularity Top 100
44 popularity points in May 24 popularity points in June 40 popularity points in July 42 popularity points in August 18 popularity points in September 11 popularity points in October
Points:
11
Ranking: 244 (From: 296)
Live-Trend (Last 3 days)   LiveLIVE
Points: 29 +18% Trend
Optional accessories
Philips bulb only NLMP20474104,41 €
lamp ruby Ruby-LMP20474119,74 €

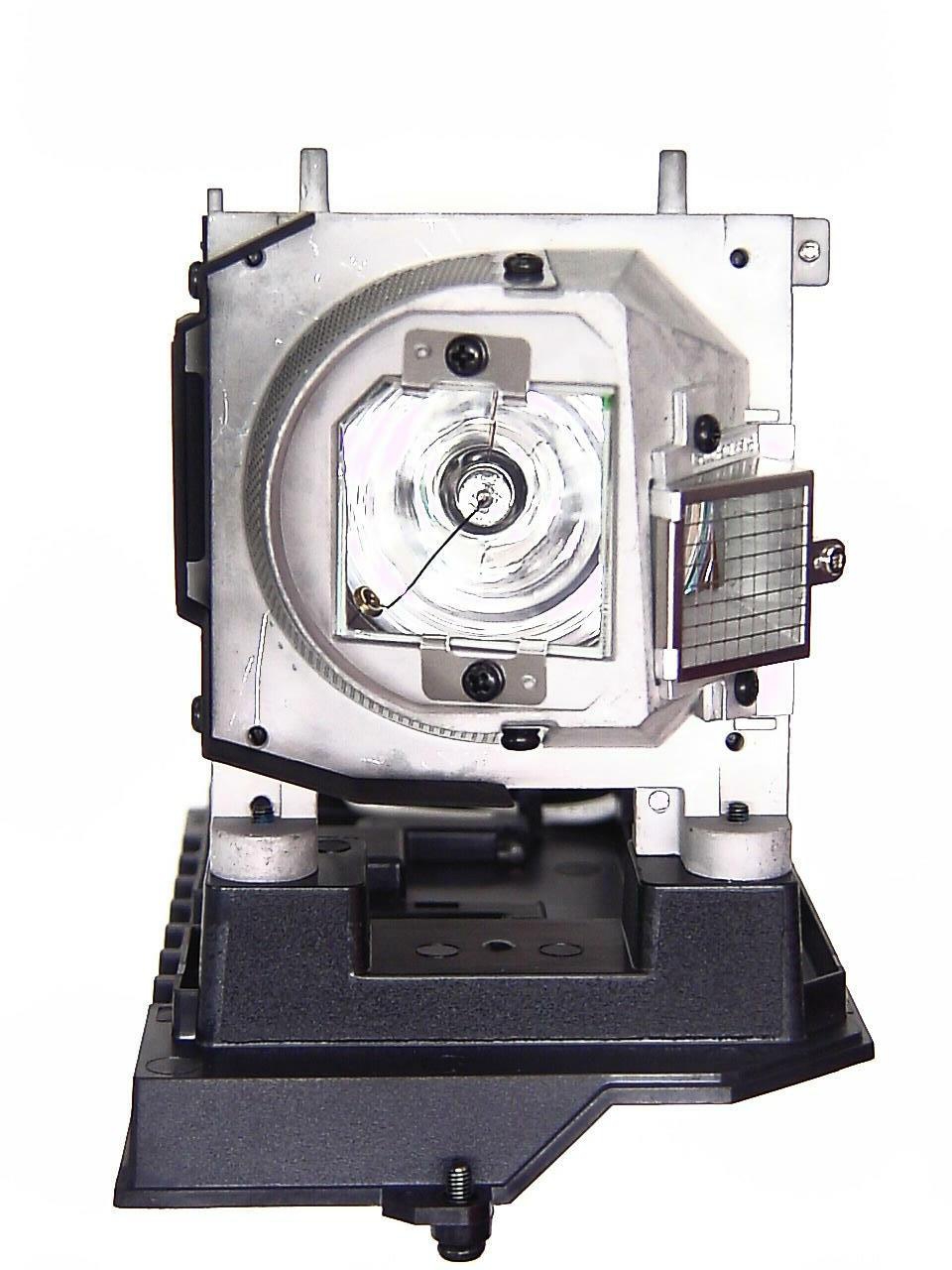

lamp Original725-10263 / 331-1310 / KT74N329,20 €
Compatible lamp LMP-K2047381,52 €
Universal Remote Fernb-uni-V322,31 €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2011 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Dell Website
Product Sheet english
Product Sheet english HC
User Manual english (7.27 MB)
