Planar PR6020

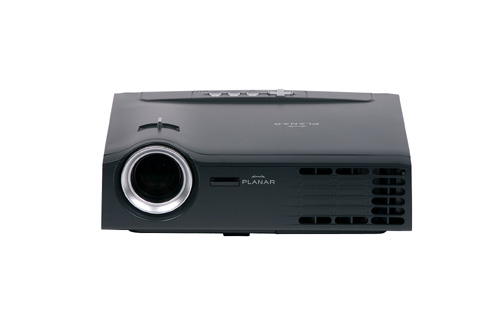

Image Planar PR6020
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Equipped with DLP technology, the Planar PR6020 offers 2000 ANSI lumens, a contrast of 2000:1 and is designed as a versatile projector. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary.
A look at the light output reveals: The 2000 ANSI lumens are sufficient to illuminate an image width of up to 389 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 259 cm.
This model dates back to 2006 and is no longer part of Planar's current product range.
Display Type       1 x DLP Chip
      XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 2000
Screen
 667 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 1,0000 min. Lumen 0,334 min. Lumen
Offset 57,5% 11 cm over screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
SXGA+ 1400 x 1050 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Micro-Portabel | Mobile presentations and external training.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 200W Lamp
Article Nr.: 997-3345-00
Order Lamp
70,36 70,36 €
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Perfect
380 - 420 cm
Lux: 667 Lux
Contrast: 2000:1
Candela pro m²: 212 cd/m²
Foot-Lamberts: 62 fL
86 cm


Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,1
Objective -
Throw Ratio 1,9-2,1:1 show
Audio 1W Mono
Connections D-sub 15 pin in
S-Video in
Cinch Video in
USB Typ A und B
Ceiling Mounting Yes, is possible.
Power 250W / 10W standby
Size WxHxD 169 x 62 x 216 mm (6,7"x2,4"x8,5") 2,26 L/dm³
Operating Noise 31 dB in Eco Mode
Key: 195 cm
Key: 23 cm
Weight 1,27 kg / 2,8 lbs.
Keystone Vert.: +/-16°
Illumination -
Frequenz H-sync: 15,31-80 kHz
V-sync: 56-85 Hz
Foot-Lamberts 62 fL / max. 389 cm screen width
Candela m² 212 cd/m²
Features Freeze
Eco Mode
Kensington Slot
sRGB
Remote control with laser pointer
4 segments colour wheel
Screen Mirroring -
In Comparison
The Planar PR6020 compared to others not current "Micro-Portabel" projectors.
Ansi-Lumen:
62 Weight:
16
Contrast:
1 dB: 0
Black level:
86 Power cons.:
29
Picture Total Points:50 Projector Total Points:0
Popularity Top 100
22 popularity points 17 popularity points 1 popularity points 3 popularity points 5 popularity points 8 popularity points
Points:
8
Ranking: 273 (From: 393)
Optional accessories
Osram bulb only NLMP1570870,36 €
lamp Original997-3345-00EOL €
Ceiling Mount 100-120 Halterung10047,86 €
Status 2006 Discontinued (EOL) // Last update of the data: 2026-06-09
