Brief Introduction
Beta 2.5 |

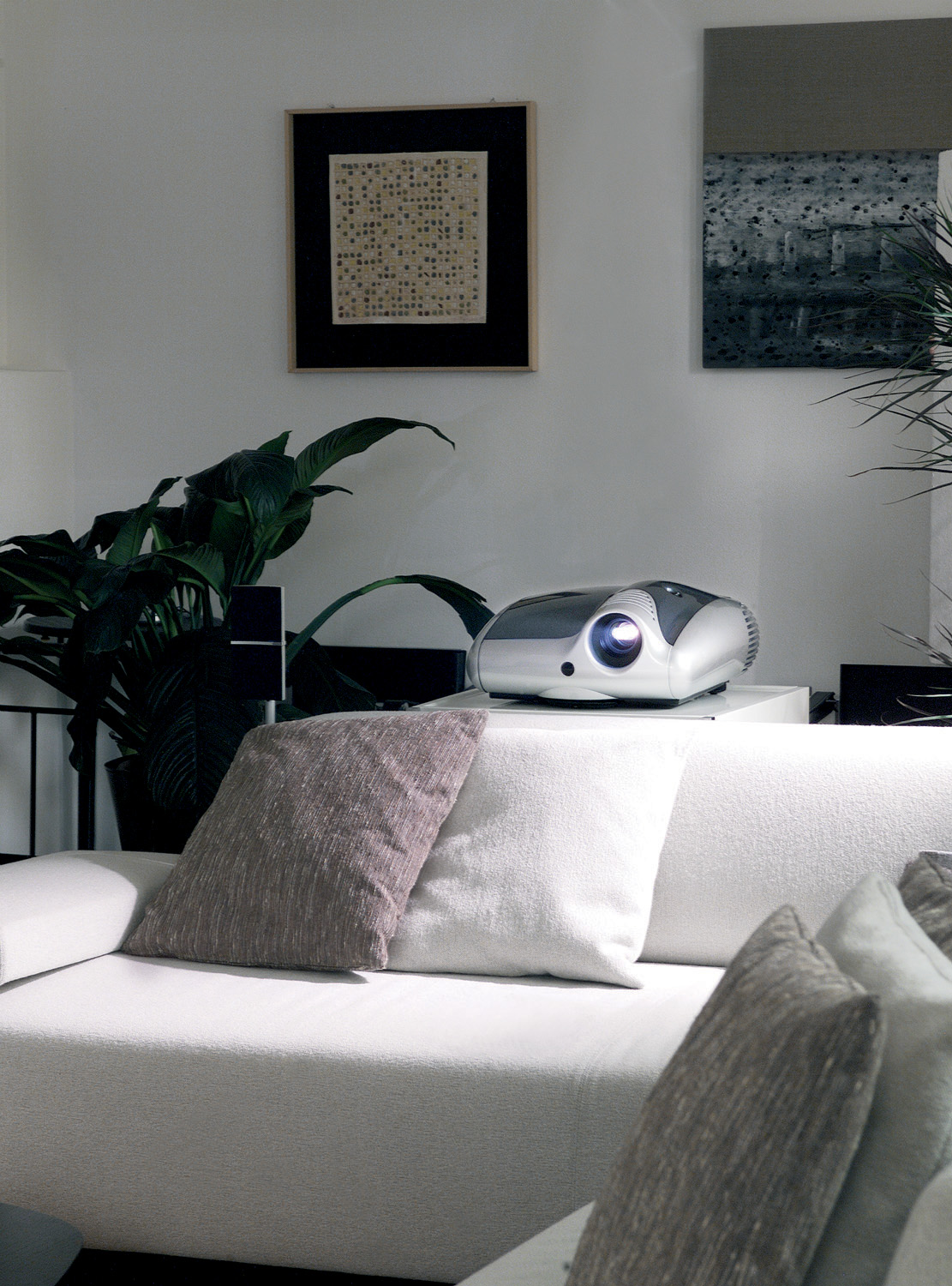

A brief introduction to the SIM2 Grand Cinema C3X. The home cinema DLP projector has an HDTV 1280 x 720 resolution and a contrast of 6500:1. The projector also offers a lens shift function, which makes setting up the image childs play. The projector can illuminate an image width of up to 508 cm thanks to its 2500 Ansi lumens. In room lighting, however, the picture width should ideally be less than 339 cm. The projector can also display 1080P without any problems. The model was built by SIM2 in 2005 and is no longer current. Unfortunately, we can no longer offer a replacement lamp for this model, neither original nor replica.
|
| Display Type |
3 x HD2+ DC3 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
1111 Lux (200 cm Screen width) |
| Contrast |
6500:1 full on/off |
6500:1 full on/off
|
| Black Level |
0,3846 min. Lumen |
0,171 min. Lumen |
| Lens shift |
Vert.: +/-50%
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
250W UHP Lamp
Article Nr.: Z930100326
|
|
| Light Life |
1500 h. |
| Operating Costs |
-
|
|
300 - 400 cm
|
 |
|
Lux: |
1111 Lux |
|
Room light max.: |
222 Lux |
|
Candela pro m²: |
353 cd/m² |
|
Foot-Lamberts: |
103 fL |
|
 |
| 56 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,3 |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
1 x Cinch Video in
1 x S-Video in
1 x D-sub 15pin in
1 x RGBH/V YCrCb über RCA
1 x HDMI mit HDCP
1 x optical S/PDIF Audio-Ausgang von HDMI®
1 x RS232 9 pin
1 x USB
2 x 12V Trigger
1 x Input externer IR-Sensor
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
340W |
| Size WxHxD |
434 x 191 x 429 mm (17,1"x7,5"x16,9") 35,56 L/dm³
|
| Operating Noise |
- |
Key: 97 cm
Shift: 56 cm |
Key: 53 cm |
| Key: 53 cm |
| |
|
|
| Weight |
10,90 kg / 24,03 lbs. |
| Keystone |
Vert.: +/-18°
Hori.: +/-10°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-80 kHz
V-sync: 48-100 Hz
|
| Foot-Lamberts |
103 fL
/ max. 508 cm screen width |
| Candela m² |
353 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Freeze
Gamma correction
Overscan adjustable
DCDi® by Faroudja (FLI2310)
Case colour: Dark Metal Gray / Silver Bicolor
Digital Zoom
Skin Tone Control
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The SIM2 Grand Cinema C3X compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
96 |
Power cons.: |
|
92 |
| Picture Total Points: | 40 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
329 (From: 984) |
|
|
|
| In Test
|
-
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| T2 | 2-3:1 | 400-600 m |
+/-50% |
|
Powered |
| T1 | 1.5-2:1 | 300-400 m |
+/-50% |
|
Powered |
|
| Status |
2005 Discontinued (EOL) // Last update of the data: 2025-03-03
|
| Data |
 Product Sheet english
Product Sheet english HC
Press release english
User Manual english (5.78 MB)

|
SIM2 Website
