Brief Introduction
Beta 2.5 |

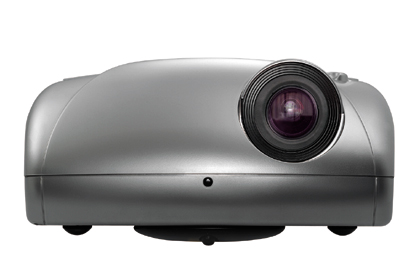

With the HT300 XTRA-H, manufacturer SIM2 offers a DLP projector with HDTV 1280 x 720 resolution and a contrast of 2800:1. The service life of the lamp is up to 6000 hours, which is equivalent to over 8.2 years at 2 hours per day. Including a lens shift and keystone correction function, which provides freedom during installation. A picture width of up to 287 cm is possible. However, the image should be smaller in room lighting. We recommend max. 191 cm. Even 1080P video signals are no problem for the projector. It was launched in 2004 and is no longer offered by the manufacturer SIM2.
|
| Display Type |
1 x 0,8" HD2+ DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
800 - 1000 ca. Angabe vom Hersteller |
Screen |
356 Lux (200 cm Screen width) |
| Contrast |
2800:1 full on/off |
2800:1 full on/off
|
| Black Level |
0,2857 min. Lumen |
0,127 min. Lumen |
| Lens shift |
Vert.: +/-45% manuell
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
120W Lamp
Article Nr.: Z930100290
|
|
| Light Life |
6000 h. |
| Operating Costs |
-
|
|
362 - 486 cm
|
 |
|
Lux: |
356 Lux |
|
Room light max.: |
71 Lux |
|
Candela pro m²: |
113 cd/m² |
|
Foot-Lamberts: |
33 fL |
|
 |
| 51 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,34 |
| Objective |
f=32-43 mm |
| Throw Ratio |
1,81-2,43:1 show |
| Audio |
- |
| Connections |
1 x composite video via RCA connectors
1 x S-VHS via mini Din-4 pin
1 x RGB via DB15 HD connector
1 x RGBH/V YCrCbH/V via RCA connectors
1 x RGBH/V YCrCbH/V via 5 BNC connectors
1 x DVI via DVI-D connector
1 x HDMI™-HDCP
1 x digital audio output from HDMI™
1 x RS232 on Dsub 9 pin connector
2 x jack 12V power outputs |
| Ceiling Mounting |
Yes, is possible. |
| Power |
180W |
| Size WxHxD |
350 x 185 x 318 mm (13,8"x7,3"x12,5") 20,59 L/dm³
|
| Operating Noise |
- |
|
| Weight |
5,50 kg / 12,13 lbs. |
| Keystone |
Vert.: +/-16°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-80 kHz
V-sync: 48-100 Hz
|
| Foot-Lamberts |
33 fL
/ max. 287 cm screen width |
| Candela m² |
113 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion manuell
Freeze
Gamma correction
Remote control with backlight
Overscan adjustable
Ansi-Lumen is not specified by the manufacturer
Available in the colors: Racing red, Black Shadow, Pearl grey, Silver grey, Silver blue.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The SIM2 HT300 XTRA-H compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
6 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
97 |
Power cons.: |
|
97 |
| Picture Total Points: | 35 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
636 (From: 984) |
|
|
|
| Please note |
Ansi-Lumen is not specified by the manufacturer
Available in the colors: Racing red, Black Shadow, Pearl grey, Silver grey, Silver blue.
|
|
|
| Status |
2004 Discontinued (EOL) // Last update of the data: 2023-10-26
|
