Boxlight CP 320t
Image Boxlight CP 320t
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Equipped with LCD technology, the Boxlight CP 320t offers 2000 ANSI lumens, a contrast of 400:1 and is designed as a versatile projector. According to Boxlight, the included lamp lasts up to 2000 hours.
Regarding projection size, the value of 2000 ANSI lumens allows for an image width of up to 389 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 259 cm.
The model is currently no longer actively offered on the market by the manufacturer.
Display Type       3 x 0,79" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 2000
Screen
 667 Lux (200 cm Screen width)
Contrast 400:1 full on/off 400:1 full on/off
Black Level 5,0000 min. Lumen 1,68 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, PAL-M, PAL-N, SECAM, NTSC, NTSC4.43, 1080i, 1035i, 720p, 575p, 575i, 480p, 480i
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 180W UHP Lamp
Article Nr.: CP320T-930
Order Lamp
60,11 - 129,26 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Perfect
266 - 320 cm
Lux: 667 Lux
Contrast: 400:1
Candela pro m²: 212 cd/m²
Foot-Lamberts: 62 fL

Screen width:cm
          Room:
•
Focus Powered
Zoom Powered 1,21
Objective F=1,9-2,1 f=21,3-25,7 mm
Throw Ratio 1,33-1,6:1 show
Audio 1W Mono
Connections 1- DVI-I
D-sub 15pin in
Mini Jack in und out
Cinch Video in
Cinch Stereo in und out
S-Video in
USB
Ceiling Mounting Yes, is possible.
Power 300W
Size WxHxD 332,7 x 88,9 x 254 mm (13,1"x3,5"x10") 7,42 L/dm³
Operating Noise 36dB
Key: 97 cm

Without offset

Key: 97 cm
Weight 4,31 kg / 9,5 lbs.
Keystone Vert.: +/-20°
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 50-100 Hz
Foot-Lamberts 62 fL / max. 389 cm screen width
Candela m² 212 cd/m²
Features Freeze
Gamma correction
Remote control with laser pointer
Screen Mirroring -
In Comparison
The Boxlight CP 320t compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
23 Weight:
79
Contrast:
1 dB:
33
Black level:
81 Power cons.:
97
Picture Total Points:35 Projector Total Points:70
Popularity Top 100
4 popularity points 5 popularity points 4 popularity points 1 popularity points 1 popularity points 3 popularity points
Points:
3
Ranking: 5929 (From: 7737)
Optional accessories

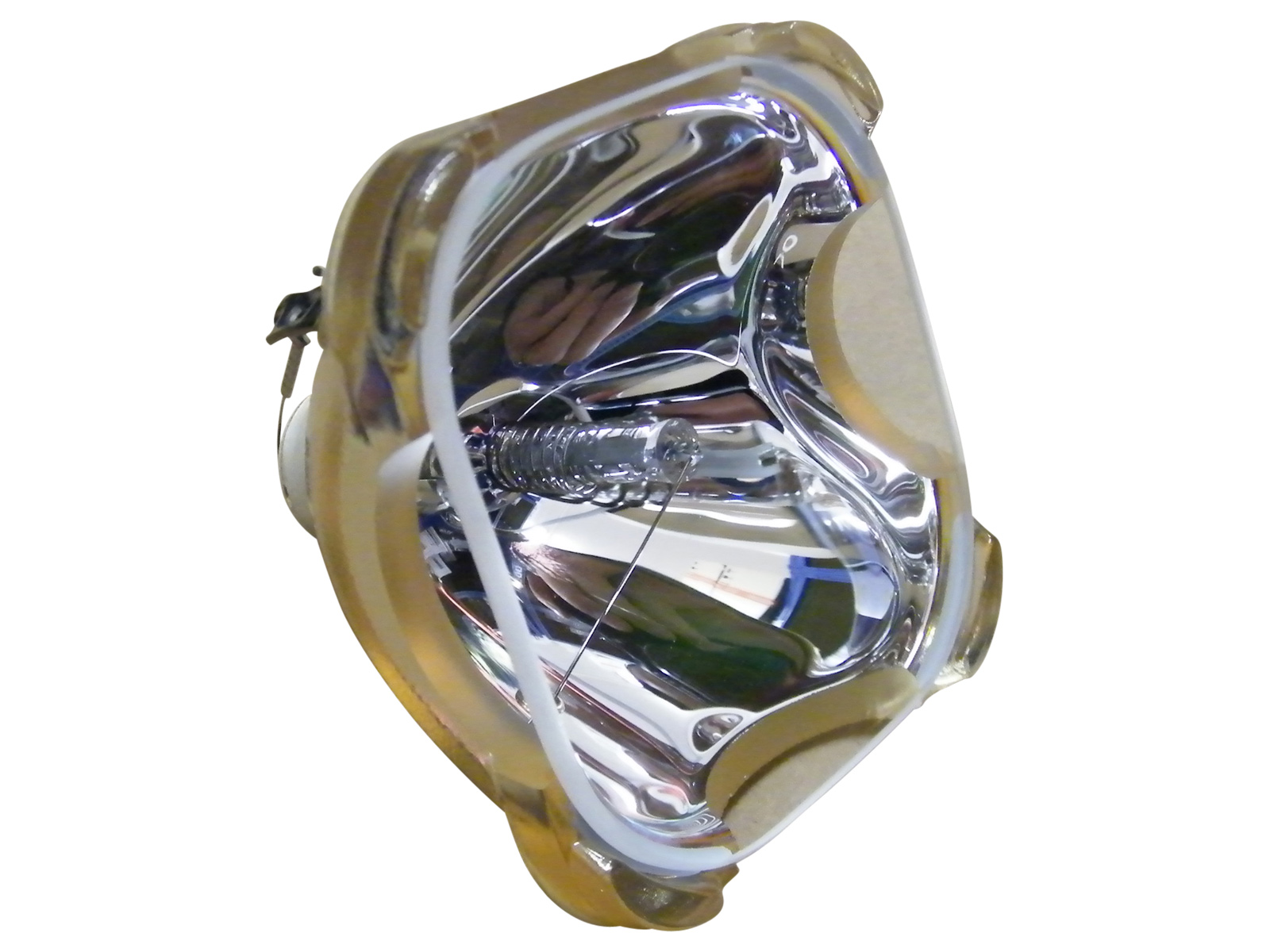

bulb only Philips NLMP67984,79 €
lamp ruby Ruby-LMP679129,26 €
lamp OriginalCP320T-930EOL €
Compatible lamp LMP-K67960,11 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status - Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Boxlight Website
Product Sheet english
Product Sheet english HC
User Manual english (1.2 MB)

Projektor Boxlight CP 320t
