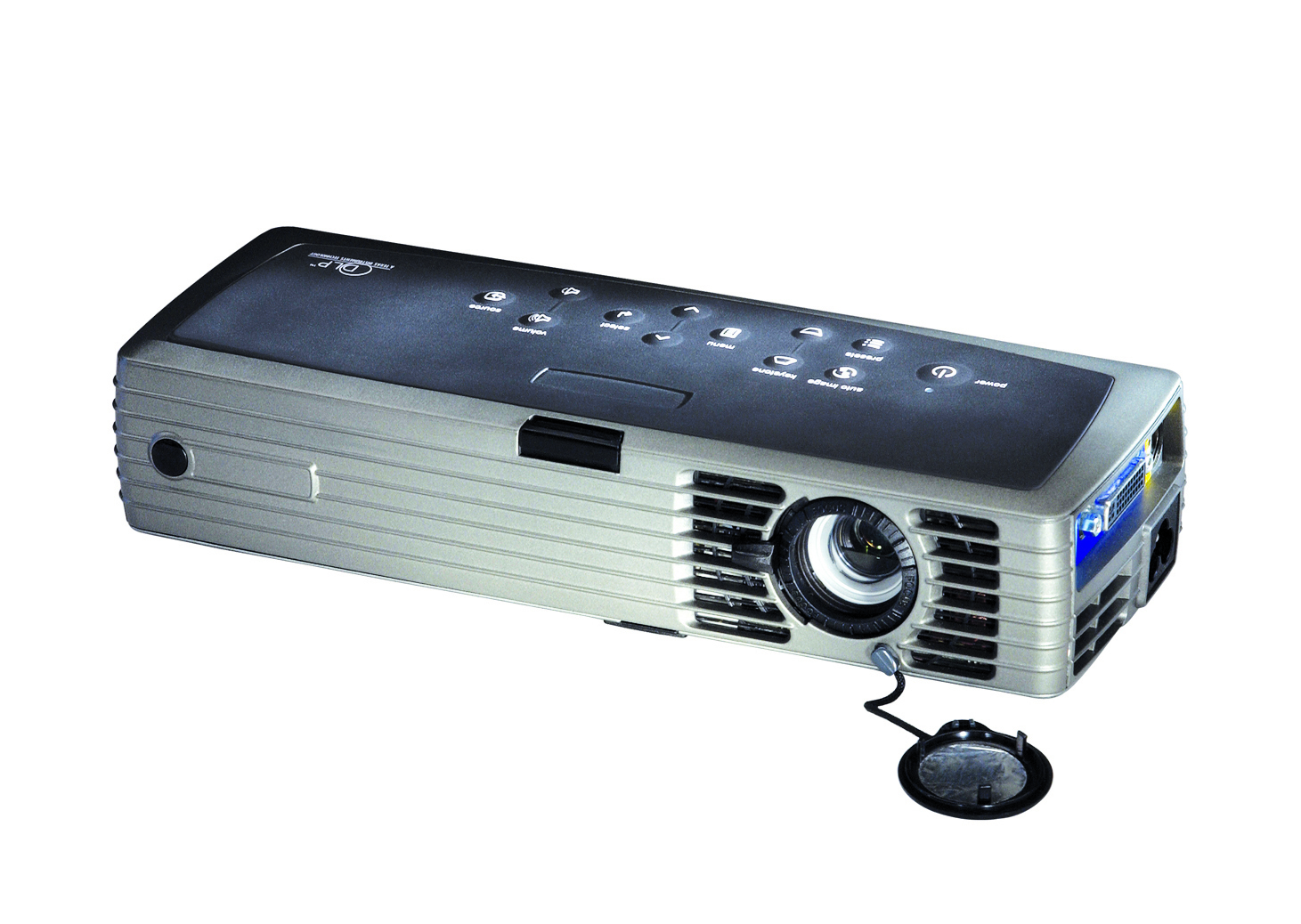

Boxlight XD 25m

Image Boxlight XD 25m
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The technical data of the Boxlight XD 25m includes 1100 ANSI lumens, a contrast of 2000:1 as well as a XGA 1024 x 768 display. According to Boxlight, the included lamp lasts up to 2000 hours.
Regarding projection size, the value of 1100 ANSI lumens allows for an image width of up to 289 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 193 cm.
This model dates back to 2003 and is no longer part of Boxlight's current product range.
Display Type 1 x 0,7" 12° DDR DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1100
Screen
367 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 0,5500 min. Lumen 0,184 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes NTSC, NTSC 4.43, PAL, PAL (BGDHI), PAL-M, PAL-N, SECAM
Application Micro-Portabel | Small mobile presentations.
Small screen width, rooms with very little ambient light below 50 lumens.

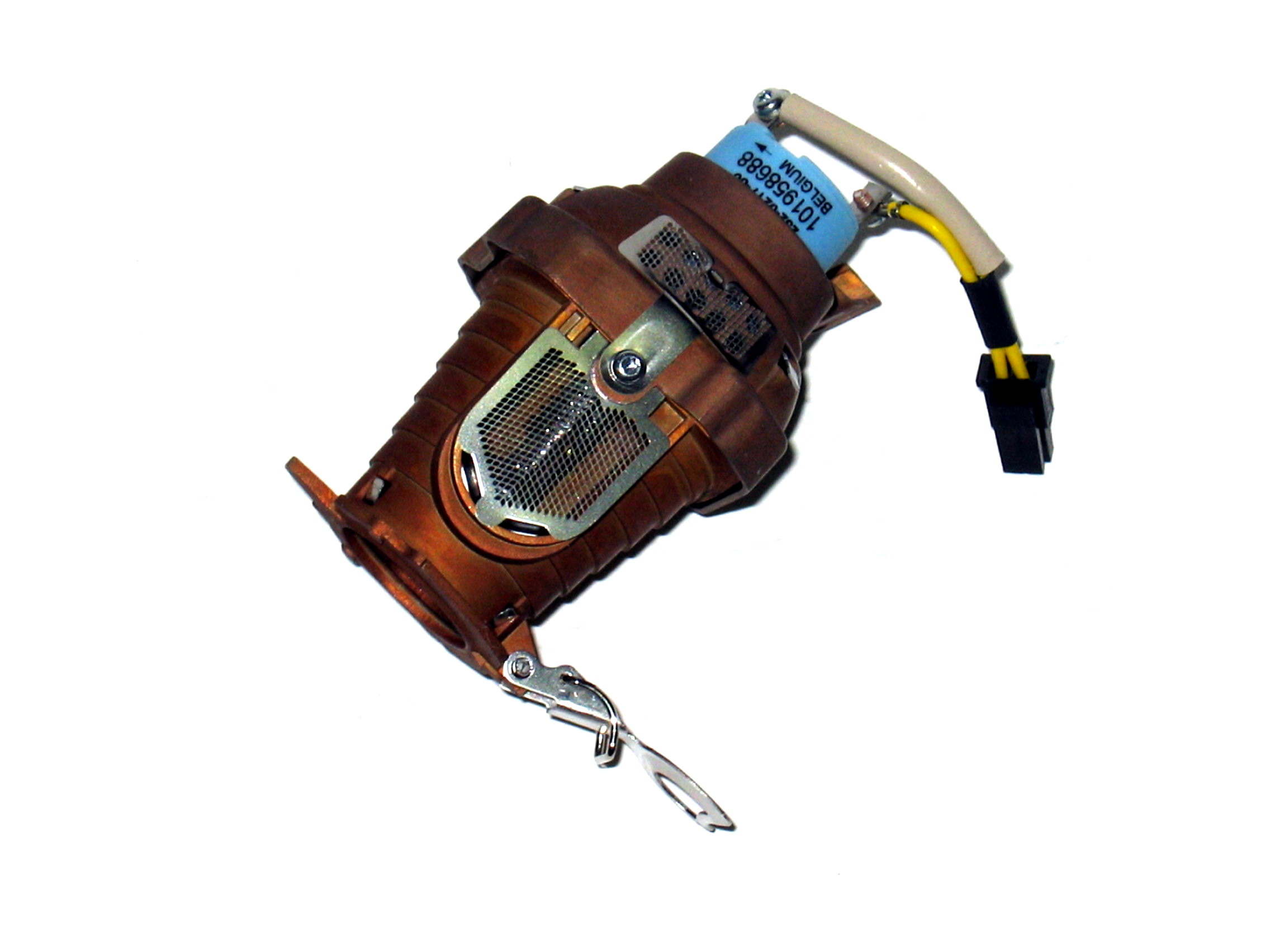

Light Source 120W UHP Lamp
Article Nr.: XD25M-930
Order Lamp
155,93 - 228,42 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Good (1.8)
360 - 420 cm
Lux: 367 Lux
Contrast: 2000:1
Candela pro m²: 116 cd/m²
Foot-Lamberts: 34 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,17
Objective -
Throw Ratio 1,8-2,1:1 show
Audio 1W Mono
Connections 1-M1-DA
mini-jack audio
S-video
Ceiling Mounting Yes, is possible.
Size WxHxD 247,7 x 52,1 x 94 mm (9,8"x2,1"x3,7") 1,21 L/dm³
Power 150W
Keystone
Key: 44 cm

Not
possible
+
+
SCREEN

Without Offset


Not
possible
Key: 44 cm

Operating Noise 37dB
Weight 0,90 kg / 1,98 lbs.
Keystone Vert.: +/-7°
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 43,5-130 Hz
Foot-Lamberts 34 fL / max. 289 cm screen width
Candela m² 116 cd/m²
Features Freeze
Remote Control with Laser Pointer
Adjustable Overscan
Screen Mirroring -
In Comparison
The Boxlight XD 25m compared to others not current "Micro-Portabel" projectors.
Ansi-Lumen:
27 Weight:
43
Contrast:
26 dB:
25
Black level:
26 Power cons.:
56
Picture Total Points:26 Projector Total Points:41
Popularity Top 100
1 popularity points in May 2 popularity points in June 5 popularity points in July 6 popularity points in August 10 popularity points in September 7 popularity points in October
Points:
7
Ranking: 342 (From: 394)
Live-Trend (Last 3 days)   LiveLIVE
Points: 9 +2% Trend
Optional accessories
Philips bulb only NLMP742211,38 €
lamp ruby Ruby-LMP742155,93 €
lamp OriginalXD25M-930228,42 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2003 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Boxlight Website
Product Sheet
Product Sheet english HC
Press release
User Manual english (3.03 MB)
