Boxlight CP 720e

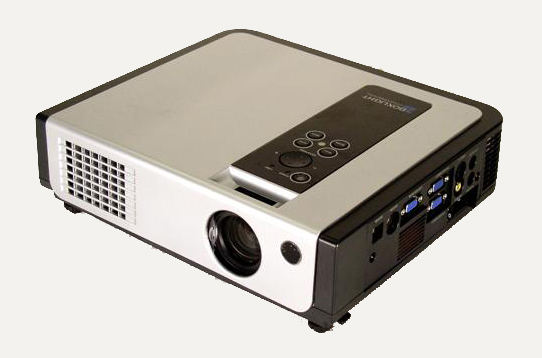

Image Boxlight CP 720e
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The Boxlight CP 720e is a LED-LCD projector offering 2200 ANSI lumens, a contrast of 500:1 and a resolution of XGA 1024 x 768. The manufacturer lists the lamp life at 2000 hours.
A look at the light output reveals: The 2200 ANSI lumens are sufficient to illuminate an image width of up to 408 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 272 cm.
The projector was released in 2006 and is officially no longer distributed by Boxlight. Important maintenance note: It is no longer possible to procure replacement lamps for this model.
Display Type       3 x 0,7" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 2200
Screen
 733 Lux (200 cm Screen width)
Contrast 500:1 full on/off 500:1 full on/off
Black Level 4,4000 min. Lumen 1,475 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA+ 1400 x 1050 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 180W Lamp
Article Nr.: CP720E-930
Order Lamp
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Perfect
372 - 444 cm
Lux: 733 Lux
Contrast: 500:1
Candela pro m²: 233 cd/m²
Foot-Lamberts: 68 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,2
Objective F=1,75-2,1 f=26,7-32 mm
Throw Ratio 1,86-2,22:1 show
Audio 1 x 2W
Connections 2 x D-sub 15pin in 1 x out
S-Video in
Cinch Video in
Mini Jack in
USB
RS232C
Ceiling Mounting Yes, is possible.
Power 250W
Size WxHxD 309,9 x 96,5 x 269,2 mm (12,2"x3,8"x10,6") 7,98 L/dm³
Operating Noise 33 / 30 dB in Eco Mode
Key: 215 cm

Without offset

Key: 215 cm
Weight 2,72 kg / 6 lbs.
Keystone Vert.: +/-30°
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 43-100 Hz
Foot-Lamberts 68 fL / max. 408 cm screen width
Candela m² 233 cd/m²
Features Eco Mode
Remote control with laser pointer und mouse control
Screen Mirroring -
In Comparison
The Boxlight CP 720e compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
26 Weight:
87
Contrast:
1 dB:
41
Black level:
84 Power cons.:
98
Picture Total Points:37 Projector Total Points:75
Popularity Top 100
9 popularity points 8 popularity points 0 popularity points 2 popularity points 4 popularity points 5 popularity points
Points:
5
Ranking: 3388 (From: 7736)
Optional accessories
NLMP4931166,33 €
2 pin connector lampe ruby Ruby-LMP4931127,08 €
lamp (2 pin connector) OriginalCP720E-930EOL €
lamp (3 pin connector) OriginalLMP19299EOL €
Compatible lamp LMP-K1562474,21 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2006 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Boxlight Website
Product Sheet english "E"
Product Sheet english HC
User Manual english (4.08 MB)
