Dukane ImagePro 8077

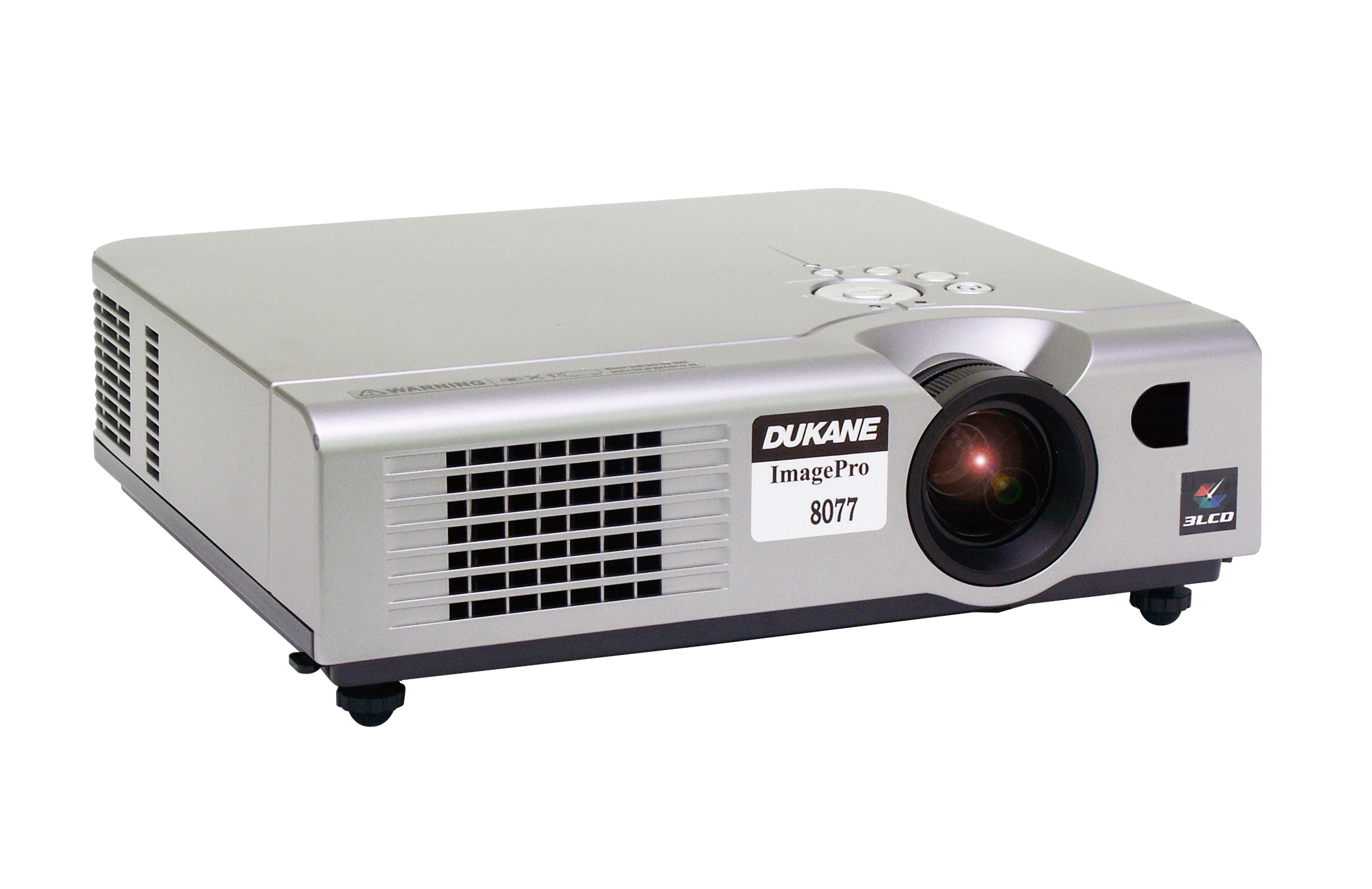

Image Dukane ImagePro 8077
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Based on LCD technology, the Dukane ImagePro 8077 device delivers 2000 ANSI lumens, a resolution of SVGA 800 x 600 and a contrast of 400:1 as a projector. In operating mode, the installed projector lamp offers a lifespan of 2000 hours.
A look at the light output reveals: The 2000 ANSI lumens are sufficient to illuminate an image width of up to 389 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 259 cm.
Since entering the market in 2006, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type 3 x 0,7" LCD TFT Panel mit MLA
SVGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2000 / 1600 im Eco Mode
Screen
667 Lux (200 cm Screen width)
Contrast 400:1 full on/off 400:1 full on/off
Black Level 5,0000 min. Lumen 1,68 min. Lumen
Offset -
Resolution SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 180W Lamp
Article Nr.: 456-8077
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Perfect
358 - 428 cm
Lux: 667 Lux
Contrast: 400:1
Candela pro m²: 212 cd/m²
Foot-Lamberts: 62 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,17
Objective F=1,8-2,1
Throw Ratio 1,79-2,14:1 show
Audio 1 x 1W Mono

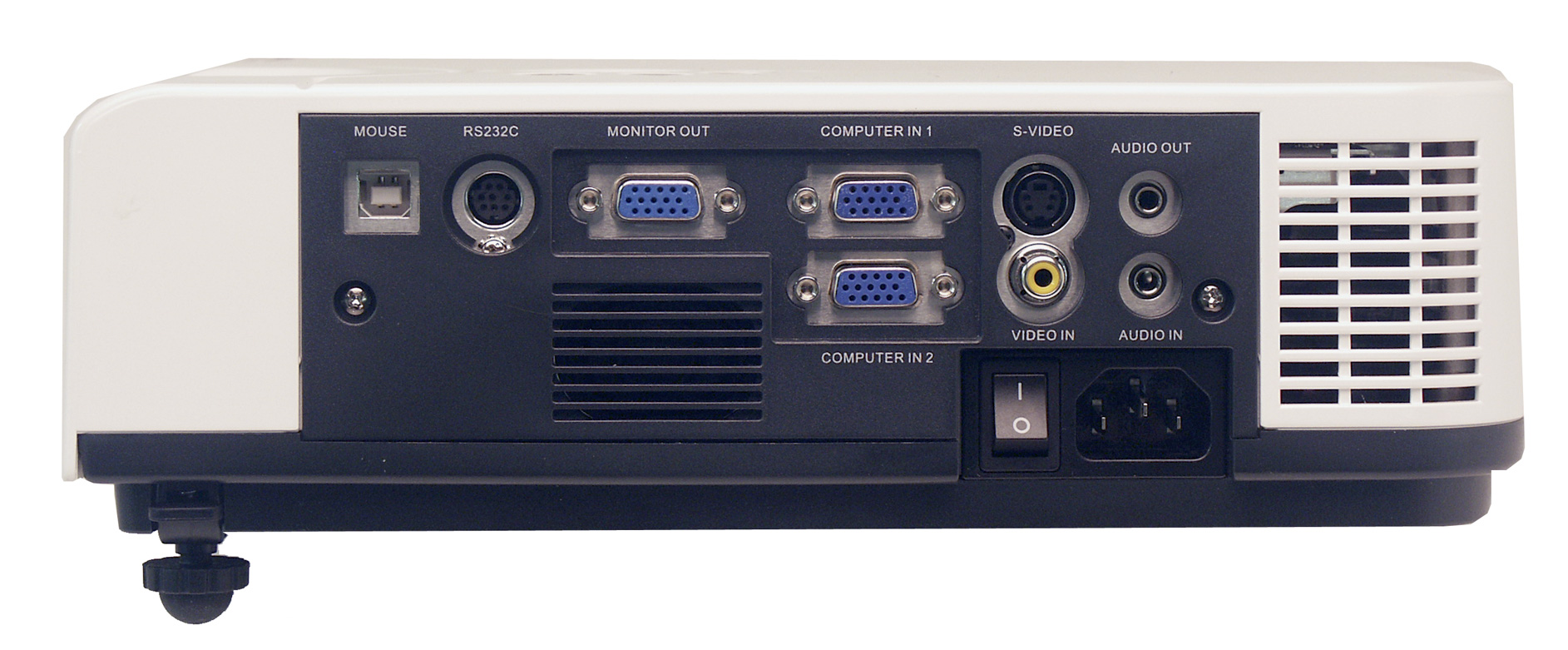

Connections 2 x D-sub 15pin in 1 x out
S-Video in
Cinch Video in
USB in
RS232C
Mini Jack in und out
Ceiling Mounting Yes, is possible.
Size WxHxD 304,8 x 101,6 x 266,7 mm (12"x4"x10,5") 8,17 L/dm³
Power 250 / 232W in Eco Mode
Keystone
Key: 207 cm

Not
possible
+
+
SCREEN

Without Offset


Not
possible
Key: 207 cm

Operating Noise 37 / 33 dB in Eco Mode
Weight 2,72 kg / 6 lbs.
Keystone Vert.: +/-30°  automatisch
Illumination -
Frequenz H-sync: 15-69 kHz
V-sync: 43-85 Hz
Foot-Lamberts 62 fL / max. 389 cm screen width
Candela m² 212 cd/m²
Features Freeze
Eco Mode
Automatic and Manual Vertical Keystone Correction
Kensington Slot
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Dukane ImagePro 8077 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
28 Weight:
81
Contrast:
18 dB:
31
Black level:
14 Power cons.:
73
Picture Total Points:20 Projector Total Points:62
Popularity Top 100
1 popularity points in May 1 popularity points in June 3 popularity points in July 3 popularity points in August 11 popularity points in September 1 popularity points in October
Points:
1
Ranking: 7500 (From: 7741)
Live-Trend (Last 3 days)   LiveLIVE
Points: 1 ±0% Trend
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2006 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Dukane Website
Product Sheet english
Product Sheet english HC

Projektor Dukane ImagePro 8077 Projektor Dukane ImagePro 8077 Projektor Dukane ImagePro 8077
