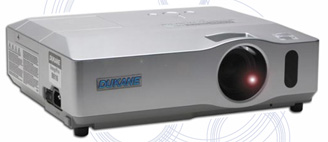

Dukane ImagePro 8916/H


DUKANE Image Pro 8916H
Image Dukane ImagePro 8916/H
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The Dukane ImagePro 8916 is a LCD projector offering 3500 ANSI lumens, a contrast of 500:1 and a resolution of XGA 1024 x 768. In operating mode, the installed projector lamp offers a lifespan of 2000 hours.
Looking at practical performance, up to 515 cm can be illuminated with 3500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 343 cm.
This model dates back to 2008 and is no longer part of Dukane's current product range.
Display Type 3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
3500 / 2900 im Eco Mode
Screen
1167 Lux (200 cm Screen width)
Contrast 500:1 full on/off 500:1 full on/off
Black Level 7,0000 min. Lumen 2,348 min. Lumen
Offset 40% cm under screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source 230W UHB Lamp
Article Nr.: 456-8755H
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
292 - 350 cm
Lux: 1167 Lux
Contrast: 500:1
Candela pro m²: 370 cd/m²
Foot-Lamberts: 108 fL
60 cm

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,2
Objective F=1,6-1,8 f=18,9-22,6 mm
Throw Ratio 1,46-1,75:1 show
Audio 1 x 7W
Connections 2 x D-sub 15pin 1 x out
YUV in
S-Video
Cinch Video in
Chich Stereo in
Mini jack in
RS232C Din 9 pin
Ceiling Mounting Yes, is possible.
Size WxHxD 340 x 100 x 270 mm (13,4"x3,9"x10,6") 9,18 L/dm³
Power 320W / 5W standby
Keystone
Key: 229 cm

Not
possible
+
+
SCREEN

Not
possible
Key: 109 cm

Operating Noise 39 / 34 dB in Eco Mode
Weight 3,49 kg / 7,69 lbs.
Keystone Vert.: +/-30°  automatisch
Illumination -
Frequenz H-sync: 15-106 kHz
V-sync: 50-120 Hz
Foot-Lamberts 108 fL / max. 515 cm screen width
Candela m² 370 cd/m²
Features Freeze
Blackboard Mode
Custom Logo Display
Eco Mode
Automatic and Manual Vertical Keystone Correction
Kensington Slot
Gamma Correction
Password Protection
Remote Control with Mouse Control
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Dukane ImagePro 8916/H compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
50 Weight:
69
Contrast:
20 dB:
26
Black level:
11 Power cons.:
65
Picture Total Points:27 Projector Total Points:53
Popularity Top 100
0 popularity points in May 1 popularity points in June 3 popularity points in July 3 popularity points in August 7 popularity points in September 5 popularity points in October
Points:
5
Ranking: 5811 (From: 7741)
Live-Trend (Last 3 days)   LiveLIVE
Points: 9 +4% Trend
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2008 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Dukane Website
Product Sheet english HC
Product Sheet USA
