Dukane Image Pro 8113

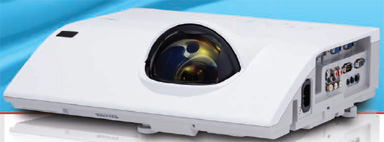

Image Dukane Image Pro 8113
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The technical data of the Dukane Image Pro 8113 includes 3200 ANSI lumens, a contrast of 3000:1 as well as a XGA 1024 x 768 display. The manufacturer specifies a runtime of 3000 hours for this projector's lamp.
With its built-in wide-angle optics, the device belongs to the category of short-throw projectors. An image width of 2 meters is realized from a short distance of 80 cm.
Looking at practical performance, up to 493 cm can be illuminated with 3200 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 329 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
Since entering the market in 2014, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type 3 x LCD TFT Panel
XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
3200
Screen
1067 Lux (200 cm Screen width)
Contrast 3000:1 full on/off 3000:1 full on/off
Black Level 1,0667 min. Lumen 0,356 min. Lumen
Offset 60% 15 cm over screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray
Application Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source 215W UHP Lamp
Article Nr.: 456-8104WB
Light Life 3000 h. 5000 h. in Eco Mode
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
80 cm (no Zoom)
Lux: 1067 Lux
Contrast: 3000:1
Candela pro m²: 339 cd/m²
Foot-Lamberts: 99 fL
90 cm


Screen width:cm
          Room:
•
Focus Manual
Zoom No Zoom
Objective -
Throw Ratio 0,4:1
Audio 1 x 10W
Connections HDMI in
2 x D-sub 15pin in und 1 x out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting Yes, is possible.
Size WxHxD 345 x 85 x 303 mm (13,6"x3,3"x11,9") 8,89 L/dm³
Power 320W
Keystone
Key: 97 cm

Not
possible
+
+
SCREEN

Not
possible
Key: -83 cm

Operating Noise 35 / 28 dB in Eco Mode
Weight 3,70 kg / 8,16 lbs.
Keystone Vert.: +/-5°
Illumination -
Frequenz -
Foot-Lamberts 99 fL / max. 493 cm screen width
Candela m² 339 cd/m²
Features Blackboard Mode
Custom Logo Display
Eco Mode
Kensington Slot
Digital Image Shift
Password Protection
Lan Netzwerk kompatibel.
Short Throw Projector
Crestron® Software compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Dukane Image Pro 8113 compared to others not current "Short Distance" projectors.
Ansi-Lumen:
40 Weight:
94
Contrast:
29 dB:
30
Black level:
18 Power cons.:
90
Picture Total Points:29 Projector Total Points:71
Popularity Top 100
1 popularity points in May 3 popularity points in June 6 popularity points in July 7 popularity points in August 6 popularity points in September 7 popularity points in October
Points:
7
Ranking: 906 (From: 989)
Live-Trend (Last 3 days)   LiveLIVE
Points: 12 +5% Trend
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2014 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Dukane Website
Product Sheet english
Product Sheet english HC
