JVC DLA-VS4700

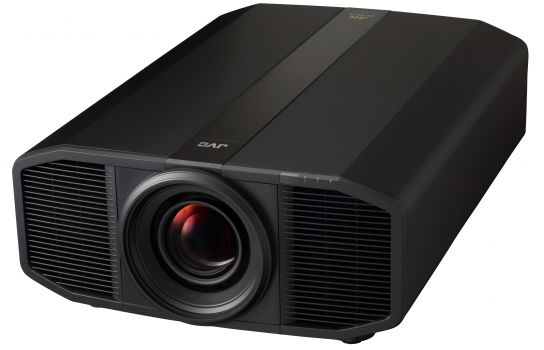

Image JVC DLA-VS4700
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview A projector from JVC is the DLA-VS4700, whose 3D-DILA model delivers 3000 ANSI lumens, a resolution of UHD (4K+2K) 4096 x 2160 and a contrast of 12000:1. Using this laser phosphor technology, the light source runtime is rated at 20000 hours, which translates to 13.7 years with 4 hours of daily use.
An integrated lens shift provides significant leeway for placement. The lens can be adjusted to precisely align the image even with off-center installations. To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projector Calculator.
Regarding projection size, the value of 3000 ANSI lumens allows for an image width of up to 675 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 450 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket.
This model dates back to 2018 and is no longer part of JVC's current product range.
Display Type 3 x 0,69" D-ILA Chip
UHD 19/10 Direct-Drive Image Light Amplification (D-ILA)
Ansi-Lumen
Projector
3000 / 2400 im Eco Mode
Screen
1422 Lux (200 cm Screen width)
Contrast 12000:1 full on/off 12000:1 full on/off
Black Level 0,2500 min. Lumen 0,119 min. Lumen
Lens shift Vert.: +/-50% Hori.: +/-18%
 Lens shift
50%  53cm
50%  53cm
18%  36cm
18%  36cm
+ Projector
Resolution UHD (4K+2K) 4096 x 2160
8.847.360 Pixel / (8K) 8192 X 4320 mit E-Shift
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready)
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source Laser
Light Life 20000 h.
Operating Costs 0,00 € Laser
Calculated brightness quality
The screen width may also be larger. Perfect
Lux: 1422 Lux
Contrast: 12000:1
Candela pro m²: 452 cd/m²
Foot-Lamberts: 132 fL
53 cm

Screen width:cm
          Room:
•
Focus Powered
Zoom Powered
Objective
Throw Ratio optional
Audio Nein
Connections 4 x Display Port 1.2a
RS232C Din 9 pin in
RJ45 in
USB
Sync out
Ceiling Mounting Yes, is possible.
Size WxHxD 500 x 215 x 720 mm (19,7"x8,5"x28,3") 77,4 L/dm³
Power 750W
Lens shift

Shift: 53 cm


Shift: 36 cm
+
+
SCREEN


Shift: 36 cm

Shift: 53 cm

Operating Noise 40dB
Weight 35,00 kg / 77,16 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 132 fL / max. 675 cm screen width
Candela m² 452 cd/m²
Features Real Full HD 3D
4K UHD (Ultra High Definition)
Eco Mode
Lan Netzwerk kompatibel.
PK-MLS01-Motorized lens mount option, ±100 V, ±34 H offset
Screen Mirroring -
In Comparison
The JVC DLA-VS4700 compared to others not current "Stationary" projectors.
Ansi-Lumen:
30 Weight:
84
Contrast:
47 dB:
93
Black level:
38 Power cons.:
89
Picture Total Points:38 Projector Total Points:89
Popularity Top 100
1 popularity points in May 8 popularity points in June 3 popularity points in July 4 popularity points in August 13 popularity points in September 25 popularity points in October
Points:
25
Ranking: 894 (From: 2537)
Live-Trend (Last 3 days)   LiveLIVE
Points: 13 -12% Trend
Optional accessories
ceiling bracketHeavyDuty470,94 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
GLMZ-4014SZ 1.27-2.54:1 254-508 m +/-100% +/-40% Powered
GLMZ-4009SZ 0.94-1.3:1 188-260 m +/-50% +/-18% Powered
VSL2010 0.99:1 198 m +/-50% +/-10% No Zoom
VSL2012 1.18:1 236 m +/-50% +/-10% No Zoom
Status 2018 Discontinued (EOL) // Last update of the data: 2026-06-09
