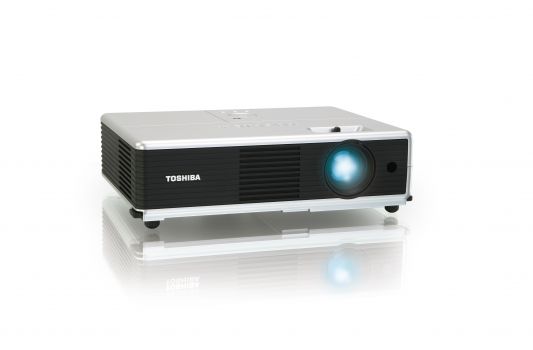

TOSHIBA TLP-X150U

Customer review

✎ Help other users and be the first to share your review.

✎ Help other and be the first to share your review.

Offer Ads

Discover other popular projectors on Amazon!

Model Overview

The basic data of the Toshiba TLP X150 includes 2600 ANSI lumens, a resolution of XGA 1024 x 768 as well as a contrast of 600:1. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
Regarding projection size, the value of 2600 ANSI lumens allows for an image width of up to 444 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 296 cm.
Regarding signal processing, the model is compatible with incoming 1080P content. As an additional feature, an integrated media player enables the direct playback of files without an external source device.
This model dates back to 2008 and is no longer part of Toshiba's current product range. Important maintenance note: It is no longer possible to procure replacement lamps for this model.

Display Type

3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display

Ansi-Lumen

Projector

2600

Screen

867 Lux (200 cm Screen width)

Contrast

600:1 full on/off

Black Level

4,3333 min. Lumen

1,452 min. Lumen

Offset

Resolution

XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Media player formats: JPEG

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.

Light Source

180W Lamp
Article Nr.: TLPLW21

Order Lamp

Light Life

2000 h. 3000 h. in Eco Mode

Operating Costs

Calculated brightness quality Perfect

300 - 360 cm


	Lux:	867 Lux
	Contrast:	600:1
	Candela pro m²:	278 cd/m²
	Foot-Lamberts:	81 fL

•

Focus

Manual

Zoom

Manual 1,2

Objective

F=1,7-1,87 f=19,2-23,1 mm

Throw Ratio

1,5-1,8:1 show

Audio

1W Mono

Connections

2 x D-sub 15 pin in
S-Video in
Cinch Video in
RS232C Din 9pin in
USB in

Ceiling Mounting

Yes, is possible.

Power

Size WxHxD

268 x 70 x 189 mm (10,6"x2,8"x7,4") 3,55 L/dm³

Operating Noise

Key: 300 cm
	Without offset
	Key: 300 cm

Weight

1,80 kg / 3,97 lbs.

Keystone

Vert.: +/-45° automatisch

Illumination

Frequenz

H-sync: 15-106 kHz
V-sync: 50-85 Hz

Foot-Lamberts

81 fL / max. 444 cm screen width

Candela m²

278 cd/m²

Features

Full HD 1080P compatible

Integrated Mediaplayer

Freeze

Blackboard Modus

User logo

Eco Mode

Automatic and manual vertical keystone correction

Password protection

Remote control with laser pointer und mouse control

Screen Mirroring

In Comparison

The Toshiba TLP X150 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

6394 (From: 7737)

Optional accessories
	lamp Original	TLPLW21	EOL €
	Universal Remote	Fernb-uni-V3	22,31 €
	Ceiling Mount 100-120	Halterung100	47,86 €
	Airfilter universal	uni3mm	18,15 €

Status

2008 Discontinued (EOL) // Last update of the data: 2026-06-09

Data

Toshiba Website

Product Sheet english

Product Sheet english HC

Product Sheet japanisch

User Manual english (10.1 MB)
