Model Overview

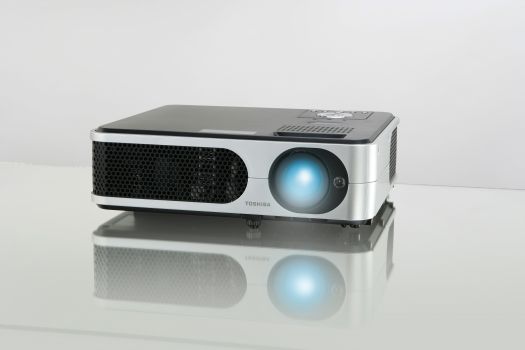

The Toshiba TLP X3000A is a LCD projector offering 3000 ANSI lumens, a contrast of 600:1 and a resolution of XGA 1024 x 768. The manufacturer lists the lamp life at 2000 hours. Looking at practical performance, up to 477 cm can be illuminated with 3000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 318 cm. The projector was released in 2009 and is officially no longer distributed by Toshiba.
Display Type
3 x 0,63" LCD TFT Panel XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
3000
Screen
1000 Lux (200 cm Screen width )
Contrast
600:1 full on/off
600:1 full on/off
Black Level
5,0000 min. Lumen
1,675 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Video Modes
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source
220W / 160W im Eco Mode Lamp Article Nr.: TLPLW11
Light Life
2000 h. 3000 h. in Eco Mode
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
290 - 348 cm
Lux:
1000 Lux
Contrast:
600:1
Candela pro m²:
319 cd/m²
Foot-Lamberts:
93 fL
•
Focus
Manual
Zoom
Manual 1,2
Objective
F=1,6-1,89 f=18,6-22,3 mm
Throw Ratio
1,45-1,74:1 show
Audio
1W Mono
Connections
D-sub 15pin in und out
S-Video in
Cinch Video in
Cinch Stereo in
RS232C Din 8pin
Ceiling Mounting
Yes, is possible.
Size WxHxD
288 x 92 x 247 mm (11,3"x3,6"x9,7") 6,54 L/dm³
Power
320W
Keystone
Key: 167 cm
+
+
SCREEN
Without Offset
Key: 167 cm
Operating Noise
34 / 29 dB in Eco Mode
Weight
2,80 kg / 6,17 lbs.
Keystone
Vert.: +/-30° automatisch
-
Frequenz
H-sync: 16-106 kHz V-sync: 50-85 Hz
Foot-Lamberts
93 fL
/ max. 477 cm screen width
Candela m²
319 cd/m²
Features
Freeze
Blackboard Mode
Custom Logo Display
Eco Mode
Automatic and Manual Vertical Keystone Correction
Kensington Slot
Digital Image Shift
Password Protection
Remote Control with Laser Pointer and Mouse Control
.
-
In Comparison
The Toshiba TLP X3000A compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
43
Weight:
80
Contrast:
22
dB:
38
Black level:
14
Power cons.:
65
Picture Total Points: 26
Projector Total Points: 61
Popularity Top 100
Points:
Ranking:
5450 (From: 7741)
Live-Trend (Last 3 days)
LIVE
Points:
7
+2%
Status
2009 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Product Sheet english Product Sheet english HC User Manual english (5.77 MB)
