3M X90


3M LUMINA X90
Image 3M X90
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Designed for the Stationary sector, the X90 model from 3M features 4000 ANSI lumens, a native XGA 1024 x 768 resolution and a contrast ratio of 1000:1. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary.
For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Projection Calculator.
Looking at practical performance, up to 551 cm can be illuminated with 4000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 367 cm.
This model dates back to 2007 and is no longer part of 3M's current product range.
Display Type       3 x 0,79" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
4000 / 3200 im Eco Mode
Screen
1333 Lux (200 cm Screen width)
Contrast 1000:1 full on/off im Theatre Mode 1000:1 full on/off im Theatre Mode
Black Level 4,0000 min. Lumen 1,337 min. Lumen
Lens shift Vert.: +41% -0% manuell
 Lens shift
41%  62cm
0%  0cm
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source 285W UHB Lamp
Article Nr.: 78-6969-9893-5
Order Lamp
74,74 - 128,15 €
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality
The screen width may also be larger. Perfect
300 - 360 cm
Lux: 1333 Lux
Contrast: 1000:1
Candela pro m²: 425 cd/m²
Foot-Lamberts: 124 fL
62 cm

Screen width:cm
          Room:
Focus Manual
Zoom Manual 1,2
Objective F=1,7-2,1 f=24,3-29,2 mm
Throw Ratio 1,5-1,8:1 show
Audio 4 x 4W
Connections 1 x DVI M1DA
2 x D-sub 15 in 1 x out
YUV in
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack in und out
Ceiling Mounting Yes, is possible.
Power 460W
Size WxHxD 420 x 139 x 319 mm (16,5"x5,5"x12,6") 18,62 L/dm³
Operating Noise 39 / 33 dB in Eco Mode
Key: 252 cm
Shift: 62 cm
Key: 109 cm
Key: 109 cm
Key: 252 cm

Weight 7,10 kg / 15,65 lbs.
Keystone Vert.: +/-40°
Hori.: +/-20°
Illumination -
Frequenz H-sync: 31,5-106 kHz
V-sync: 56-120 Hz
Foot-Lamberts 124 fL / max. 551 cm screen width
Candela m² 425 cd/m²
Features Direkt Power Off
Lens shift Funktion manuell
Freeze
Blank (Black screen button)
Blackboard Modus
User logo
Eco Mode
Kensington Slot
Gamma correction
Dynamic iris
Password protection
Remote control with laser pointer
Wi-Fi network compatible.
Lan network compatible.
De-interlacer with 3:2 pull down..
Screen Mirroring -
In Comparison
The 3M X90 compared to others not current "Stationary" projectors.
Ansi-Lumen:
39 Weight:
100
Contrast:
1 dB:
94
Black level:
88 Power cons.:
95
Picture Total Points:43 Projector Total Points:96
Popularity Top 100
7 popularity points 9 popularity points 1 popularity points 9 popularity points 4 popularity points 5 popularity points
Points:
5
Ranking: 839 (From: 2536)
Optional accessories

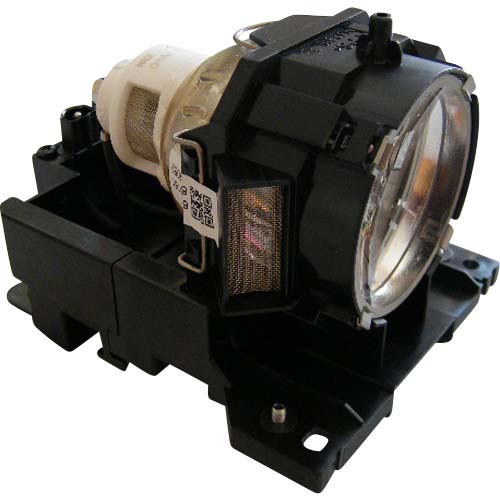

bulb only NLMP16633115,39 €
lamp ruby Ruby-LMP16633128,15 €
lamp incl. air filter Original78-6969-9893-5EOL €
Compatible lamp LMP-K1663374,74 €
Universal Remote Fernb-uni-V322,31 €
air filter OriginalMU0364222,91 €
Ceiling Mount 100-120 Halterung10047,86 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
UL-604 3.9-7.4:1 780-1480 m 41% +/-10% Manual
LL-603 2-3.9:1 400-780 m 41% +/-10% Manual
SL-602 1.2-2:1 240-400 m 41% +/-10% Manual
FL-601 0.8:1 160 m 0.0% Fix No Zoom
Status 2007 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
3M Website
Product Sheet english
Product Sheet english HC
Product Sheet RS232C
User Manual english (3.43 MB)
