Customer review
Model Overview

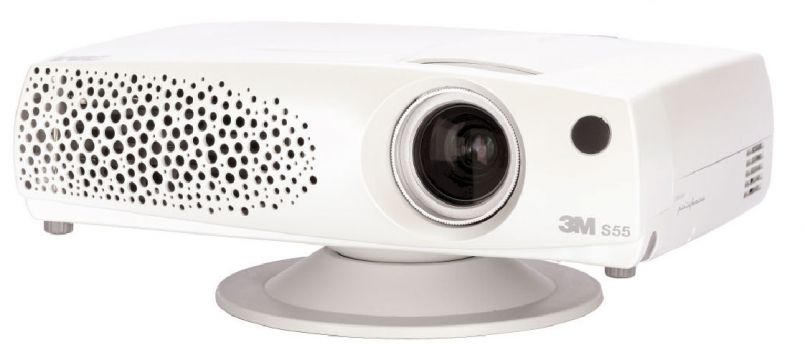

Behind the name Nobile S55 is a LED-LCD projector by 3M, whose main features include 2000 ANSI lumens, a contrast of 400:1 and a SVGA 800 x 600 resolution. The manufacturer rates the durability of the included lamp at 2000 hours. Regarding projection size, the value of 2000 ANSI lumens allows for an image width of up to 389 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 259 cm. The projector was released in 2004 and is officially no longer distributed by 3M.
Display Type
3 x 0,7" LCD TFT Panel SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
2000 / 1600 im Eco Mode
Screen
667 Lux (200 cm Screen width )
Contrast
400:1 full on/off
400:1 full on/off
Black Level
5,0000 min. Lumen
1,68 min. Lumen
Offset
40% cm under screen top edge →
Resolution
SVGA 800 x 600
480.000 Pixel
UXGA 1600 x 1200 compressed
Video Modes
PAL, PAL-M, PAL-N, PAL-60, SECAM, NTSC, EDTV HDTV 720p, 1080i, 1080i,
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Light Source
165W UHB Lamp Article Nr.: 78-6969-9790-3
Light Life
2000 h. 4000 h. in Eco Mode
Operating Costs
-
Calculated brightness quality Perfect
304 - 362 cm
Lux:
667 Lux
Contrast:
400:1
Candela pro m²:
212 cd/m²
Foot-Lamberts:
62 fL
•
Focus
Manual
Zoom
Manual 1,2
Objective
F=1,7-1,9 f=21,7-26,1 mm
Throw Ratio
1,52-1,81:1 show
Audio
1 x 1W
Connections
2 x D-sub 15pin in 1 x out
Cinch Video in
YUV in
S-Video in
Mini Jack in und out
USB
RS232C Din 9pin
Ceiling Mounting
Yes, is possible.
Size WxHxD
308 x 86 x 252 mm (12,1"x3,4"x9,9") 6,67 L/dm³
Power
240W
Keystone
Operating Noise
41 / 35 dB in Eco Mode
Weight
2,65 kg / 5,84 lbs.
Keystone
Vert.: +/-10°
-
Frequenz
H-sync: 31-91 kHz V-sync: 56-120 Hz
Foot-Lamberts
62 fL
/ max. 389 cm screen width
Candela m²
212 cd/m²
Features
Freeze
Blank (Black Screen Button)
Custom Logo Display
Eco Mode
Kensington Slot
Gamma Correction
Remote Control with Mouse Control
Adjustable Overscan
Prospekt englich und deutsch haben unterschiedliche Angaben.
Unsere Angaben wurden mit dem Hersteller abgesprochen.
-
In Comparison
The 3M Nobile S55 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
28
Weight:
82
Contrast:
18
dB:
21
Black level:
14
Power cons.:
74
Picture Total Points: 20
Projector Total Points: 59
Popularity Top 100
Points:
Ranking:
5224 (From: 7741)
Live-Trend (Last 3 days)
LIVE
Points:
4
-1%
Please note
Brochure in English and German have different information.
Our information has been agreed with the manufacturer.
Status
2004 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Product Sheet english Product Sheet english HC User Manual english (5.58 MB) Operation Guide (0.4 MB)
