3M MP 7640

Image 3M MP 7640
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The projector MP 7640 by 3M operates as a LED-LCD device with 800 ANSI lumens, a SVGA 800 x 600 resolution and a contrast of 120:1. According to 3M, the included lamp lasts up to 2000 hours.
A look at the light output reveals: The 800 ANSI lumens are sufficient to illuminate an image width of up to 246 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 164 cm.
This model dates back to 2000 and is no longer part of 3M's current product range.
Display Type 3 x 0,7" LCD TFT Panel
SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
800
Screen
267 Lux (200 cm Screen width)
Contrast 120:1 full on/off 120:1 full on/off
Black Level 6,6667 min. Lumen 2,281 min. Lumen
Offset -
Resolution SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes NTSC / NTSC 4.43 / PAL (einschl. PAL-M, N) / SECAM, PAL-60
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 130W UHB Lamp
Article Nr.: 3M 78-6969-9205-2 076401
Order Lamp
52,23 - 94,68 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Good (2.5)
Lux: 267 Lux
Contrast: 120:1
Candela pro m²: 86 cd/m²
Foot-Lamberts: 25 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual
Objective -
Throw Ratio -
Audio 1 x 1W
Connections S-Video
Cinch Video in
Cinch Stereo in
D-sub 15pin in
RS232C
Ceiling Mounting Yes, is possible.
Size WxHxD 277 x 61 x 211 mm (10,9"x2,4"x8,3") 3,57 L/dm³
Power 260W
Operating Noise 35dB
Weight 2,50 kg / 5,51 lbs.
Keystone -
Illumination -
Frequenz H-sync: 31-75 kHz
V-sync: 56-120 Hz
Foot-Lamberts 25 fL / max. 246 cm screen width
Candela m² 86 cd/m²
Features Freeze
Blank (Black Screen Button)
Kensington Slot
Remote Control with Laser Pointer and Mouse Control
Digital zoom 4x
Screen Mirroring -
In Comparison
The 3M MP 7640 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
11 Weight:
84
Contrast:
8 dB:
36
Black level:
12 Power cons.:
72
Picture Total Points:10 Projector Total Points:64
Popularity Top 100
0 popularity points in May 1 popularity points in June 3 popularity points in July 5 popularity points in August 7 popularity points in September 3 popularity points in October
Points:
3
Ranking: 6833 (From: 7741)
Live-Trend (Last 3 days)   LiveLIVE
Points: 9 +6% Trend
Optional accessories

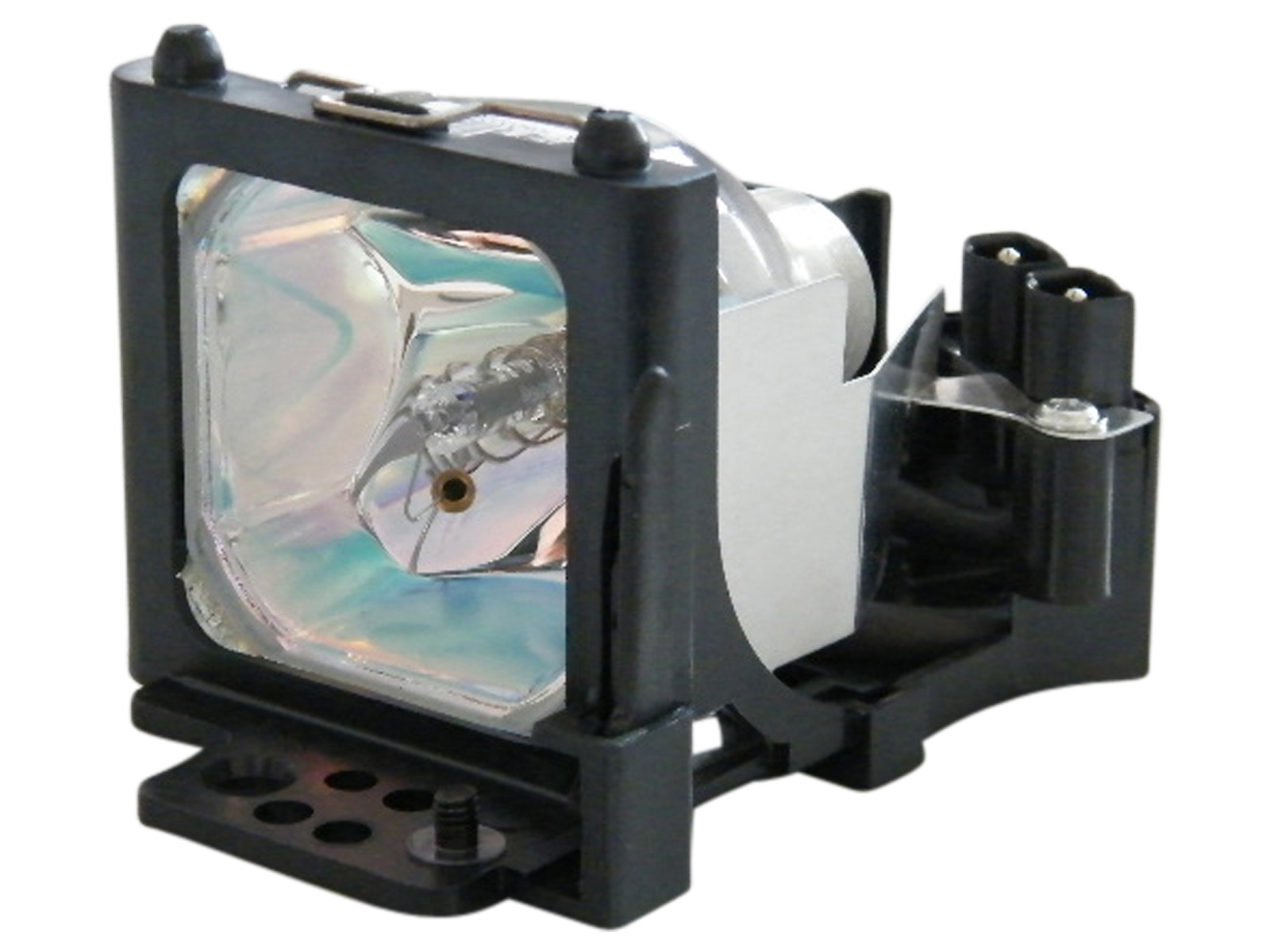

lamp ruby Ruby-LMP14094,68 €
lamp OriginalEP7640LK / 78-6969-9205-2EOL €
Compatible lamp LMP-K14052,23 €
Remote OriginalHL02881- R016F / HL03032 - R017H / HL0248325,29 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2000 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
3M Website
Product Sheet english
Product Sheet english HC
User Manual english (1.9 MB)
