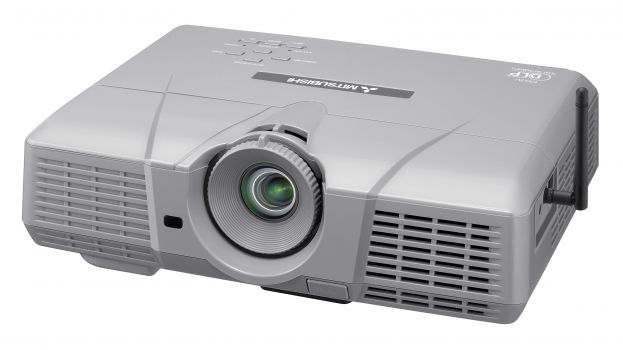

According to Mitsubishi, the EX53E model provides 3000 ANSI lumens, a contrast ratio of 2000:1 alongside a XGA 1024 x 768 resolution. The manufacturer lists the lamp life at 2000 hours. A look at the light output reveals: The 3000 ANSI lumens are sufficient to illuminate an image width of up to 477 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 318 cm. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2008 and is officially no longer distributed by Mitsubishi.
Display Type
1 x 0,55" 12 Grad DDP2230 LVDS DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3000 / 2250 im Eco Mode
Screen
1000 Lux (200 cm Screen width)
Contrast
2000:1 full on/off
2000:1 full on/off
Black Level
1,5000 min. Lumen
0,501 min. Lumen
Offset
57% 11 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel SXGA 1280 x 1024 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source
230 / 180W im Eco Mode Lamp Article Nr.: VLT-XD520LP
Freeze
