Mitsubishi XD20


Mitsubishi LVP XD20 | Mitsubishi XD20A MINI MITS
Image Mitsubishi XD20
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The equipment of the Mitsubishi XD20 projector includes 1000 ANSI lumens and a XGA 1024 x 768 display. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary.
A look at the light output reveals: The 1000 ANSI lumens are sufficient to illuminate an image width of up to 275 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 183 cm.
The projector was released in 2001 and is officially no longer distributed by Mitsubishi.
Display Type 1 x 0,7" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1000
Screen
333 Lux (200 cm Screen width)
Contrast - -
Black Level - -
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.

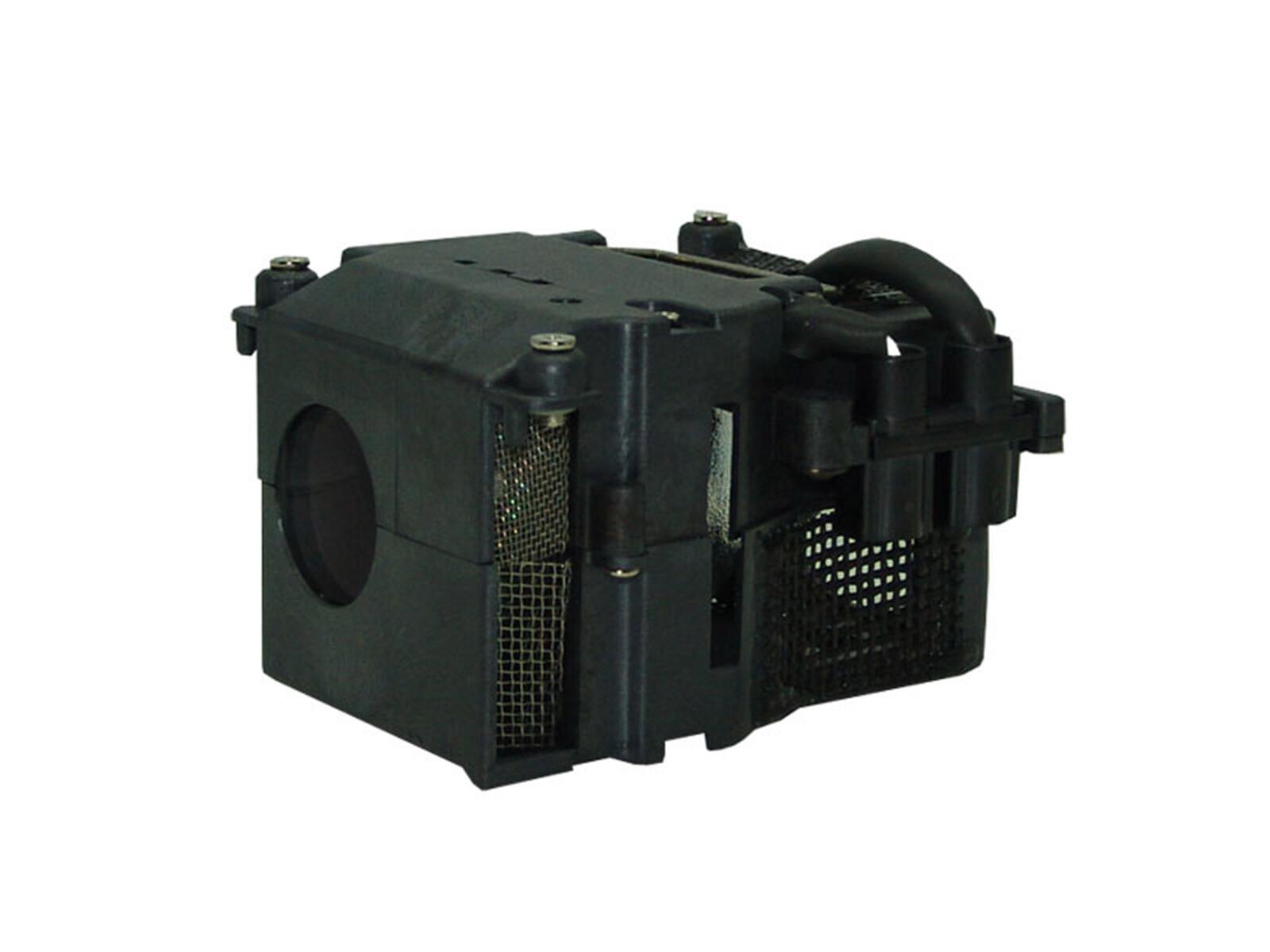

Light Source 130W high-performance compact lamp Lamp
Article Nr.: VLT-XD20LP
Order Lamp
61,58 - 103,24 €
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Good (1.8)
394 - 464 cm
Lux: 333 Lux
Contrast:
Candela pro m²: 106 cd/m²
Foot-Lamberts: 31 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,18
Objective F=2,4-2,6 f=28-33 mm
Throw Ratio 1,97-2,32:1 show
Audio 1W Mono
Connections RGB/YCbCr: HD D-sub 15pin x 1,
Audio (RGB/Video): Stereo Mini Jack x 1,
Composite Video: RCA x 1, S-Video: Mini DIN 4 pin x 1
Maus: mini DIN 9-pin x 1
Ceiling Mounting Yes, is possible.
Size WxHxD 230 x 48 x 177 mm (9,1"x1,9"x7") 1,95 L/dm³
Power 180W
Keystone

Not
possible
+
+
SCREEN

Not
possible

Operating Noise 36dB
Weight 1,50 kg / 3,31 lbs.
Keystone Vertical
Illumination -
Frequenz H-sync: 15-91 kHz
V-sync: 50-85 Hz
Range max.: 157 MHz
Foot-Lamberts 31 fL / max. 275 cm screen width
Candela m² 106 cd/m²
Features Freeze
Kensington Slot
Remote Control with Mouse Control
Faroudja DCDi
Digital Zoom
RGBW Colour Wheel
Faroudja De-interlacer
Screen Mirroring -
In Comparison
The Mitsubishi XD20 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
14 Weight:
100
Contrast: - dB:
33
Black level: - Power cons.:
81
Picture Total Points:- Projector Total Points:71
Popularity Top 100
1 popularity points in May 1 popularity points in June 8 popularity points in July 9 popularity points in August 11 popularity points in September 8 popularity points in October
Points:
8
Ranking: 2885 (From: 7741)
Live-Trend (Last 3 days)   LiveLIVE
Points: 3 -5% Trend
Optional accessories
lamp ruby Ruby-LMP2391103,24 €
lamp OriginalVLT-XD20LPEOL €
Compatible lamp LMP-K239161,58 €
Universal Remote Fernb-uni-V322,31 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2001 Discontinued (EOL) // Last update of the data: 2026-06-09
