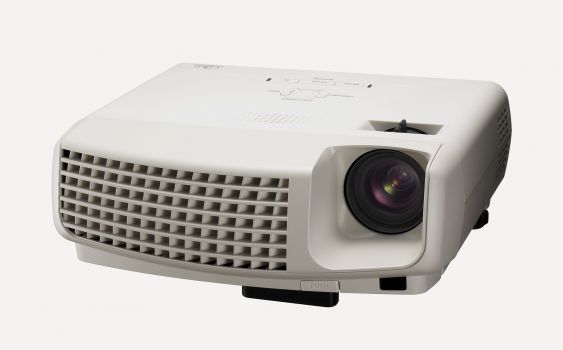

Designed for the Standard-Portabel sector, the SD430U model from Mitsubishi features 2500 ANSI lumens, a native SVGA 800 x 600 resolution and a contrast ratio of 2000:1. According to Mitsubishi, the included lamp lasts up to 2000 hours. A look at the light output reveals: The 2500 ANSI lumens are sufficient to illuminate an image width of up to 435 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 290 cm. This model dates back to 2006 and is no longer part of Mitsubishi's current product range.
Display Type
1 x 0,55" DDR DDP2000 DLP Chip SVGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2500
Screen
833 Lux (200 cm Screen width)
Contrast
2000:1 full on/off
2000:1 full on/off
Black Level
1,2500 min. Lumen
0,417 min. Lumen
Offset
64,5% 22 cm over screen top edge →
SCREEN
+Projector
Resolution
SVGA 800 x 600
480.000 Pixel XGA 1024 x 768 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Light Source
230 / 184W im Eco Mode Lamp Article Nr.: VLT-XD430LP
