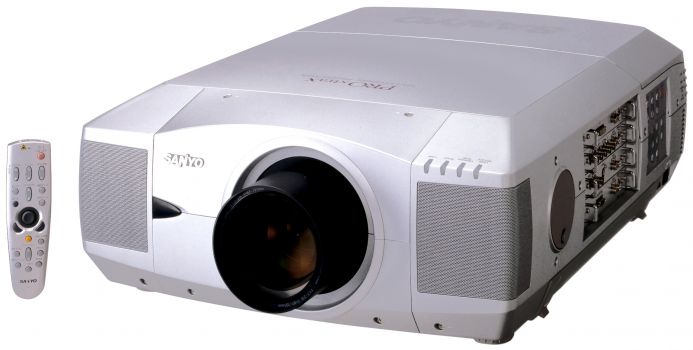

A projector from Sanyo is the PLC XF45, whose LCD model delivers 10000 ANSI lumens, a resolution of XGA 1024 x 768 and a contrast of 1100:1. According to Sanyo, the lamp has a durability of 2000 hours. To facilitate room installation, the device is equipped with mechanical lens shift and additional keystone correction, allowing the projected image to be positioned with immense flexibility. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Lens Calculator. A look at the light output reveals: The 10000 ANSI lumens are sufficient to illuminate an image width of up to 871 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 581 cm. The projector was released in 2003 and is officially no longer distributed by Sanyo. In our projector directory, the device still generates high interest.
Display Type
3 x 1,8 LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3333 Lux
Contrast:
1100:1
Candela pro m²:
1062 cd/m²
Foot-Lamberts:
310 fL
75 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
3W Stereo
Connections
1 x DVI
1 x Audio RCA x 2
Computer 2 / Video
5 x BNC / YUV
1 x Audio RCA x 2
1 x BNC Video/YC
1 x S-Video
1 x Audioaus. Eingang RCA x 2
1 x USB
Control Port x 2
RS232C
Ceiling Mounting
Yes, is possible.
Power
1500W
Size WxHxD
581 x 251 x 791 mm (22,9"x9,9"x31,1") 115,35 L/dm³
Operating Noise
46dB
Shift: 75 cm
Shift: 20 cm
Shift: 20 cm
Shift: 75 cm
Weight
37,50 kg / 82,67 lbs.
Keystone
Vert.: +/-40°
Illumination
85%
Frequenz
H-sync: 15-120 kHz V-sync: 50-120 Hz Range max.: 230 MHz
Lens shift Funktion maximal Freeze Kensington Slot Gamma correction Remote control with laser pointer und mouse control Optional LAN network compatible. Adapts to all mains voltages. 10-bit digital gamma correction
Lens shift Funktion maximal
Sanyo Website
Bemaßung in inch
