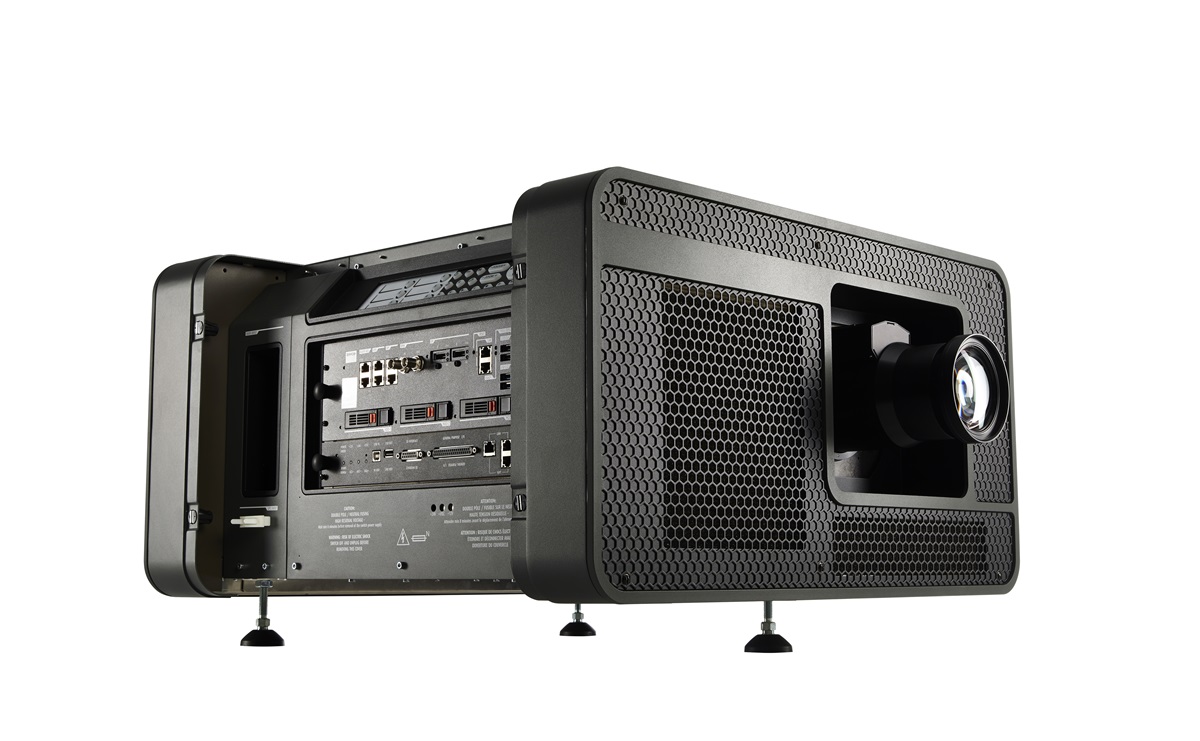

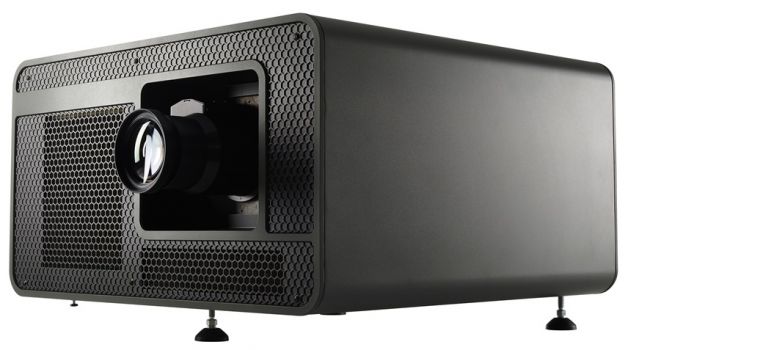

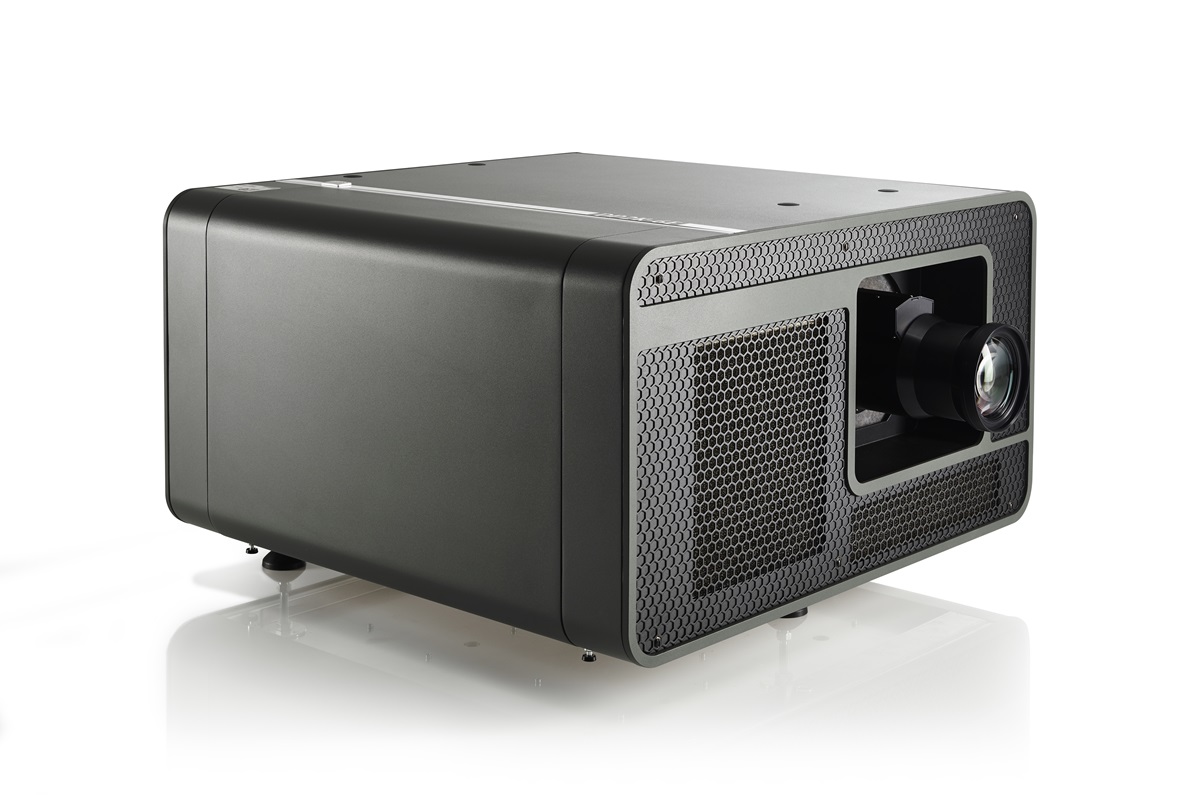

Based on DLP technology, the Barco DP2K-6E projects images in a E-Cinema environment, with technical specs listing 4800 ANSI lumens, a contrast of 1600:1 and a HD2K 2048 x 1080 resolution. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Projector Calculator is available to calculate the exact dimensions. A look at the light output reveals: The 4800 ANSI lumens are sufficient to illuminate an image width of up to 603 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 402 cm. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2019 and is officially no longer distributed by Barco. This model continues to hold a solid place in our database search queries.
Display Type
3 x 0,69" DLP Chip HD2K 4/3 Ti Digital Light Processing Chip
Calculated brightness quality The screen width may also be larger. Perfect
Lux:
1600 Lux
Contrast:
1600:1
Candela pro m²:
511 cd/m²
Foot-Lamberts:
149 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
3 x RJ45
8 x GPIO
3D
USB
DCI 4K 2D bis zu 60 fps*
DCI 4K 3D (24 oder 30 fps pro Auge)*
DCI High Frame Rates, 2K, 3D mit bis zu 120 fps (60 fps pro Auge)
JPEG 2000-Bitraten von bis zu 625 MBit/s
2-Kanal-Farbkorrektur
MPEG-2 (4:2:0 und 4:2:2 bis zu 60 fps)
2x HDMI2.0a (bis zu 4K 2D 60 fps)
2x 3G-SDI-Eingänge
16x AES/EBU-Audiokanäle (2x RJ45)
8x GPI, 8x GPO (4x RJ45)
2x Gbe für Content Connectivity und Einspielung
2x vorderseitige USB 3.0-Anschlüsse für schnelle Einspielung
2x vorderseitige USB 2.0-Anschlüsse
Video-Watermarking: Civolution NexGuard
Ceiling Mounting
-
Power
-
Size WxHxD
689 x 369 x 664 mm (27,1"x14,5"x26,1") 168,82 L/dm³
Eco Mode
Barco Website
Product Sheet english HC
