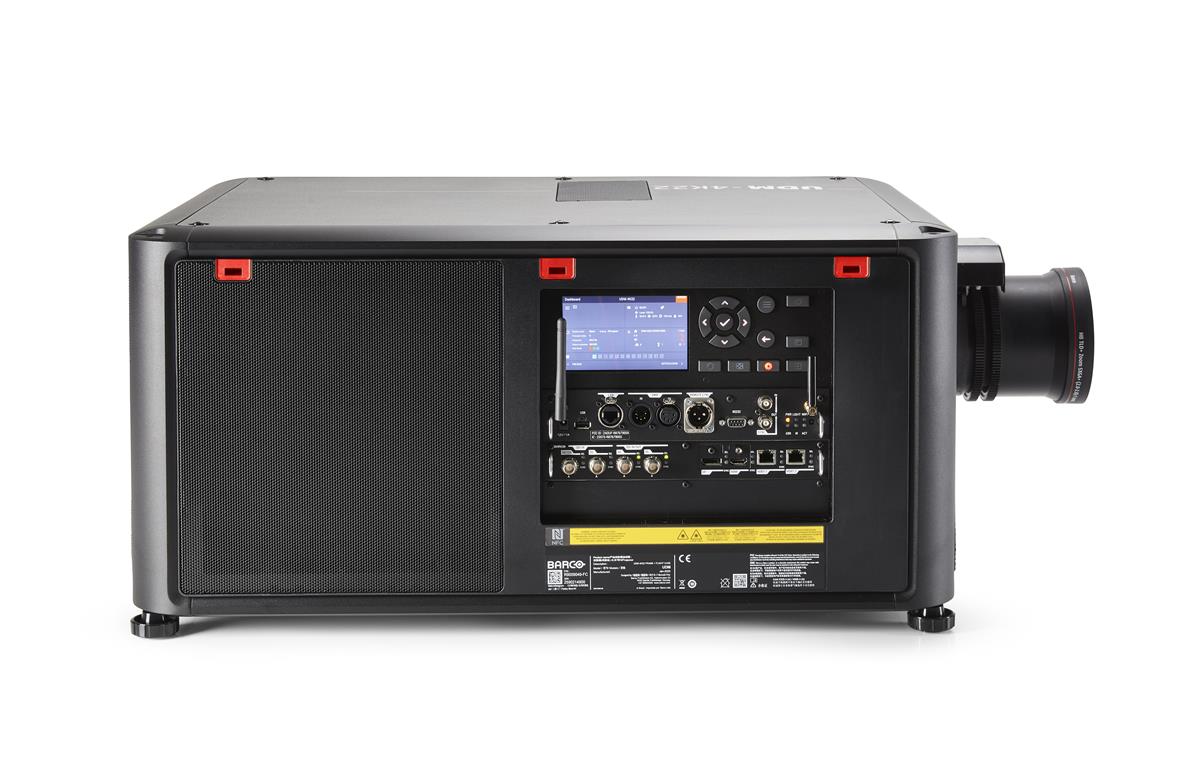

The basic data of the Barco UDM-W30 includes 26000 ANSI lumens, a resolution of WUXGA 1920 x 1200 as well as a contrast of 2200:1. This is a laser projector with a light source designed to last for 20000 hours, covering an estimated 13.7 years based on a 4-hour daily runtime. In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Distance Calculator. Looking at practical performance, up to 1638 cm can be illuminated with 26000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 1092 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D, and also offers the technical capability for 360° projection. As an additional feature, an integrated media player enables the direct playback of files without an external source device. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs.
Display Type
3 x 0,96" UHD-3-Chip-DLP WUXGA 16/9 Ti Digital Light Processing Chip
WUXGA 1920 x 1200
2.304.000 Pixel UHD (4K2K+) 3840 x 2400 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p Media player formats: 24hz to 120 Hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240hz WQXGA (2560 x 1600)
3D Compatibility
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) | 2D-zu-3D Video Converter
Application
Event | Very large screen width and rooms with plenty of light and shaded daylight.
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
11556 Lux
Contrast:
2200:1
Candela pro m²:
3680 cd/m²
Foot-Lamberts:
1074 fL
146 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-

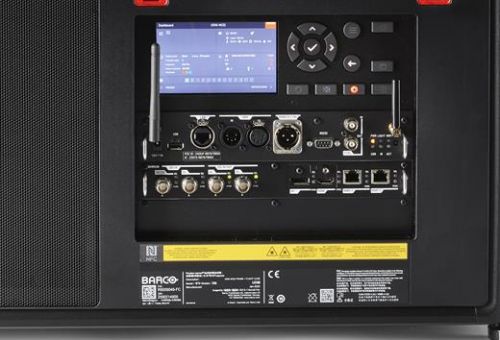

Connections
2x HDBaseT
HDMI2.0 (HDCP2.2, HDR10)
DP 1.2 (HDCP1.3)
Quad 3G/12G SDI
BarcoLink ULTRA
Quad DP1.2
Glasfaser-SFP
RS232C Din 9 pin in
DMX in und out
XLR-drahtgestützt Fernbedienung
RJ45 Lan
Ceiling Mounting
Yes, is possible.
Power
1900W
Size WxHxD
725 x 339 x 540 mm (28,5"x13,3"x21,3") 132,72 L/dm³
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Integrated Mediaplayer High Dynamic Range (HDR) Warping 360° installable 24/7 continuous operation capable Edge Blending Picture-in-Picture Remote control with backlight Wi-Fi network compatible. Lan network compatible. ScenergiX edge blending picture by picture - two sources at the same time integrated web server Android iOS Barcolink DMX
Real Full HD 3D
