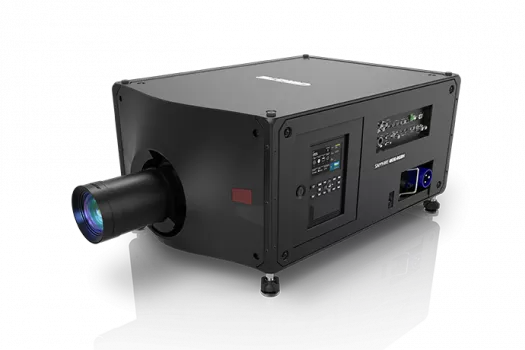

The projector Sapphire 4K40-RGBH by Christie operates as a 3D-Laser-DLP device with 36400 ANSI lumens, a UHD (4K2K) 3840 x 2160 resolution and a contrast of 2000:1. The manufacturer lists the lifespan for this model at 25000 hours. With four hours of daily operation, this corresponds to a period of 17.1 years. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Projection Calculator. Regarding projection size, the value of 36400 ANSI lumens allows for an image width of up to 1938 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 1292 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D. Furthermore, the model supports 360° projections for highly flexible deployment scenarios.
Display Type
3 x 1,38" DLP Chip UHD 16/9 Ti Digital Light Processing Chip
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom | Frame Sequential (3D Ready) | | 2D-zu-3D Video Converter
Application
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
RGB Laser Phosphor System
Light Life
25000 h. bis 50% Helligkeit
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
16178 Lux
Contrast:
2000:1
Candela pro m²:
5150 cd/m²
Foot-Lamberts:
1503 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2 x HDMI 2.1
1 x HDMI 2.0
2 x DisplayPort 1.4
2 x DisplayPort 1.2
4 x 12G-SDI (full-size BNC)
SDVoE (Christie Terra®)
Christie Link 1 input/1 output (2x Fiber/QSFP+)
Power Connector :IEC60309 30 A
Real Full HD 3D Full HD 1080P compatible Warping 360° installable Edge Blending Lan network compatible. Christie TruLife+TM electronics, 1.2Gpx/s Refresh Rate: 120Hz @ native 4K Christie TwistTM Twist Premium and Twist Pro Christie MystiqueTM Lite ILS4 Optics Christie Conductor Christie LiteLOC
Real Full HD 3D
